Home > Packaging & Printing > Packing Machinery > Sealing Machine > JOIE JEV-420G Automatic Vertical Packaging Machine Combine 10 Heads Dimple Scale
JOIE JEV-420G Automatic Vertical Packaging Machine Combine 10 Heads Dimple Scale
US$ 1,000 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Commodity, Food
Packaging Type:
Bags
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JOIE JEV-420G Automatic Vertical FFS Small Snack Food Plantain Pringles Crisps Packaging Machine Withmultihead WeigherUS$ 1,000 - 3,000MOQ: 1 Set -
JOIE Automatic Vertical Cookies Packaging MachineUS$ 1,000 - 3,000MOQ: 1 Set
-
JOIE JEV-280L Automatic Sachet Water Filling Packaging Machine Manufacture PriceUS$ 1,000 - 2,000MOQ: 1 Set
-
JOIE JEV-280L Automatic Sachet Sauce Filling Packaging Machine Manufacture PriceUS$ 1,000 - 2,000MOQ: 1 Set
-
Automatic Cheese Filling MachineUS$ 1,000 - 3,000MOQ: 1 Set
Condition
New
Application
Commodity, Food
Packaging Type
Bags
Packaging Material
Plastic, Other, Plastic, film
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220V
Power
5.5
Place of Origin
Zhejiang, China
Brand Name
JOIE
Model Number
JEV-420G
Dimension(L*W*H)
1500*1220*1800mm
Weight
600kg
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
JOIE JEV-420G Automatic vertical packaging machine combine 10 heads dimple scale
1. Application
JEV series packing machine is filling,bag forming,sealing and cutting in same time,use the compound packing material and widely use in different field.
sutable to pack various kinds of granule products, like sugar, salt, peanut, round candy, sunflower seed. popcorn,chicken essence, peanut, Fish Food ,Pigeon Food ,Dog Food, puff snack food, potato chips, crispy rice, jelly, apple chips, dumpling, small cookie, dry fruit , melon seeds, roasted seeds and nuts, medical material, deepfrozen food, yeast,Meatball,bean, drier, vegetable seeds, sugar, salt, tea, grains, balls,hardware items,redbayberry, block, spherical, sunflower seeds, radix isatidis almond,sesame,corn,coal,turmeric,crystal meat,chili ,chemical,,pharmacy,cocoa,sesame seed
2.Sample bags
3.Main performance
- EQUIPPED WITH SIEMENS TOUCH SCREEN AND SEIMENS PLC
- Can automatically complete a series of actions,such as bag macking,counting,filling,sealing,separated cutting of easily-torn cut,separating connecting and packed products conveying.
- sutable for packing of foodstuff ,chemical products,medicine and seasoning
- Pneumatic control,easy to operate,remove and clean.
- stable and quite working environment
- Bag-making system adopts step motor with high precision(error is less than 1mm).
- Contact part :SUS 316L ,other part SUS 304
- Adjustable bag former,packing more conveniently.
- High accuracy cup measuring system ,ideal filling machine for powder
- Can match with other equiments, such as automatic loading system , headsweigher ,supporting platform , product conveyor ,save labor cost.
4.Technical Parameter
| Model | JEV-420G |
| Bag-making length | 100-380mm |
| Bag-making width | 75130mm |
| Packing film width | 80-420mm |
| Packing capacity | 3-30 / 30-1000 grams |
| Packing speed | 30-60 bags/minute |
| Power | 2.5kw |
| Overall Dimension | 1500*1220*1800mm |
| Weight | 300kg |

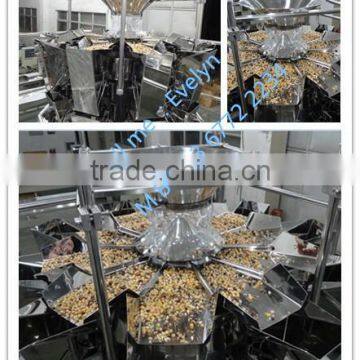

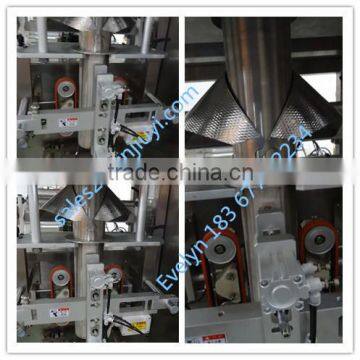

5.Machine view and details

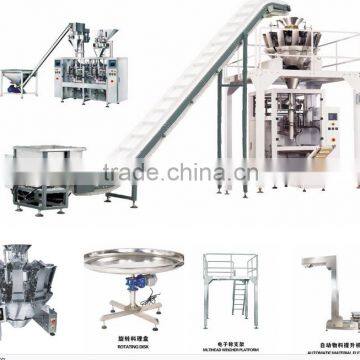

Other option devices
