MJQ6128A Table Saw For Cutting Wood
Factory workshop detail:
Our office environment:
USE AND APPLICABILITY RANGE OF THE MACHINE:
The machine is suitable for precisely cutting off materials of the laminating board,flake board,MDF board,plyboard and woodbased panel board and the plastic board,bakelite plank,PVC,aluminium alloy etc.
It is the necessary precision panel equipment in the composite furniture manufacture and architecture decoration line
MAIN SPECIFICATION AND TECHINOLOGY PARAMETER
MODEL |
MJQ6128A |
Slide worktable max distance |
3000mm |
Max processing length |
2800mm |
Max processing thickness |
70mm |
Main saw blade dimension(max) |
Φ305×Φ30mm |
Groove- saw blade dimension |
Φ120×Φ22mm |
Main saw arbor rotary speed |
4000,5000r/min |
Groove- saw arbor rotary speed |
8600r/min |
Main saw motor power/Voltage frequency |
5.5kw(7HP)/380V 50Hz |
Groove saw motor power/Voltage frequency |
0.75kw(1HP)/380V 50HZ |
Weight of machine |
900kg |
Overall dimension(L×W×H) |
2900×3080×1150mm |
Dust-collecting mouth external diameter |
Φ100mm(4")mm |
Strengths:
1.Guide rail of mobile workbench is made of imported chrome plated round stick with high rating accuracy;
2.Surface of mobile workbench is made of high intensity extruding aluminum alloy with high intensity and no
deformable performance
3.With oxidation treatment, movable table surface is beautiful and hardwearing
4.We make the machine aggravating in order to improve equipment stability and is much heavier than
ordinary ones and running more stable
5.High precision and can reach 0.005mm. And the cutting surface is smoother without jagged
6.self-developed high quality saw blade,glossy,neat
7.light- weight and reliable spindle bearing and lifting system
8.2 saws, main saw and scoring saw
9.quality bearing with high rigid and long working life, 4 years at least
10. Motor with overload protection, 5.5*1.1kw motor power ,bigger than other supplier,
they almost adopt 5.5+0.75 or less.enough power can make sure the best cutting effect

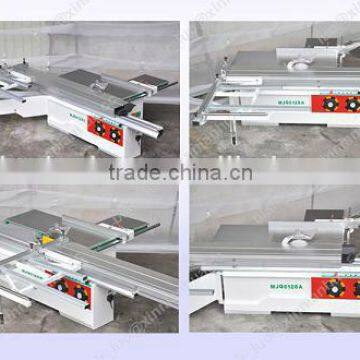

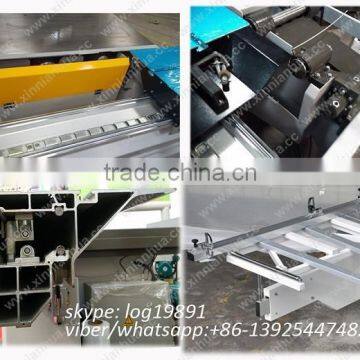

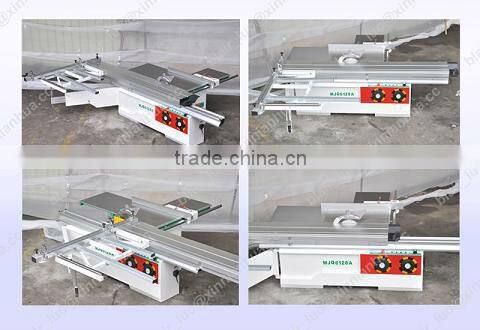

Pictures of machine:
Some Samples Products:
Our strong delivery team:
If still have any question,please contact us freely for more details, we are glad to provide and answer it.
Contact Info:
Thank you for your attention!!
