JOIE Automatic Grade Cosmetics Paste Face Cream Toothpaste Tubes Filling and Sealing Machine
- Shanghai/Ningbo
- T/T Credit Card
You May Like
-
JOIE Cosmetics Paste Facial Cream Toothpaste Tubes Filler and Sealer Machine Quality Choice
-
JOIE Pedal Impluse Sealer/foot Pedal Heat Sealer/heat Sealer for Aluminum Foil Plastic Bags
-
JOIE High Property and Excellent Pedal Direct Sealer
-
HAND IMPULSE SEALER WITH MIDDLE CUTTER
-
JOIE Hand Impulse Sealer With Middle Cutter
-
Automatic KBT3048 Blister Packing Machine
Product Details
| Condition | New | Application | Beverage, Chemical, Commodity, Food, Medical, Other, Commodity, Medical, Chemical, Beverage, Chemical, Commodity, Food, Medical, cosmetic, Commodity,Medical,Chemical ,Cosmetic | |
| Packaging Type | Other, tube | Packaging Material | Metal, Plastic, Other, Plastic, Metal, Metal, Plastic, laminnate, Plastic,Metal ,Composite,Aluminum | |
| Automatic Grade | Automatic | Driven Type | Pneumatic | |
| Voltage | 220V/380V | Power | 1.1KW | |
| Place of Origin | Zhejiang, China | Brand Name | JOIE | |
| Model Number | JEF-60 | Dimension(L*W*H) | 1900*1000*1950 | |
| Weight | 1000KGS | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
JOIE Automatic Grade Cosmetics Paste Face Cream Toothpaste Tubes filling and sealing machine
1.Product describtion
widely used in industry of toothpaste, daily chemical, cosmetic, drugs and food etc.,
2.Appilicate:
Applicable in various aluminum-plastic-compound-soft-tube, plastic-soft-tube which fill-pack all kinds of industry ,pharmaceutics,foodstuffs ,cosmetic,daily chemicals (toothpaste, cream, latex, lotion, oil , water ,ketchup , paste food ,hair-dyeing paste ,art palette
3.Tube types
plastic tubes,aluminum tube, plastic-aluminum tube ,composite tube
4.Video link for machine
5.Optonal device
Airproof hopper, Heating hopper, and Auto-feed etc
6.Technical parameter:
| Volta | AC 220V/50HZ± 10o/ck |
| Heating power | Main is 3KW (electric heating). |
| Motor power | 1.1KW |
| Filling volume | 5-250ml(tube) |
| Filling accuracy | <1% |
| Capacity | 1800-2400(tubes /h Adjustable) |
| Tube diameter | 10-50mm |
| Tube length | 210mm (Max. Length) |
| Hopper volume | 40 L |
| Compressed Air pressure | 0.6Mpa/ square centimeters |
| Dimension (LxW><H) | 1900x1000x1950mm |
| Weight: (Approx) | 900kgs |
@:SS304,material contacted parts:SS316
@available in double filling heads,stirring system,
@tested and adjusted before delivery
@ Siemens English
@2 year guarantee period and lifetime maintenance
7.Feature:
1.SUS316L ,GMP standard
2. Siemens Touch Screen
3.Pneumatic Tube Washing & Feeding
4.Compact design, durable, and simple maintenance
5.Automatic Sensor Activated Orientation
6.Intelligent Temperature Control and Cooling Systems
7.Automatically put tubes, fill, seal, dating and load tubes.
8 Safety Interlock Shutdown when Door is Open
9.Easy to adjust with Controls
10.Fully Enclosed Safty Frame with Door Interlock
11.Fixed position machine stop
12.Adjust Filling capacity,&main machine speed easily
13.Filling head have protection against the drop system and will make sure drawbench.
14 ----CE-------
ing process:
→automatic feeding tubes
→eye mark recognition system
→automatic filling(no tube no filling)
→automatic sealing
→automatic cutting tail
→ injection of final products

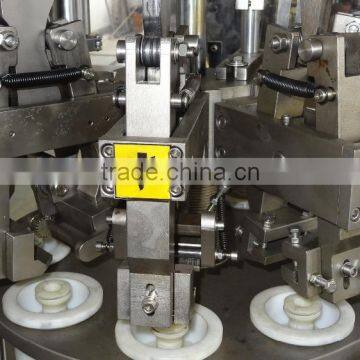

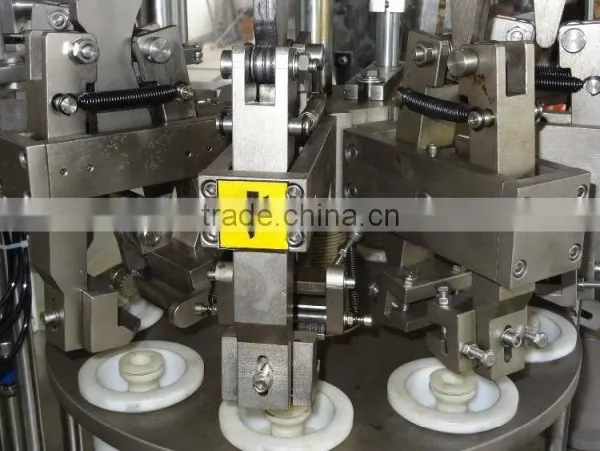

9.Product view and details
Ormon safety switch
other product Catalogue
Any query ,pls do contact us freely !!!
