Product Name:

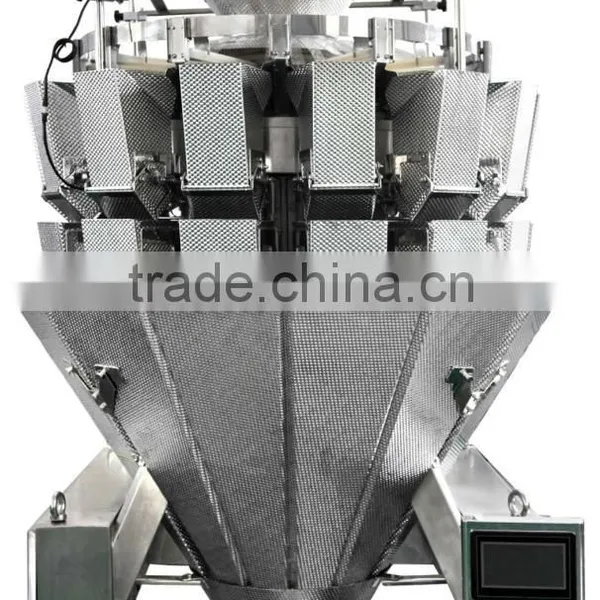

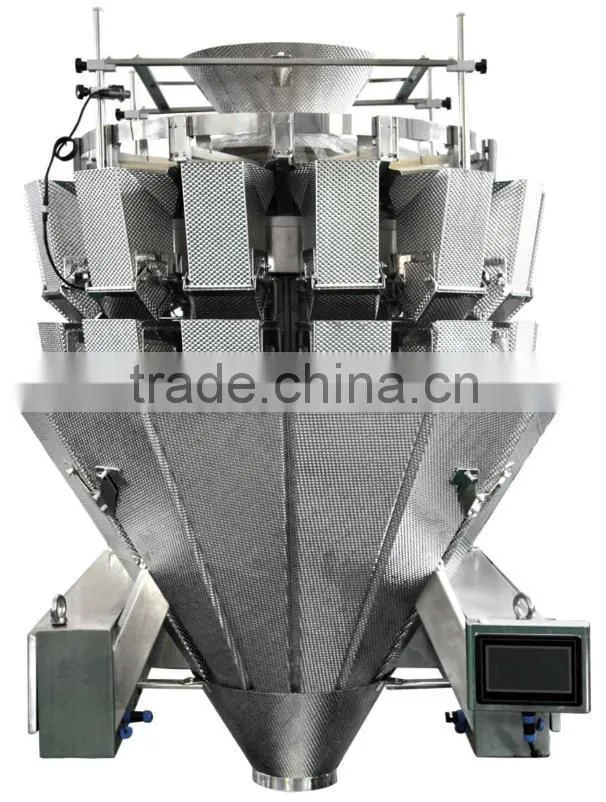

10 heads multihead weigher for soft strip rice noodle ,bean sprout with CE certification
Model: JW-A10
1. Application
* It is suitable for weighing soft strip products such as noodles, rice noodles, bean sprout,etc.
2. Features
* Program recovery function can reduce operation failures.
* No products auto pause function can improve weighing stability and accuracy.
* High-precision digital load cell.
* User-friendly help menu in touch screen contributes to easy operation.
* 100 programs capacity can meet various weighing requirement.
* Linear amplitude can be adjusted independently.
3. Mechanical Character
* Suitable for products with max 250mm length.

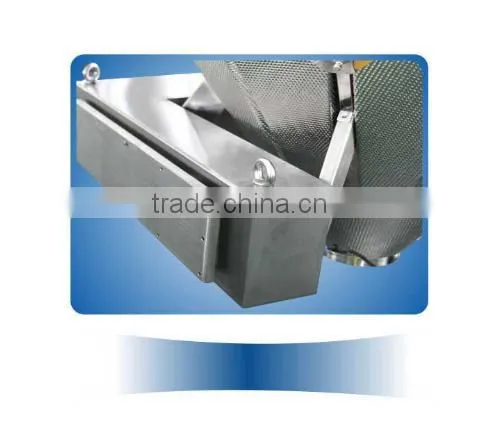

* 60 steep discharge chute makes sure products discharge smoothly.

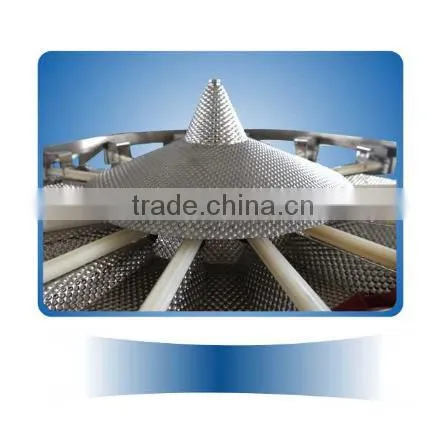

* Equipped with a specially designed central cone, rotary top cone can dispense the products into each
linear feeder pans evenly.

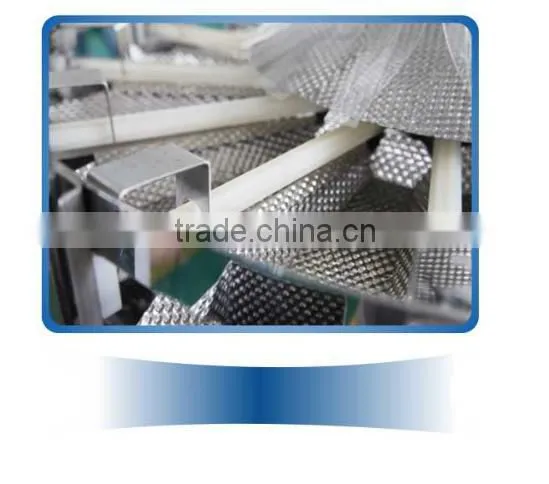

* Rotary rollers equipped between each linear feeder pan helps to dispense the long soft products into feed
hoppers.
4. Technical Specification
| Model | JW-A10 |
| Identify Code | A10-1-6 |
| Single Weighing Range | 10-500g |
| Accuracy | x(0.5) |
| Max Speed | 30 P/M |
| Hopper Volume | 2.5 L |
| Control Panel | 7.0'' Touch Screen |
| Options | Dimple Plate /Timing Hopper/Printer/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 220V/1000W/50/60HZ/10A |
| Packing Dimension(mm) | 1620(L)X1100(W)X1110(H) |
| Gross Weight | 380kg |

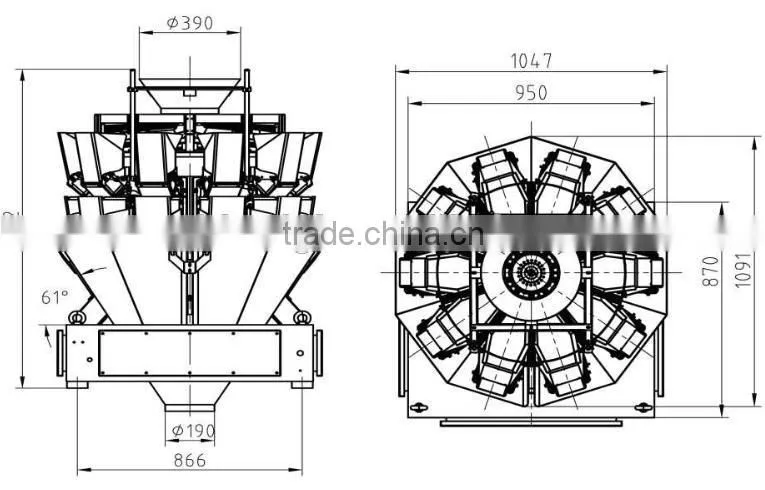

5.Deminsion
To more other combination weigher visit website:
/multihead_combination_weigher.html
/multihead_combination_weigher.html
/home/en/Product/MultiheadWeigher
/automatic_combination_weigher.html
/home/en/Product/MultiheadWeigher
/combination_weigher.html
/automatic_combination_weigher.html
CERTIFICATES:
To more other linear weigher visit website:
/linear_weigher.html
/home/en/Product/CheckingWeigher/173.html
/home/en/Product/CheckingWeigher
/VFFS_machine.html
/vertical_form_fill_seal_machine.html
/VFFS_machine.html
EXIBITONS:
To moer other food packaging machie visit website:
/food_packing_system.html
/food_packaging_system.html
/food_packing_machine.html
/food_packaging_machine.html
FACTORY MULITWEIGH:
With the development of international market, marketing and service network all over the world, we won the trust and praise of many partners and got high reputation with high quality products and well service in the field of packaging machinery. We are now selling machines to more than 80 countries.
/home/en/Product/Conveyor/Z%20Conveyor.html
/home/en/Product/Conveyor/Z_Conveyor.html
/bucket_conveyor_photos.html
/bucket_conveyor.html
With the continuous innovation, we have developed more than 20 kinds of tailor-made series machines, including counting weighers, mini weighers, V-type linear pan weigher, multi-mouth feeder weigher, noodle weighers, frozen weigher, feeding-control weigher, stick weighers, mixing weigher, salad weighers, 20 head weigher, modular linear weigher, modular check weigher, and other special devices like multi-line filling system etc. which have been widely used and meet the needs of many customers in many fields, such as food, pharmaceuticals industry, chemical industry, hardware, daily, etc. We will make unremitting efforts to help the global customers and partners to get mutual benefit and Win-win.
Our products have received the CE certificate. In the technology innovation field, we have been rewarded many times by the National and industry association, e.g. the University-industry cooperation projects award issued by nation, the packaging technology innovation award and the food industry technology innovation award issued by the industry association and the authority of the media.
For the nearly past ten years, we always insist on “Stability is the best to save” and “Professional quality, integrity management”. We will spare no effort to combine the weighing & packaging technology and the study of automation system, to create a more stable and efficient automated packaging systems and promote industrial production automation process, thus to become the most respected and innovative ability enterprises all over the world.
