High Speed 20 Head Automatic Food Mix Funtion Multihead Weigher

High Speed 20 Head Automatic Food Mix Funtion Multihead Weigher thumbnail-1
High Speed 20 Head Automatic Food Mix Funtion Multihead Weigher thumbnail-2
High Speed 20 Head Automatic Food Mix Funtion Multihead Weigher thumbnail-3
High Speed 20 Head Automatic Food Mix Funtion Multihead Weigher thumbnail-4
High Speed 20 Head Automatic Food Mix Funtion Multihead Weigher thumbnail-5
High Speed 20 Head Automatic Food Mix Funtion Multihead Weigher thumbnail-6
High Speed 20 Head Automatic Food Mix Funtion Multihead Weigher photo-1
High Speed 20 Head Automatic Food Mix Funtion Multihead Weigher photo-2
High Speed 20 Head Automatic Food Mix Funtion Multihead Weigher photo-3
High Speed 20 Head Automatic Food Mix Funtion Multihead Weigher photo-4
High Speed 20 Head Automatic Food Mix Funtion Multihead Weigher photo-5
High Speed 20 Head Automatic Food Mix Funtion Multihead Weigher photo-6
US$ 1 - 9,999,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Commodity, Food, Other, Medical, Textiles, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type:
Cartons, Case, Foil, Pouch, Stand-up Pouch
Contact Supplier Request Quote Chat Now
Zhongshan Multiweigh Packaging Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
zhongshan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Chemical, Commodity, Food, Other, Medical, Textiles, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type Cartons, Case, Foil, Pouch, Stand-up Pouch
Packaging Material Metal, Paper, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/50/60HZ/16A
Power 2000W
Place of Origin Guangdong, China
Brand Name KenWei multiweigh
Model Number JW-A20
Weight 850KG
Dimension(L*W*H) 1950(L)X1650(W)X1620(H) mm
Certification CE,SGS
After-sales Service Provided Engineers available to service machinery overseas

Product Name:   High Speed 20 Head automatic food mix funtion

                             multihead weigher

Model: JW-A20

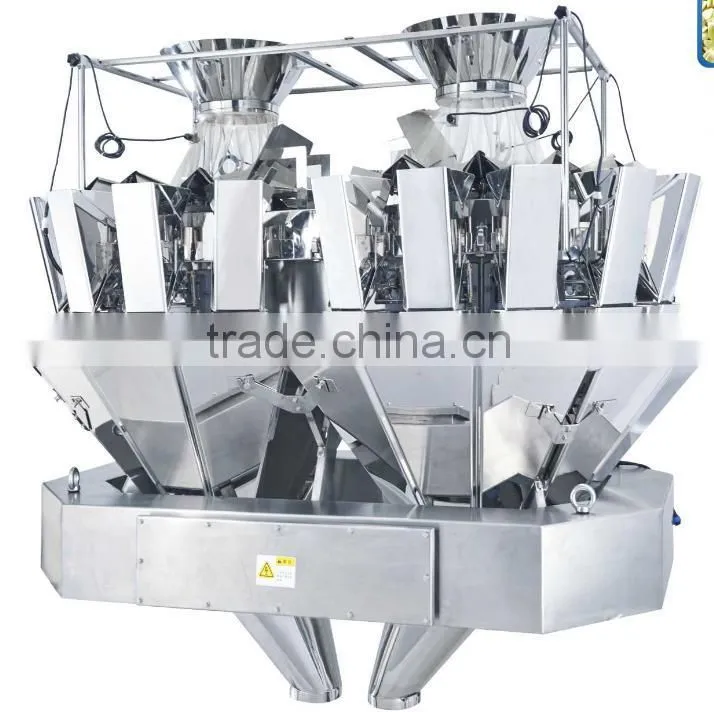

High Speed 20 Head automatic food mix funtion multihead weigher





1. Application



      * It is suitable for integrating with high speed packaging machine or mixing purpose.

 High Speed 20 Head automatic food mix funtion multihead weigher




2. Features



   *  Arc-shaped machine frame and new machine body cover, improves stability and appearance.

   *  Integral machine frame with middle standing increases the stability of machine frame and hoppers.

   * Stable actuator design makes the new hoppers work better and read weight figure quickly.

3. Mechanical Character



  *  Second generation modular control system.

  *  Standard industrial control system.

   *  Stagger dump function.

  *  Double discharging chutes to work with twin packaging machine.

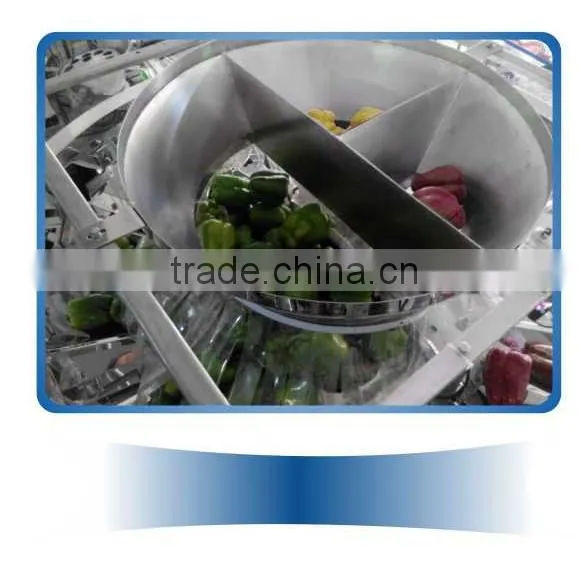

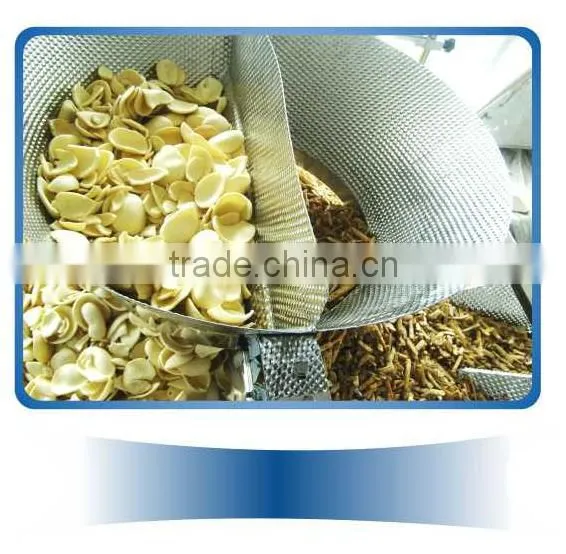

   *  Upper storage funnel is divider to weigh two different materials.





4. Technical Specification



Model JW-A20
Identify Code A20-2-1
Single Weighing Range 10-1000g
Accuracy X(0.5)
Max Speed 120 P/M
Hopper Volume 1.6/2.5 L
Control Panel 10.4 '' Touch Screen
Options Dimple Plate /Timing Hopper/Printer/Reject Device
Driving System Step Motor
Power Requirement 220V/2000W/50/60HZ/16A
Packing Dimension(mm)  1950(L)X1650(W)X1620(H)
Gross Weight 850kg

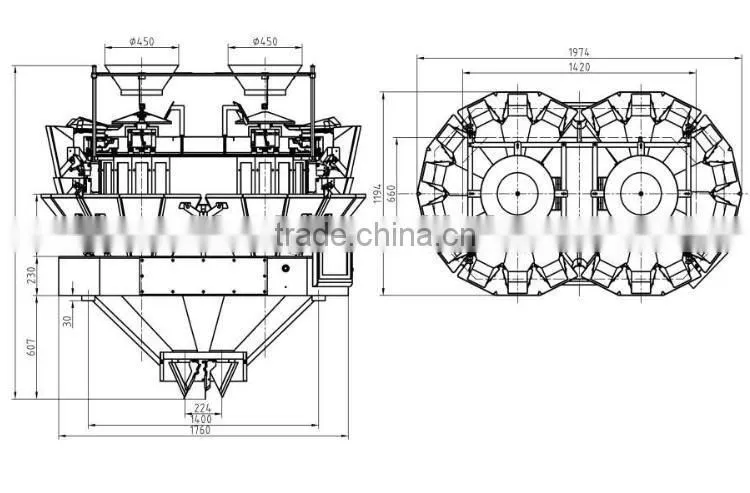

 5.Deminsion


High Speed 20 Head automatic food mix funtion multihead weigher





To more other combination weigher visit website:

/multihead_combination_weigher.html

 or

/automatic_combination_weigher.html



CERTIFICATES:





High Speed 20 Head automatic food mix funtion multihead weigher



EXIBITONS:


High Speed 20 Head automatic food mix funtion multihead weigherHigh Speed 20 Head automatic food mix funtion multihead weigher





FACTORY MULITWEIGH:


High Speed 20 Head automatic food mix funtion multihead weigherHigh Speed 20 Head automatic food mix funtion multihead weigher



High Speed 20 Head automatic food mix funtion multihead weigher


DELIVERY:


High Speed 20 Head automatic food mix funtion multihead weigherHigh Speed 20 Head automatic food mix funtion multihead weigherHigh Speed 20 Head automatic food mix funtion multihead weigher
other:
As a manufacturer, we're able to provide you with long term stable performance multihead weigher, checkweigher, linear weigher, VFFS machine, packing system, bucket conveyor, working platform, metal detector... according to your project requirements.


Multiweigh  ,WEIGH FOR YOU

WANT TO KNOW OUR NEW PRODUCTS,

PLEASE OPEN OUR COMPANY'S WEBSITE:
