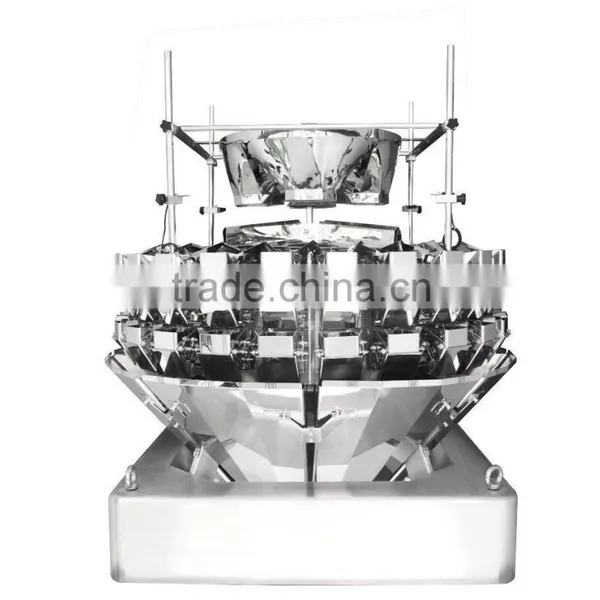

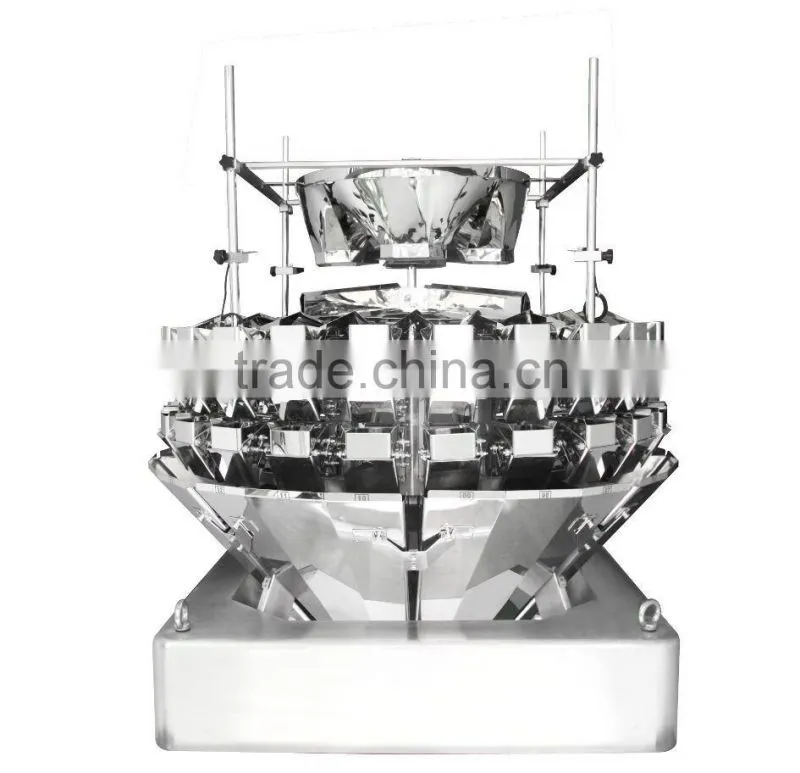

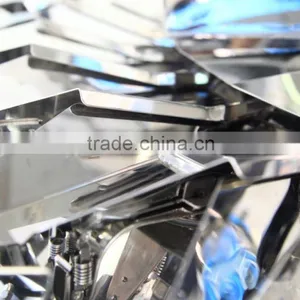

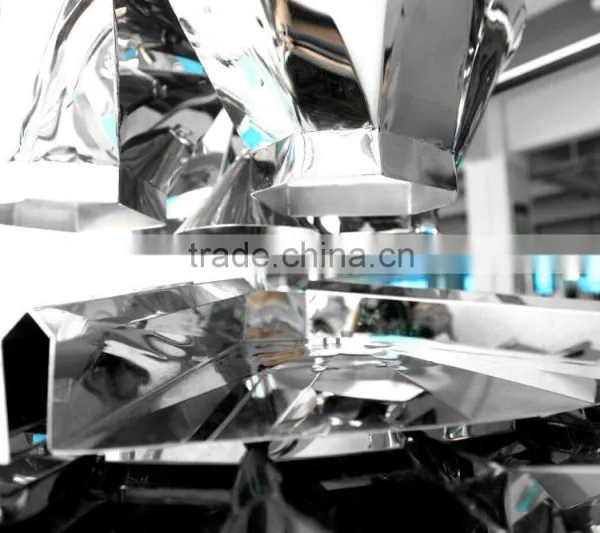

Product Name: 24 heads package machine
Model: JW-A24
1. Application
* It is suitable for weighing small granules such as herbal medicine,tea,seeds,coffee beans,chocolate,etc.
2. Features
* Universal small hopper, not only reduces the overall size of machine structure,but also enhances hopper
interchangeability with mini weigher.
* Integral machine frame with middle standing design increases the stability of machine frame and hoppers.
* Arc-shaped machine frame and new machine body cover, improves stability and appearance.
* Integral machine frame compatibility design make better exchange between single material weighing and
mixing material weighing.
3. Technical Specification
| Model | JW-A24 |
| Identify Code | A24-2-21 |
| Single Weighing Range | 2-200g |
| Accuracy | X(0.5) |
| Max Speed | 120 P/M |
| Hopper Volume | 0.3/0.5 L |
| Control Panel | 7.0'' Touch Screen |
| Options | Dimple Plate /Timing Hopper/Printer/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 220V/1500W/50/60HZ/12A |
| Packing Dimension(mm) | 1800(L)*1250(W)*1110(H) |
| Gross Weight | 490kg |
