Table Saw For Aluminum Plastic Board

Specifications

Table Saw For Aluminum Plastic Board
1.for alu-plastic board cutting
2.2 saws

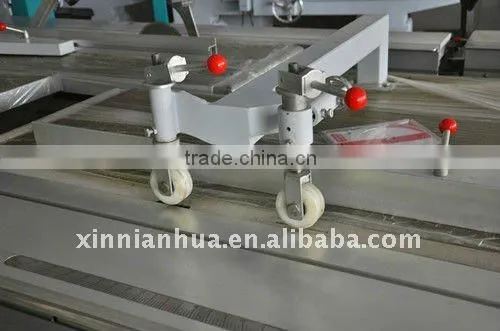

3.with press device
8.durable & attractive

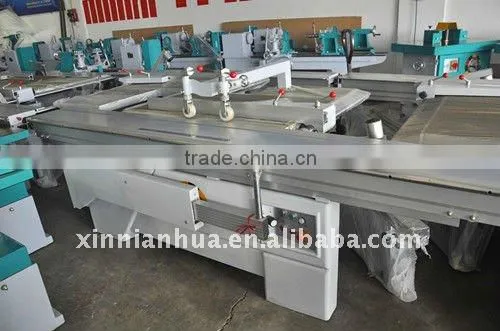

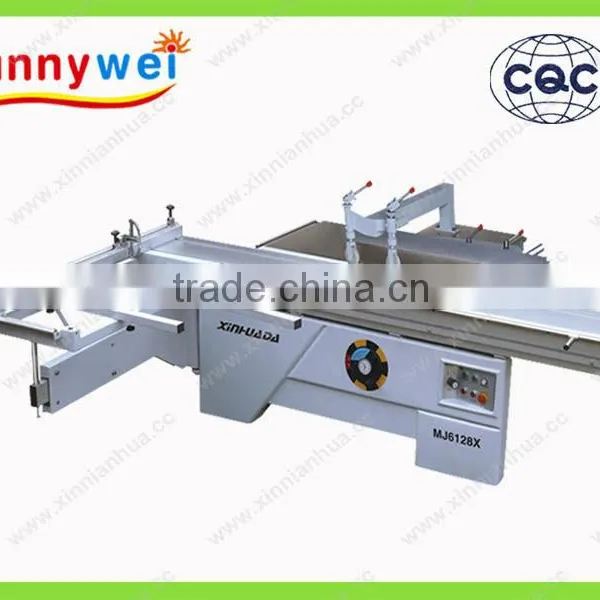

MJ6128X Table Saw For Aluminum Plastic Board



USE AND APPLICABILITY RANGE OF THE MACHINE:

The machine is suitable for precisely cutting off materials of the laminating board,flake board,MDF board,plyboard and woodbased panel board and the plastic board,bakelite plank,PVC,aluminium alloy etc.

It is the necessary precision panel equipment in the composite furniture manufacture and architecture decoration line





MAIN SPECIFICATION AND TECHINOLOGY PARAMETER:



Slide worktable max distance		3000mm
Max sawing length		2800mm
Max sawing thickness		70mm
Milling cutter dimension		Φ160×9×Φ25.4mm
Main saw blade dimension		Φ305×Φ30mm
Groove saw blade dimension		Φ150×2.2×Φ25.4mm
The rotary speed of milling cutter(Main saw arbor)		3800,4700r/min
The rotary speed of groove saw arbor		4300r/min
Motor power of milling cutter(Main saw)/Voltage frequency		4kw(5.5HP)380V/ 2.2kw(3HP)220V(single-phase)
Motor power of groove saw/Voltage frequency		0.75kw(1HP)380V/2.2kw(3HP)220V(single-phase)
Weight of machine		900kg
Overall dimension(L×W×H)		2900×3080×1150mm
Dust-collecting mouth external diameter		Φ100(4")mm
Note	Rotary speed of main saw arbor (fits aluminum plastic board  processing)	3800 r/min
	Rotary speed of main saw arbor (fits wooden products processing)	4700 r/min



















































Strengths:



1.bakelite double-slide,aluminium alloy  pulley structure with high precision ,spindle bearing and lifting system



2.high quality of the spindle bearing and lifting system



3.movable slide worktable ,high precision



4.safty and long service time



5.stable running,easy to operate,working exactly



6.self-developed high quality saw blade,glossy,neat



7. light- weight and reliable spindle bearing and lifting system
