Automatic Paste Filling Machine JEF-60

Automatic Paste Filling Machine JEF-60 photo-1
Automatic Paste Filling Machine JEF-60 photo-2

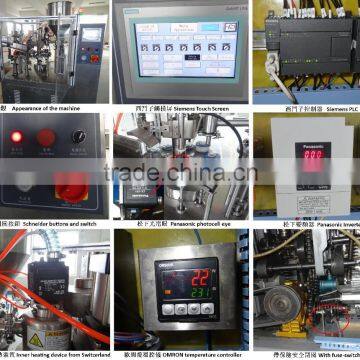

Automatic Paste Filling Machine JEF-60 photo-3
US$ 13,000 - 14,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Commodity
Packaging Type:
Cans, Capsule
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo/Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Commodity
Packaging Type Cans, Capsule
Packaging Material Metal, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage AC 220V/50HZ± 10o/ck
Power 3KW
Place of Origin Zhejiang, China
Brand Name JOIE
Model Number JEF-60
Dimension(L*W*H) 1900x1000x1950mm
Weight 900kg
Certification CE&ISO9000-2001
After-sales Service Provided Engineers available to service machinery overseas



Company Information

automatic paste filling machine JEF-60

automatic paste filling machine JEF-60



Product Description



  JEF-60  Plastic/Aluminum Automatic Tube  Filling and Sealing Machine




Characteristics:



1.high precision of the system and reduce the tube body and color mark off color range.



2. automatic completion for the tube, for standard, inert filling temperature table body (optional), filling, sealing, code, the whole process of the finished product output.



3.can match a variety of different specifications of the filling head, adjust the quick and accurate (more than meet the specification, the viscosity of product production).


4, machine, light, electricity, gas integration, real, no tube no filling for tube does not reach the designated position, depression, automatic display (alarm); Opened the door to a variety of functions such as automatic stop.



5. suitable for tomato sauce, peanut butter, honey, oil, juice, beverage, detergent, fertilizer, pesticides, ointments, adhesives, skin creams, hair dyes, shoe polish, toothpaste and other liquid or paste filling and sealing materials.



Machine details

filling and sealing machine Technical Parameter





Volta AC 220V/50HZ± 10o/ck
Heating power Main is 3KW (electric heating).
Motor power 1.1KW
Filling volume 5-250ml(tube)
Filling accuracy <1%
Capacity 1800-2400(tubes /h Adjustable)
Tube diameter 10-50mm
Tube length 210mm (Max. Length)
Hopper volume 40 L
Compressed Air pressure 0.6Mpa/ square centimeters
Dimension (LxW><H) 1900x1000x1950mm
Weight: (Approx) 900kgs
