Motorized Water Pump
- Ningbo China
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Veritas Tech | |
| Model Number | WP-AS-M | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Motorized | Pressure | Low Pressure | |
| Application | Fire |
Product Description

Company Profiles
Veritas Tech, registered in Texas, USA, set up its operational center in Ningbo Free Trade Zone (in Beilun Seaport, the second largest seaport in China) in year 2002.
Veritas Tech is the largest manufacturer for water truck parts in China, it designs and manufactures a full range of water truck parts, such as water hose reel water pump, valves, spray heads, hose reel, control systems, water cannons, water tank and other fittings.Veritas Tech is ISO9001:2008 certificated.

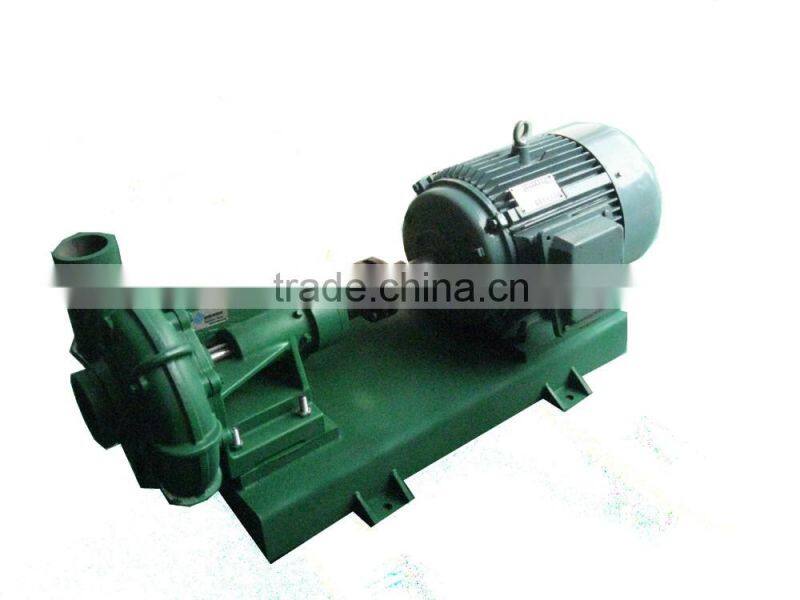

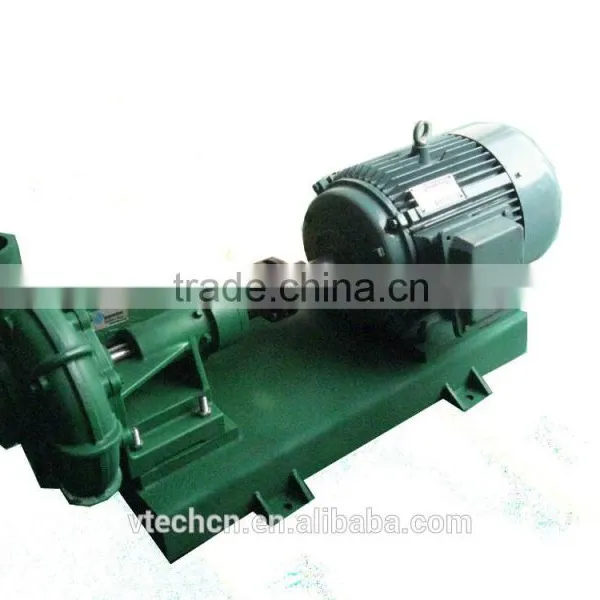

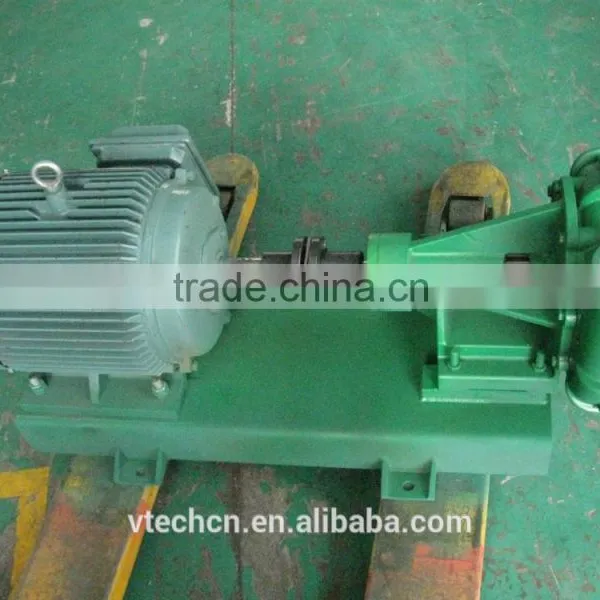

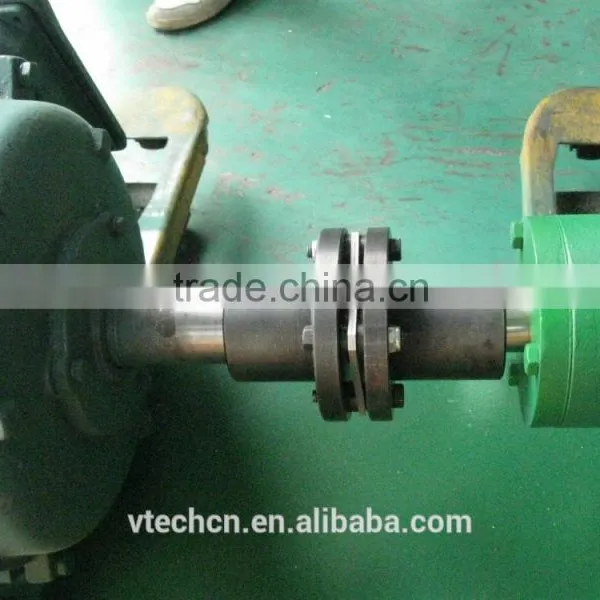

Motorized Water Pump
Features:
ü Material: aluminum material specifically so that the water pump is light weighted and easy to manufacture
ü Parts: the shaft is made of stainless steel; the impeller is manufactured within the tolerance of 0.001”; the bearing and mechanical seal are of the first-class quality
ü Fine Property: every part within the pump is carefully designed so that they can work together well and guarantee fine property
ü Quiet: the water pump makes low noise during work because of our thoughtful design

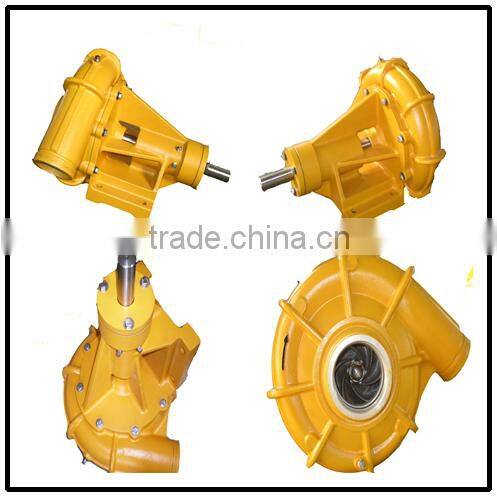

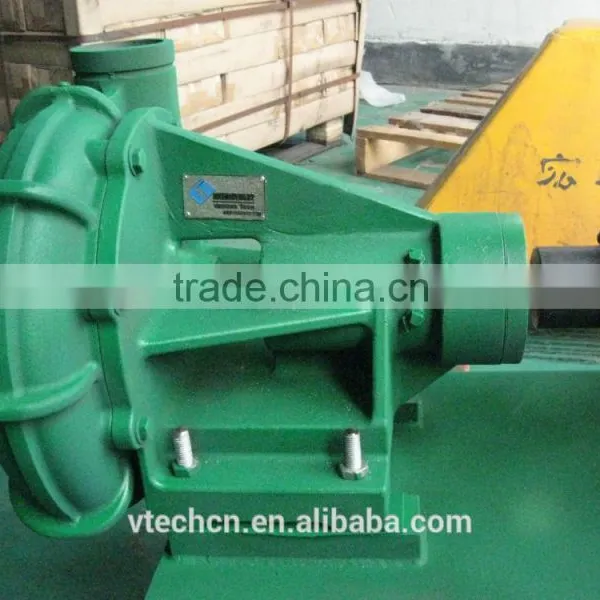

Part 1:water pump
Part # | WP-CCW ( Counter-Clockwise Direction ) |
Part # | WP-CW ( Clockwise Direction ) |
Rotate Speed | 1450rpm-3000rpm |
Flow Rate | ≤3000l/min / 800 gl/min |
Head | ≤50m / 175 feet |
Pressure | ≤0.5Mpa / 75psi |
Inlet/Outlet Connection Type | Victaulic Type Grooved Suction and Discharge (clamping system) |
Inlet | 4.00 inches |
Outlet | 3.00 inches |
Outlet Angle | Adjustable (30° 45° 60° 90° 120° 180° 270° etc.) |
Max. Operating Temp | 60℃ (140°F) |
Impeller Diameter | 230mm (9 inches) |
Shaft Diameter | 31.7mm (1-1/4 inches) |
Applications | Flooded Suction, Irrigation, Fire, Marine |
Dimension (length x width x height) | 493mm * 450mm * 360mm |
Net Weight/Gross Weight | 19kg/33kg |

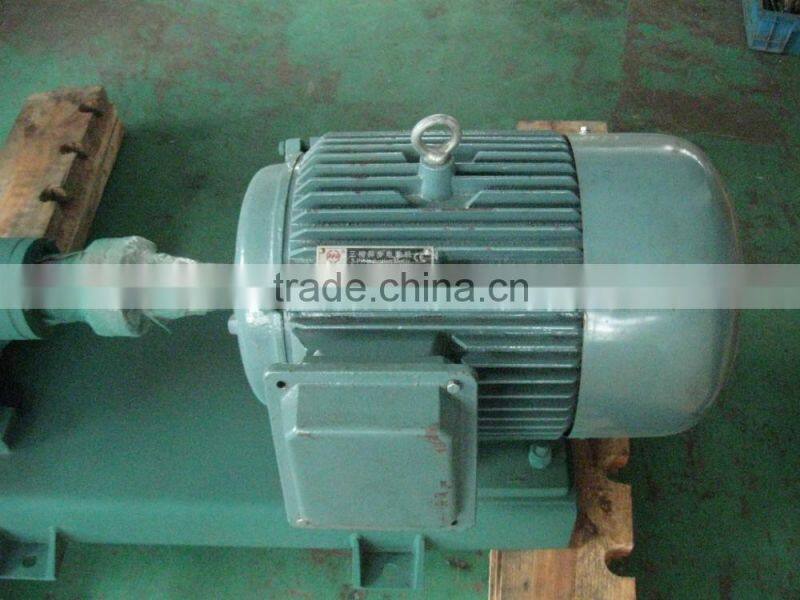

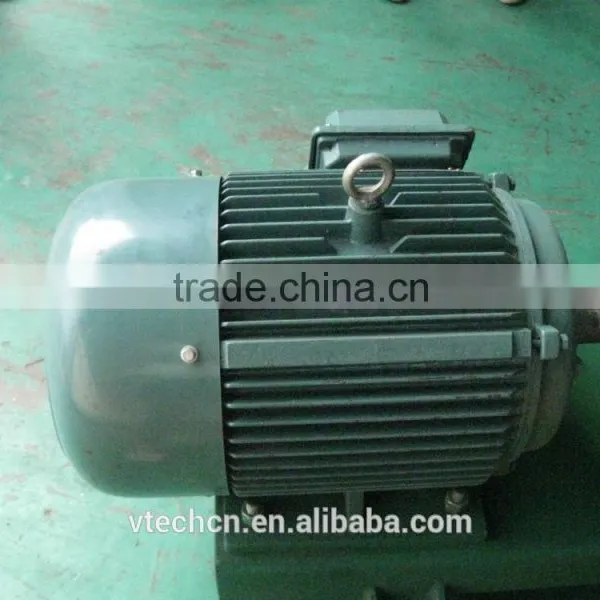

Part 2:motorizd motor
Power | Voltage | Speed (rpm) | ||
Min. | Rated | Max. | ||
22KW | 380V | 2500 | 2500 | 2900 |
from our Ningbo Factory!
Items shipped in 20-40 working days after payment is received depends on the quantity of the order.
Items(samples) shipped by UPS,FedEX,DHL,TNT and others, depending on size and weight of total order.
Items shipped by SEA most of time.
tems only shipped to address listed on the invoice; Not responsible for shipping to wrong address.
Tracking number will be sent to you as soon as we ship the goods.
Veritas Tech is the largest manufacturer for water truck parts in China, it designs and manufactures a full range of water truck parts, such as water pump, valves, spray heads, hose reel, control systems, water cannons, water tank and other fittings.Veritas Tech is ISO9001:2008 certificated.
Contact: Flor Luo
Phone: +86-574-86995053 Fex: +86-574-86995067 Mob: +86-18008880658
Address: 167-16 Lushan West Road, Free Trade Zone, Ningbo, Zhejiang,315806,China
