Aluminum Hydraulic Water Pump

Name: Aluminum Hydraulic Water Pump
Brand: Veritas Tech
Availability: InStock

FOB Price

US$ 1137.00 - 1750.00 / Set

1 Set(Min. Order)

Port Ningbo.China
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Veritas Tech
Model Number	WP-AS	Theory	Centrifugal Pump
Structure	Multistage Pump	Usage	Water
Power	Hydraulic	Standard or Nonstandard	Standard
Fuel	Other, hydraulic	Pressure	Low Pressure
Application	Fire

Product Description

Company Profiles

Veritas Tech, registered in Texas, USA, set up its operational center in Ningbo Free Trade Zone (in Beilun Seaport, the second largest seaport in China) in year 2002.

Veritas Tech is the largest manufacturer for water truck parts in China, it designs and manufactures a full range of water truck parts, such as water hose reel water pump, valves, spray heads, hose reel, control systems, water cannons, water tank and other fittings.Veritas Tech is ISO9001:2008 certificated.

Product Description

Hydraulic water pump

Features:

ü Material: aluminum material specifically so that the water pump is light weighted and easy to manufacture

ü Parts: the shaft is made of stainless steel; the impeller is manufactured within the tolerance of 0.001”; the bearing and mechanical seal are of the first-class quality

ü Fine Property: every part within the pump is carefully designed so that they can work together well and guarantee fine property

ü Quiet: the water pump makes low noise during work because of our thoughtful design

Part 1:water pump

Part #	WP-CCW ( Counter-Clockwise Direction )
Part #	WP-CW ( Clockwise Direction )
Rotate Speed	1450rpm-3000rpm
Flow Rate	≤3000l/min / 800 gl/min
Head	≤50m / 175 feet
Pressure	≤0.5Mpa / 75psi
Inlet/Outlet Connection Type	Victaulic Type Grooved Suction and Discharge (clamping system)
Inlet	4.00 inches
Outlet	3.00 inches
Outlet Angle	Adjustable (30° 45° 60° 90° 120° 180° 270° etc.)
Max. Operating Temp	60℃ (140°F)
Impeller Diameter	230mm (9 inches)
Shaft Diameter	31.7mm (1-1/4 inches)
Applications	Flooded Suction, Irrigation, Fire, Marine
Dimension (length x width x height)	493mm * 450mm * 360mm
Net Weight/Gross Weight	19kg/33kg

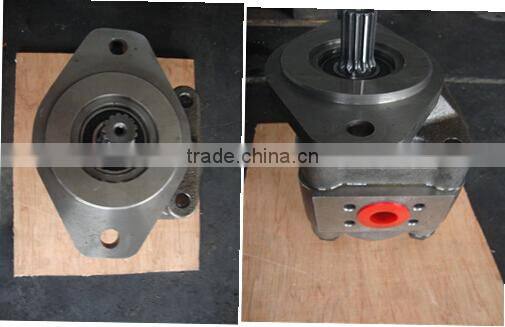

Part 2:hydraulic motor

Nominal

Displacement

(ml/r)

Pressure

(Mpa)

Speed

(r/min)

Volumetric

Efficiency

(≥%)

Qutput

Torque

(N·M)

Weight

(kg)

Rated

Max.

Min.

Rated

Max.

600

2500

3000

103.1

8.4

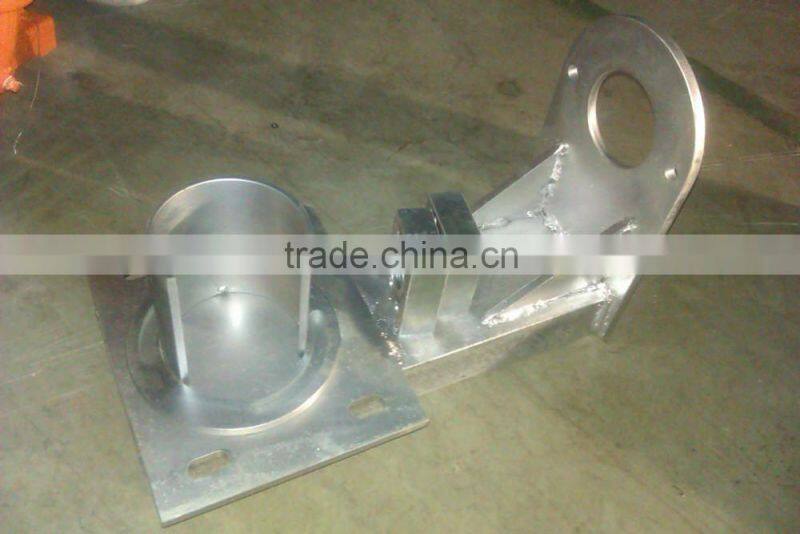

Part 2:pump base

Material: aluminum

Packaging & Shipping

FAST SHIPPING

from our Ningbo Factory!

Items shipped in 20-40 working days after payment is received depends on the quantity of the order.

Items(samples) shipped by UPS,FedEX,DHL,TNT and others, depending on size and weight of total order.

Items shipped by SEA most of time.

tems only shipped to address listed on the invoice; Not responsible for shipping to wrong address.

Tracking number will be sent to you as soon as we ship the goods.
