Home > Products > water truck fittings > 2016 Centrifugal Pump WP1213 Water Pump With Clamping System Quality Choice
2016 Centrifugal Pump WP1213 Water Pump With Clamping System Quality Choice
- Ningbo/Shanghai
- Money Gram Credit Card
You May Like
-
3" Aluminium Casting 90-Degree Elbow in Pipe Fittings
-
China Manufacturer Stainless Steel Ball Valves Brass Ball Valves
-
Duckbill Side Spray Head
-
Deflector Spray Head&Nozzle for Water Truck
-
Pneumatic Control Valves,butterfly Valve,EPDM Seat,stainless Disc,suitable for Air,water,oil,gas
-
3''*4"Aluminum Groove Water Pump for Water Truck
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Veritas Tech | |
| Model Number | WP1213 of water pump | Theory | Centrifugal Pump | |
| Structure | Gear Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | Low Pressure | |
| Application | Other, water trucks water pump |
Product Description
Company Profiles:
Veritas Tech, registered in Texas, USA, set up its operational center in Ningbo Free Trade Zone (in Beilun Seaport, the second largest seaport in China) in year 2002.
Veritas Tech is the largest manufacturer for water truck parts in China, it designs and manufactures a full range of water truck parts, such as water pump ,water pump, valves, spray heads, hose reel, control systems, water cannons, water tank and other fittings.Veritas Tech is ISO9001:2008 certificated.
Prodcut Descripition:
water pump
| Part# | WP-CW (Clockwise Direction) |
| Part# | WP-CCW (Counter-Clockwise Direction) |
| Rotate Speed | 1450rpm-3000rpm |
| Flow Rate | <3000l/min-800gl/min |
| Head | <50m/175feet |
| Pressure | <0.5Mpa/75psi |
| Inlet/Outlet Connection Type | Victaulic Type Grooved Suction and Discharge (clamping system) |
| Inlet | 4.00 inches |
| Outlet | 3.00 inches |
| Outlet Angle | Adjustable |
| Max. Operating Temp | 60"C |
| Impeller Diameter | 230mm (9 inches) |
| Shaft Diameter | 31.7mm (1-1/4 inches) |
| Applications | Flooded Suction, Irrigation, Fire, Marine |
| Dimension(Length*Width*Height) | 493mm*450mm*360mm |
| Net Weight/Gross Weight | 19kg/33kg |

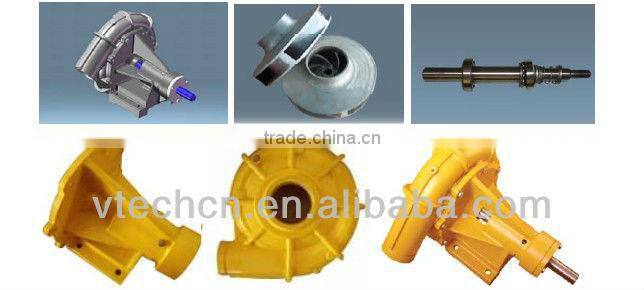

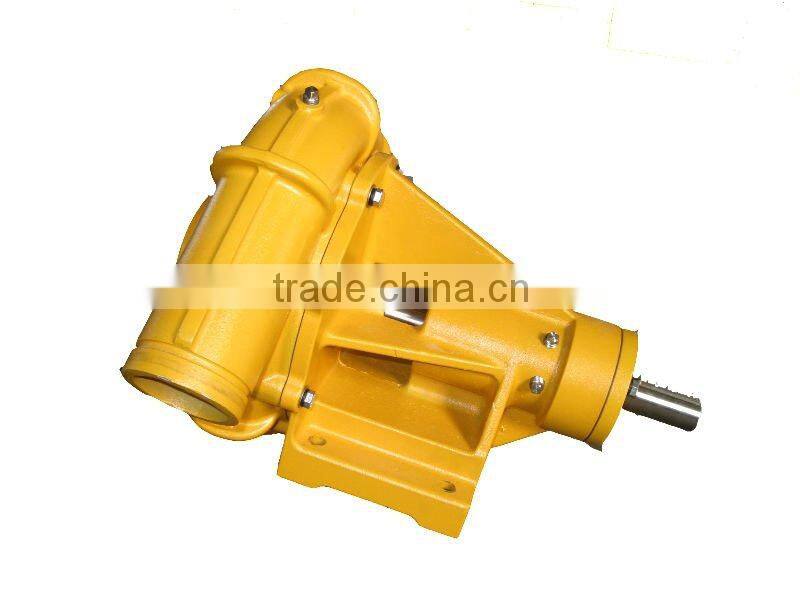

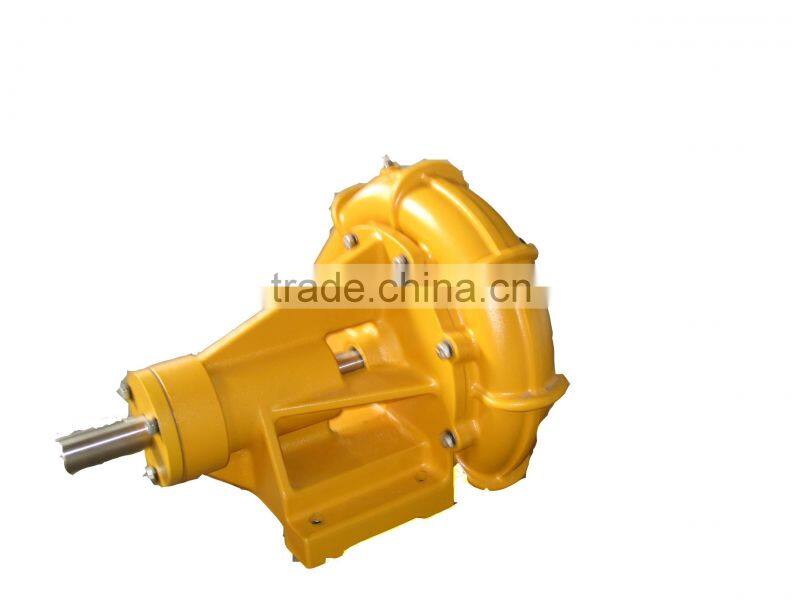

Images :
Shipping Terms &Conditions
FAST SHIPPING from our Ningbo Factory!
Items shipped in 25-45 working days after payment is received depends on the quantity of the order.
Items(samples) shipped by UPS,FedEX,DHL,TNT and others, depending on size and weight of total order.
Items shipped by SEA most of time.
Items only shipped to address listed on the invoice; Not responsible for shipping to wrong address.
Tracking number will be sent to you as soon as we ship the goods.
Contact
Website:
Contact: Kelly Huang
Phone: +86-574-86996908 86-18606624125
Address: 167-16 Lushan West Road, Free Trade Zone, Ningbo, Zhejiang,315806,China
