Home > Products > LED Pixel & Module > 2013 high quality 12V 2 chips 5050 led smd module
2013 high quality 12V 2 chips 5050 led smd module
- 500000 Piece / Pieces per Month
- Shenzhen
- Credit Card PayPal
Product Details
Model Number: | LG16-LM-5050W2 | Chip Material: | AlGaInP | Emitting Color: | Cool White |
Luminous Intensity: | 10000 | Luminous Flux(lm): | 48 | Optical Attenuation(%): | 3 |
Power: | Other, 0.48 | Power Dissipation: | ≤0.24W | Color Rendering Index(Ra): | 80 |
Color Temperature: | 2700-10000k | Operating Temperature(℃): | -20, 60 | Storage Temperature(℃): | -30, 80 |
Place of Origin: | Guangdong, China | Brand Name: | Ledladygaga | Certification: | CE |
Product Description
Specifications
2 chips 5050 led smd module1.waterproof:IP 68
2.warrany:2 years
3.CE ROHS
4.fast delivery: 3~5 days
2 chips 5050 led smd module
Specifications:
LEDs1.Each color available
2.CE&RoHS,2 years warranty
3.Life:50000hrs
4.Delivery:3-5days
Application
• Widely used indoor/outdoor advertising sign, channel letter & signs with non-waterproof requirements
• Ideal for small channel letter & lighting box with depth about 5-8cm.
• Edge lighting of transparent diffused materials
• large area back lighting
• Emergency / rescue signs
Feature
• Each module contains 3 SMD LEDs. Has wide viewing angle
• Super thin, only 4mm thick
• High intensity of each module, suitable for big & medium-sized LOGO & signage
• Perfect heat diffusion could prolong chips' lifespan
• each strip is not more than 30 pieces if series connection is adopted
• with hole on both ends, can be fixed by screw
• Input:DC12V
• IP rate:IP68
• lifespan:50,000hrs
Technical Parameter (TA=25°C)
Part No. | Color | LED Qty | Angle | Voltage | Current | Power | Lumen | IP rate |
LG16-LM-3528R3 | red | 3 | 140°-160° | DC12V | ≤20mA | ≤0.24W | 5-8lm | IP68 |
LG16-LM-3528Y3 | yellow | 3 | 140°-160° | DC12V | ≤20mA | ≤0.24W | 5-8lm | IP68 |
LG16-LM-3528B3 | blue | 3 | 140°-160° | DC12V | ≤20mA | ≤0.24W | 4-6lm | IP68 |
LG16-LM-3528G3 | green | 3 | 140°-160° | DC12V | ≤20mA | ≤0.24W | 9-12lm | IP68 |
LG16-LM-3528W3 | white | 3 | 140°-160° | DC12V | ≤20mA | ≤0.24W | 15-17lm | IP68 |

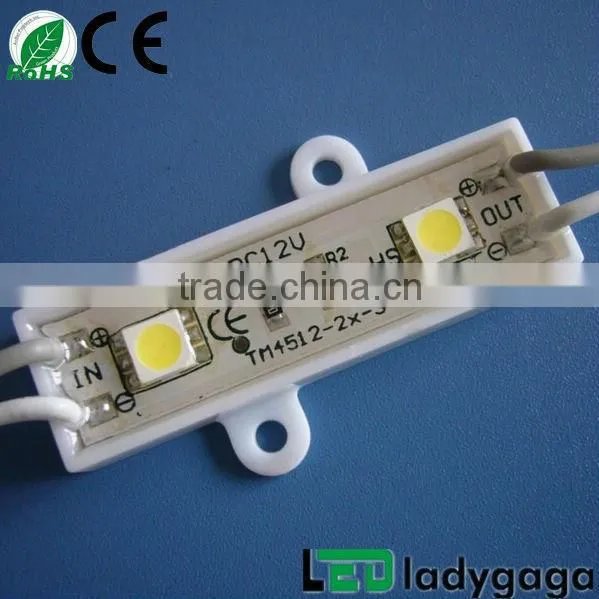

Product Picture:
