Home > Furniture > Furniture Parts & Accessories > Chair Mechanism > Mini 900N DC Electric Linear Actuator for Solar Machine
Mini 900N DC Electric Linear Actuator for Solar Machine
US$ 30 - 50
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
veritas
Model Number:
HF-TGA
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Linear Actuator With Potentionmeter for Solar MachineUS$ 10 - 50MOQ: 1 Piece -
12V or 24V Industrial Linear Actuator Max 5000NUS$ 50 - 100MOQ: 1 Piece
-
2016 Air Torque Actuators VT0527 Aluminum Enclosure and Telescopic TubeNegotiableMOQ: 1 Piece
-
2016 Linear Actuator 12V/24V Powerful With no NoiseNegotiableMOQ: 1 Piece
-
2016 Linear Actuator 12V/24V Powerful With no NoiseNegotiableMOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
veritas
Model Number
HF-TGA
MINIATURE LINEAR DC ACTUATORS
Small motor actuator with ACME screws,built-in Micro
switch and an internal diode,can automatically stop and
enables the change of direction by simply reversing the
applied voltage polarity.stroke length can been customized.
switches are not made to be adjustable.Inversely proportional
to the speed and power.
.
MECHANICAL DATA
•Operating temperature -26°C~+65°C
•Aluminium outer tube and stroke rod
•Protection IP54 or IP65
•12 or 24 or 36VDC •Aluminium alloy housing
•Preset limit switches •Low price
•Powder metal gears •Robust

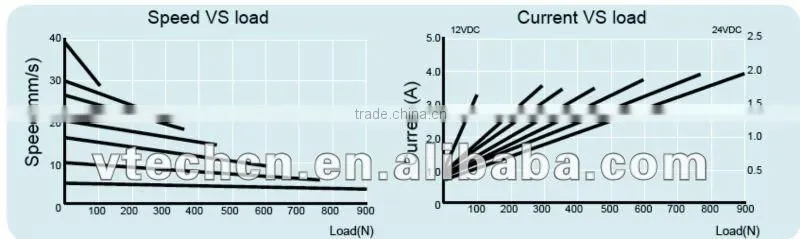

FORCE DATA
•Max load 900N
•Duty cycle 20%(High-speed linear 10%)
•Max static force 2300N
•Life time 50 000 complete cycles
