Ultrasonic Flaw Detector for CNG Cylinder
- 20 Set / Sets per Month
- ShangHai
- T/T
- ultrasonic flaw detector
- FOGSINS-NFS Series Fiber Optic Gyro North Seeker NFS Series (Type A, Type B, Type C, Type D) Fiber Optic Gyro North Seeker
- Gravity Metal Separator Industrial Plastic Granule Metal Detection Separator
- KM001 POWER-Z USB Digital Tester Type-C Voltage Current Detector
- Portable digital ultrasonic flaw detector Metal leak detector meter
- NDT Portable Digital Ultrasonic Testing Ultrasonic Flaw Detector
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Tian En | Model Number: | TN |
Product Description

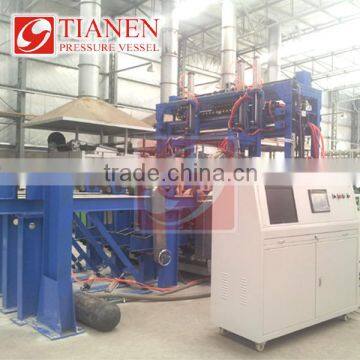

Ultrasonic Flaw Detecting Machine
2
Ultrasonic Flaw Detector for CNG Cylinder
Range of Application
The Autonomic standard offers a system which is universally suitable for the periodical re-qualification of industrial Gas cylinder.
1. Cylinder diameter: Φ356×1840mm ( typical product) , linear portion: 1480, the range of cylinder diameter: Φ219mm-Φ406mm (as Graph 1)
2. Product weight; ≤300Kg
3. Product length; 700-2000mm(designed reference)
4. Product material; 30CrMo,35CrMo,34CrMo4,37Mn
5. Cylinder wall thickness; 4mm-14mm
6. Weight≤300Kg
7.Tested flaw; the flaws like crack, fold, interlayer, etc.
8. Couplant : water
9. Test speed : 4min/pc ( take the length of the cylinder as 2000mm)
Testing standard:
ISO 9303-1989 --- Seamless and welded (except submerged arc-welded) steel tubes for pressure purposes —Full peripheral ultrasonic testing for the detection of longitudinal imperfections
Acceptance criterion: ISO 9303 :1989 Longitudinal flaws L2 class standard --- Depth of defect is 5 % of wall thickness and detection is for 25mm long notches.
(as follow which is in red form)
Specifications:
Test channel: 16channel
Range: 0 to 9999 mm, at steel velocity
Material Velocity: 1000 to 9999m/s
Display Delay: -20 to 3400 us
Probe Delay/Zero Offset : 0 to 99.99 us
Sensitivity: 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB and locked.
Test Modes: Pulse echo, dual element and thru-transmission
Pulser: Tunable Square Wave Pulser
Frequency range :0.5-10MHz
Pulse Repetition Frequency ranges from 500 Hz to 10k Hz
Pulse Energy: Low, Medium and High
Damping: 100, 200, 400 ohms
Bandwidth (amplifier bandpass ): 0.5 to 15 MHz
Gate Monitors: Two independent gates controllable over entire sweep range
Rectification: Positive halfwave, negative halfwave, fullwave, RF
System Linearity: Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier
Accuracy +/-1 dB.
Reject (suppression): 0 to 80% full screen height
Units: Inch or millimeter
Transducer Connections: BNC or LEMO
Power Requirements: AC Mains 100-240 VAC, 50-60 Hz
Operating Temperature: -10℃ to 50℃
Storage Temperature: 0 -30℃
Communication function : Adopt TCP/IP protocol and upper monitor to communicate, and through the upper monitor to control this instrument, not only can use this instrument to directly ultrasonic test, also can use the upper monitor to control it by cable and wireless network .
The updating of various software, can be specially designed the software to meet the special demands for users.
2
5
Main equipment name and list:
No. | System | Product name | Item | Quantity |
1 | Ultrasonic testing system | Ultrasonic testing equipment | EN-UT16 | 1 |
UT probes & Probe holder | Customized | 1 | ||
Testing software | Customized | 1 | ||
Alarm system & Other necessities | Customized | 1 | ||
Electronic for UT testing parts | Customized | 1 | ||
2 | Electric control system | Electric control system | Customized | 1 |
3 | Mechanical System | Up-loading, Off-loading, Conveyor & Skid-plate parts | Customized | 1 |
