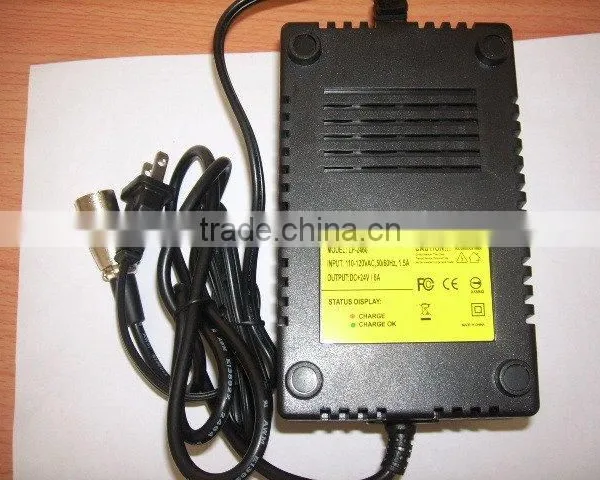

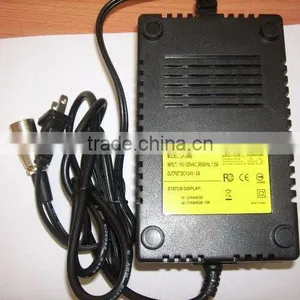

Lead Acid Battery Charger

1. 3-step charge control

2. Current detection as charge termination

3. Switch mode charger with universal input voltage

4. Vailable in 6V, 12V,24V and 36V,48V versions

5. Protected against reverse polarity and short circuit

6. LED status indicator

7. Custom specifications on request

Once the charger is attached to a sealed lead acid battery and plugged in, the charging process will begin. The charger will subject the lead acid battery to three steps of charging.

In the first step, the charger will enter into fast charge mode. During this step, the charger is in constant current mode with the current rate remaining at its maximum value.

In step two, the battery will be nominally 80-95% charged, and the charger will switch into constant voltage mode (current is no longer being provided at its maximum rate). The charger will continue to provide a constant voltage until the charge current decreases to the charge termination level.

The third and final step will place the charger in float charge mode, after charge full, remove the battery from the charger. If the float is needed for operational readiness, lower the charger voltage to about 29.00V/cell or 27.70V/cell, the chargers perform this function automatically, the float charge compensates for the self-discharge, the battery can be applied for an unlimited time, connect other battery, the charger can return to rapid charging (step 1)
