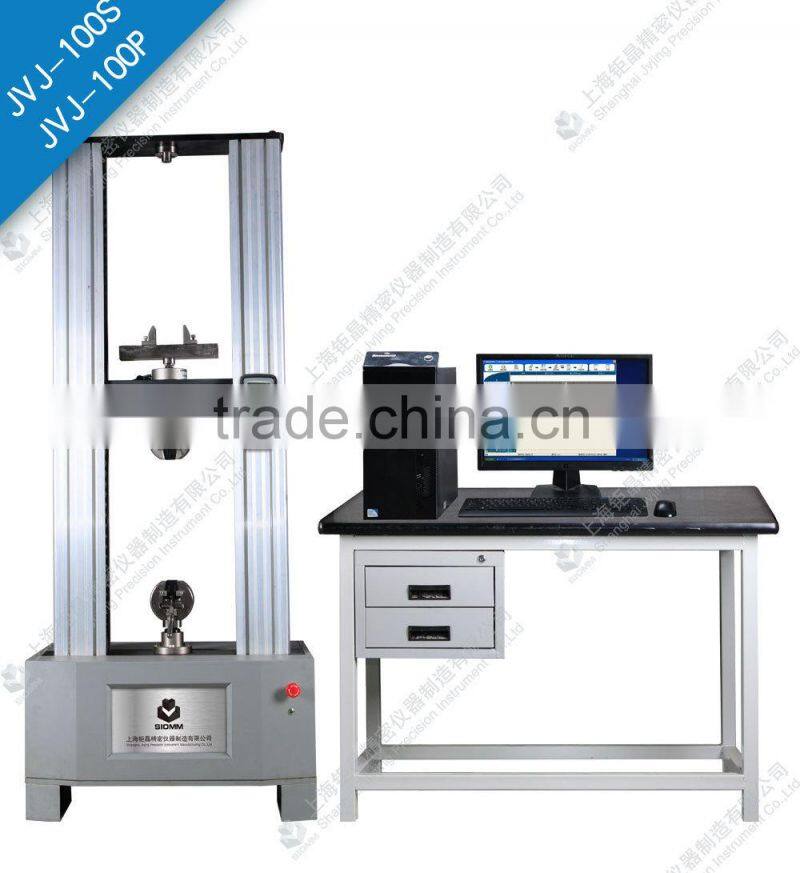

Material Testing Machines JVJ-100S

Name: Material Testing Machines JVJ-100S
Brand: SIOMM
SKU: 103404773
Availability: InStock

Shanghai Jinwei Instrument Manufacturing Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

SIOMM

Model Number:

JVJ-100S

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name SIOMM

Model Number JVJ-100S

Power Electronic

Usage Tensile Testing Machine

Material Testing Machines JVJ-100S

1. Top 3 suppliers in China.

2. ISO9001 approved.

3. Competitive price in global market.

Technical Parameters

Model	JVJ-100S	JVJ-100P
Max. Load	100000N	100000N
Load resolution	1/10000	1/7000
Load accuracy	≤0.5%	≤1%
Load amplification	7 segment auto switch	5 segment auto switch
Disp. resolution	1/1000	1/1000
Disp. accuracy	≤0.5%	≤1%
Metal stretch meter resolution	1/1000	1/1000
Metal stretch meter accuracy	≤0.5%	≤1%
Large deformation stretch meter accuracy	±0.5mm	±0.5mm
Speed range	1-500mm/min	5-200mm/min
Effective space	800mm	800mm
Load cell	Imported	Made in China
Capacity section	7 section	5 section
Dynamical system	Servo motor	variable frequency motor
Test width	300mm
Power	AC220V 50HZ/60HZ
Rated power	5KW
Dim. size	5608001960mm
Weight	380KG
Standard accessories	Universal testing machine 1 set, tensile fixture 1 pc, measuring software 1 pc, document 1pc
Optional purchase	Metal stretch, large deformation and all kinds of fixture extensometer
