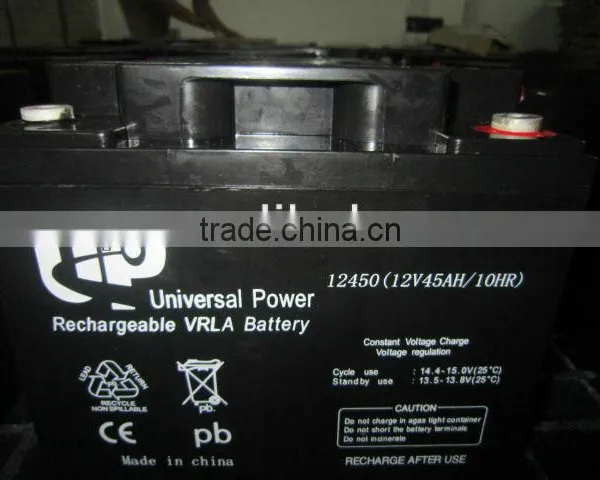

VRLA Battery 12V 45Ah for UPS/solar System

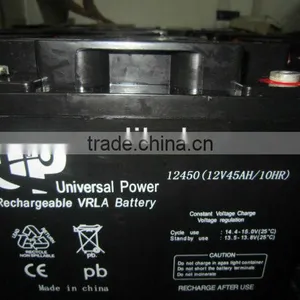

VRLA Battery 12V 45Ah for UPS/solar System thumbnail-1
VRLA Battery 12V 45Ah for UPS/solar System photo-1
US$ 30 - 50 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
UP
Model Number:
GB12-45
Contact Supplier Request Quote Chat Now
Universal Power Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangdong China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name UP
Model Number GB12-45
Usage UPS
Voltage Other, 12v
Sealed Type Sealed
Maintenance Type Free
Size 197*165*170
Weight 14kg
Nominal Capacity 45ah
Product Description



General Lead Acid Battery Series
General Series Valve Regulated Lead Acid batteries are designed
with AGM (Absorbent Glass Mat) technology, high performance
plates and electrolyte to gain extra power output for common
power backup system applications widely used in the field of
UPS, Emergency Lighting System





  Lead Acid Battery Application

· Medical Equipment                                 · Alarm System
· UPS                                                         · Cable Television
· Power tools                                            · Communication Equipment
· Control Equipment                                 · Emergency Power System
· Toys                                                        · Security System



Lead Acid Battery Features
· Sealed and maintenance free operation.
· Non-Spillable construction design.
· ABS containers and covers(UL94HB, UL94V-0) optional.
· Safety valve installation for explosion proof.
· High quality and high reliability.
· Exceptional deep discharge recovery performance.
· Low self discharge characteristic.
· Flexibility design for multiple install positions.



Lead Acid Battery Construction
· Sealant ........Epoxy Resin           · Component ......Raw material
· Safety valve .....EPDR                  · Positive ........Lead dioxide
· Terminal ........Copper                 · Negative ........Lead
· Separator ........Fiber glass          · Container ........ABS
· Electrolyte .......Sulfuric acid





Key Specifications







Sealed and maintenance free operation



Non-spillable construction design



ABS containers and covers (UL94HB, UL94V-0) optional



Safety valve installation for explosion proof



Good-quality and high reliability



Exceptional deep discharge recovery performance



Low self discharge characteristic



Flexibility design for multiple install positions



For more details, please do not hesitate to mail us.







Applications:



  • Data Centre (High Rate UPS
  • Telecommunication
  • Banks & Financial Centre
  • Hospital& Testing Laboratories
  • Power Generation Plants
  • Emergency Lighting
  • Emergency Power Supply
  • High Power Backup Supply
  • LED Light
  • VAN
  • Wheel chairs
  • Security system"Alarm system" "CCTV"
  • "Video" Camera""Loudspeaker"
  • Marine
  • Wheel Chair
  • Mobility scooter
  • Kids car

SPECIFICATIONS

Nominal Voltage

12 V

Rated Capacity (20 hour rate)

5AH

Dimensions

(Length*Width*Height*Total Height )/mm

L90*W70*H101*TH107 mm

Weight Approx

1.64kg



CHARACTERIESTICS

Capacity

25°C

20 Hour rate

5AH

10 Hour rate

4.66AH

5 Hour rate

4.25AH

1 Hour rate

2.75AH

Internal Resistance

Fully charged battery at 25°C

25 m Ω

Capacity affected by temperature

(20 hour rate)

40°C

25°C

0°C

-15°C

102%

100%

85%

65%

Self-Discharge

At 25°C

Capacity after 3 month storage

Capacity after 6 month storage

Capacity after 12 month storage

91%

82%

64%

Terminal Type

T1,T2

Charge

(Constant Voltage)

Cycle use

Initial Charging Current less than 2.80 A

Voltage 14.5~14.9V

Float use

Voltage 13.6~13.8V







VRLA battery 12V 45Ah for UPS/solar systemVRLA battery 12V 45Ah for UPS/solar systemVRLA battery 12V 45Ah for UPS/solar systemVRLA battery 12V 45Ah for UPS/solar system
