Specifications
1.Chinese Academy of Science;2.CE approved;
3:widely used in biology, bacteriology, chemistry reserch.

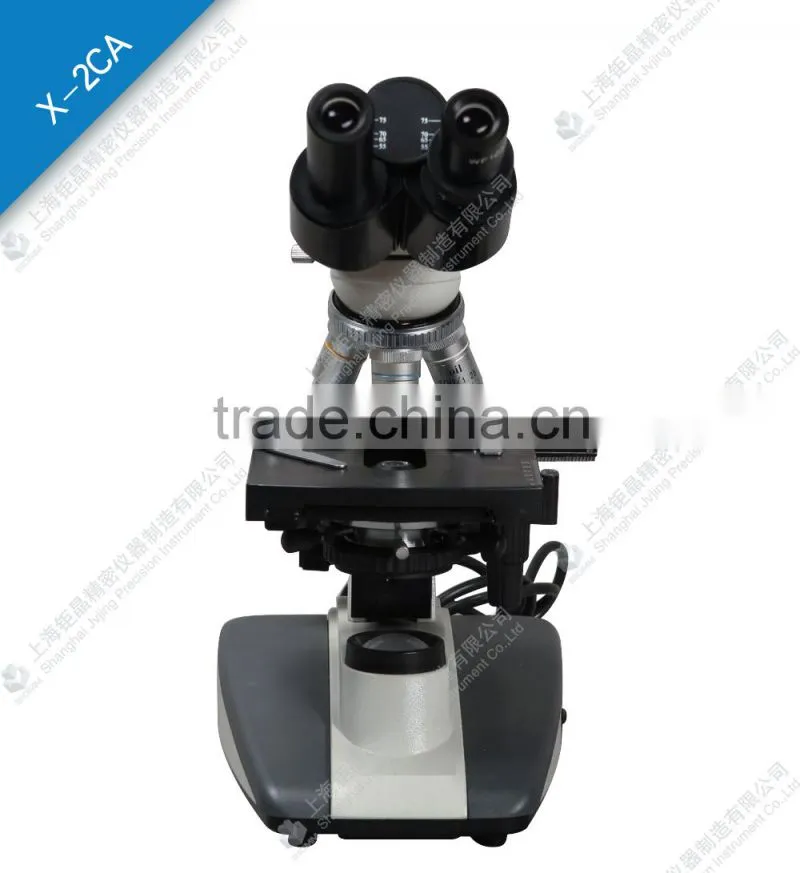

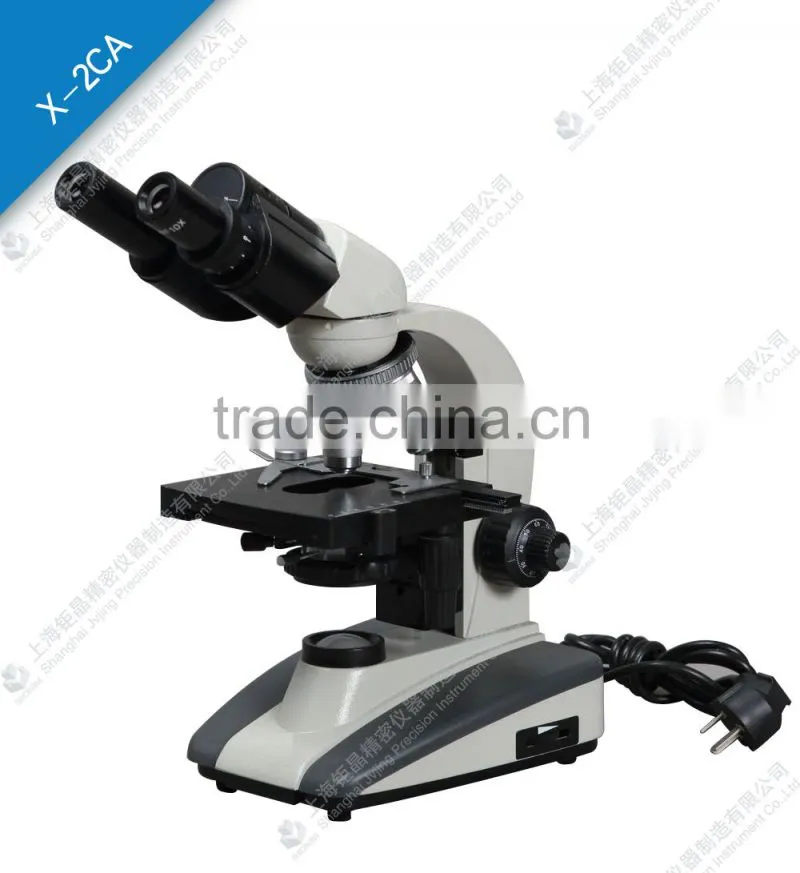

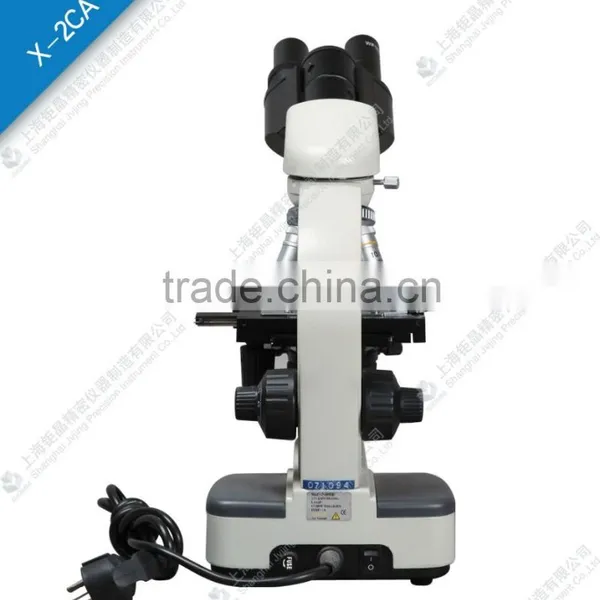

Laboratory Optical Instrument Biological Microscope (X-2CA)
1. Purposes and features:
This microscope can be widely used in biology, bacteriology, histology and pharmaceutical chemistry research. Also can be used in medical clinical trials, and in school laboratories for teaching purposes.
Instrument adopts a lifting Abbe condenser group, so that the light concentrating adjustment range more wider. With planetary coaxial coarse and fine micro-focusing device, the focus is both comfortable and smooth but also for the fine tuning; Double layer mechanical platform with a reading of the scale, it's coaxial vertical and horizontal hand wheel adjustment, make the operation more easy.
3.Eyepiece tube: Binocular tube, hinge chain type, can working in any angle (360°), bevel 30 °, pupillary distance: 55 - 77 mm , diopter adjustment > ±5 diopter
4. Converter : four holes
5.Total magnification: 40 × ~ 1600 ×
6. Mechanical tube length 160 mm
7. Abbe condenser NA 1.25 with iris diaphragm and filter down adjustment 20 mm
8. Coaxial coarse and fine focusing mechanism of fine-tuning; adjustment range: 30mm; fine-tune the grid value: 0.002 mm
9. Double layer mechanical loading platform 140 × 140mm; Range of movement: 75 × 45 mm; Vernier: 0.1 mm
10. Lighting systems: with variable diaphragm bright field, illuminator with adjustable brightness, halogen 20W/6V
11. Power: 110-220V/50-60Hz, 30W
3. Complete sets of instruments:
1. Microscope 1 set
2. Achromatic objective 4x, 10x, 40x (spring); 100x (spring, oil) each 1 piece.
3. Binocular eyepiece tube 1 piece
4. Wide field eyepiece: 10x, 16x Each 1 pair
5. Color Filter 1 piece
6. Objective lens using immersion oil ( synthetic oil ) 1 bottle
