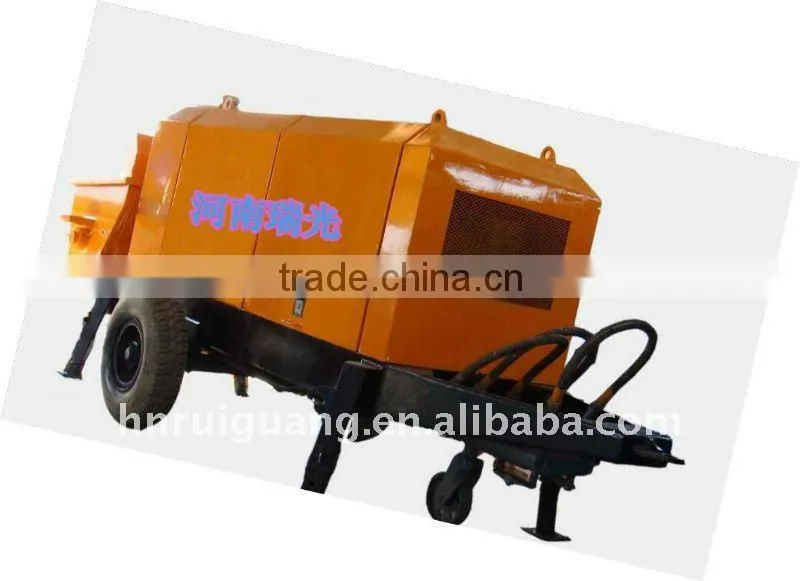

Help CenterRuiguang Trailer Mounted Concrete Pumps(HBTS60-13-75) With High Performance
Related Products
-
Henan Ruiguang Professional Fine Stone Concrete Pump With High EfficiencyUS$ 10,000 - 12,000MOQ: 1 Set -
HN30B Small Concrete Pump Trailer Mounted Concrete PumpUS$ 20,000 - 30,000MOQ: 1 Set
-
Hot Selling the Concrete Pump Car With Reliable PerformanceUS$ 25,000 - 30,000MOQ: 1 Set
-
HOT! the Authentic Concrete Pump With High EfficiencyUS$ 10,000 - 30,000MOQ: 1 Set
-
Truck Mounted Concrete Pump HN30BUS$ 10,000 - 30,000MOQ: 1 Set
HBTS60-13-75 Concrete Pump Description
Concrete pump hydraulic system adopt double division open circuits, the system of high efficiency, heat dissipation good, work smoothly. All main pump valve group selection west Germany rexroth original installation import parts, high reliability, imported from Germany, seals joints connecting system layout science reasonable, and not oil. Automatic lubrication system, forced center system filtering and other assembly setting, all lubricating points oil amount on-demand reasonable allocation, gladne maintenance damageable parts. Key electrical components are imported from, PLC programmable control, low voltage control technology, remote control operation, the disk operating arbitrarily choose, safe and reliable. Pumping system with constant power control, pumping speed steplessly adjust, automatic tube jam against pump etc. Function. S-type distributing equipped with floating high hardness wear-resisting rings and hardness alloy glasses board accessories, extremely long service life. The unique system layout, appearance design, so the machine is compact small and exquisite, but the maintenance convenience, operating more comfortable, various parts of disassembly is very convenient.
HBTS60-13-75 Concrete Pump Performance Characteristics
1, concrete pump adopt three pump system, hydraulic loop of the operation of the system, not interfere with each other.
2, concrete pump has anti pump function, benefit promptly eliminate tube jam fault, and short outage qa department.
3, concrete pump adopts advanced S tube distributing, it can automatic compensation wear clearance, sealed performance is good.
4, concrete pump is wear-resistant alloy glasses plate and floating cutting ring and long service life.
5, concrete pump long trip, extend the makings of cylinder feeding cylinder piston and service life.
6, concrete pump adopts the optimization design of the suction hopper, easy cleaning, feeding better performance.
7, concrete pump adopts automatic centralized grease lubrication system to guarantee the machine running to obtain the effective lubrication.
8, concrete pump has remote control effect, safe and convenient operation more.
9, concrete pump all the parts adopt gb, interchangeability is good.
HBTS60-13-75 Concrete Pump Technical Parameters
| Name of parameters | Unit | HBTS60-13-75 |
| Max theo. Feeding volume(High/Low) | m3/h | 72 |
| Max feeding pressure | MPa | 8 |
| Type of hydraulic system | / | Open |
| Type of Power machine | / | Motor |
| Specification rotating speed | r/m | 1480 |
| Power | kW | 75 |
| Model of distribution valve | / | S valve |
| Diameter of oil urn | mm | 100 |
| Diameter of transfer cylinder | mm | 200 |
| High lowe pressure voltage switch | / | yes |
| Capacity of hydraulic oil tank | L | 460 |
| Hopper capacity | m3 | 0.8 |
| Hopper height | mm | 1280 |
| Dimension(length%×width%×height) | mm | 5400×1860×1900 |
| Total weight | kg | 5400 |
