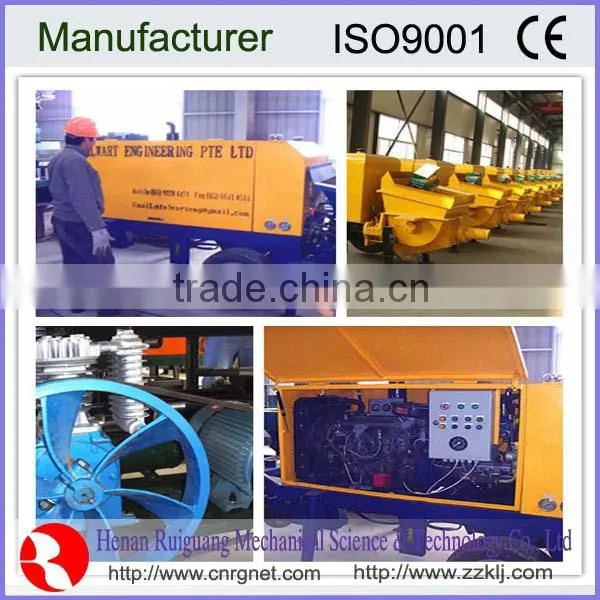

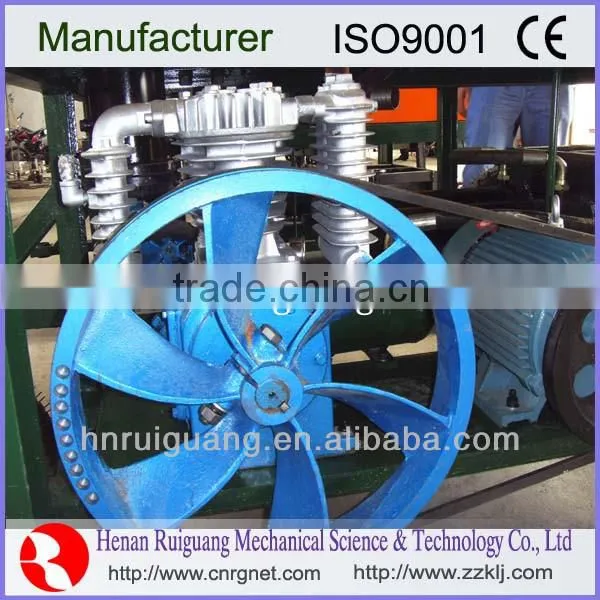

HN30B Small Concrete Pump trailer mounted concrete pump
HN30B Small Concrete Pump -----Hydraulic system
1.This product adopts double pump, double loop open type hydraulic system, the main pumping oil and S
valve swing oil is independent each other,to make the system is simple, long service life,higher reliability and
be easy for failure diagnosis.
2.Pumping oil reversing by using the directional control valve reducing pressure device, avoid impulsion,
makes pumping oil reversing steady and reliable.
3.Pump hydraulic system with a safety overflow protection, at the same time, the main pump with the system
overpressure, the pump pressure automatically cut off the closure device, so that the main pump to get the
multi-level and reliable protection.
4.Swing oil adopts constant pressure pump to supply oil, large swaying force and high energy-saving.
5.All pipes adopt cone seal or import rectangle seal, reliable sealing pipe joints.

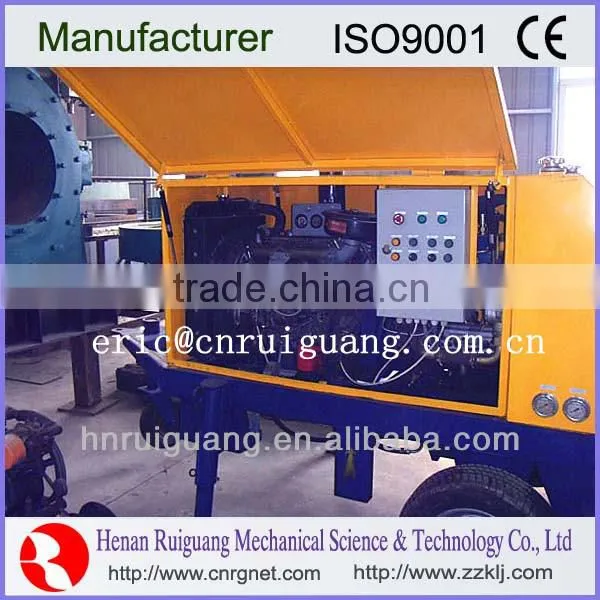

HN30B Small Concrete Pump -----Electronic control system:
The salient features of the electronic control system is advanced technology, simple, and high reliability.
1.The pump is the exclusive use of the programmable logic controller.Using software replace intermediate
relay and time relay etc.separate control elements. ,greatly reducing the use of the number and amount of
wiring for electrical components, and significantly improve the reliability of the electrical control system.At the
same time the programmable logic controller with input and output fault indication make troubleshooting simple and clear.
2.More than 90% the electrical components adopt Siemens imported parts, to ensure the reliability of the
components.
3.Motor start-up using the Y —Δ type of conversion , to avoid negative consequences caused by direct
start-up.
HN30B Small Concrete Pump -----Machinery (mixing) distributing valve system:
1.The mixer with a unique structure make the hydraulic motor and stirring bearing completely isolated, even if
the mixing seal wear and leakage pulp that does not affect the hydraulic motor. At the same time, dualmotor,
to ensure that the mixing torque is large enough, it also can stir normally in poor material conditions.
2.The wearing parts, such as the glasses plate and the cutting ring , have a long service life through
continuous technology research.
HN30B Small Concrete Pump -----Lubrication system:
The lubrication system uses a centralized automatic lubrication system of the double pump,lubrication pump
suction and pressure oil exit are equipped with filters,avoid oil separator oil is dirty and clogged. Progressive
oil separator with overflow indication can make the blockages automatically display, and concrete pipe doesn't flow back,to ensure lubrication system operate reliably, extending the service life of S valve.
HN30B Small Concrete Pump -----Cooling system:
Adopt mandatory aircooled radiator device,to ensure that the hydraulic system oil temperature control in the
normal scope of work and to protect the hydraulic system of the host is working in proper condition.
HN30B concrete pump -----Concrete Pump Technical Parameters
Project |
Parameter |
The maximum theoretical yield(m3/h) |
30 |
The maximum theoretical outlet pressure(Mpa) |
8 |
Maximum diameter of aggregate(mm) |
30 |
Motor power(kw) |
45 |
Main oil pump type |
Variable ram pump |
Inner diameter of delivery tube(mm) |
76-100 |
The maximum theoretica horizontal distance(m) |
300 |
The maximum theoretica vertical height(m) |
120 |
External dimensions length*wide*high(mm) |
3850*1400*1450 |
Main engine quality(kg) |
2500 |
Terms and conditions
Delivery time: within 20 days after received your 40% down payment.
Payment term: T/T 40% first, balanced 60% against the copy of B/L.
Warranty:The guarantees for the quality of the machines for a period of one year from the date of exporting
date. If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall
replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.
