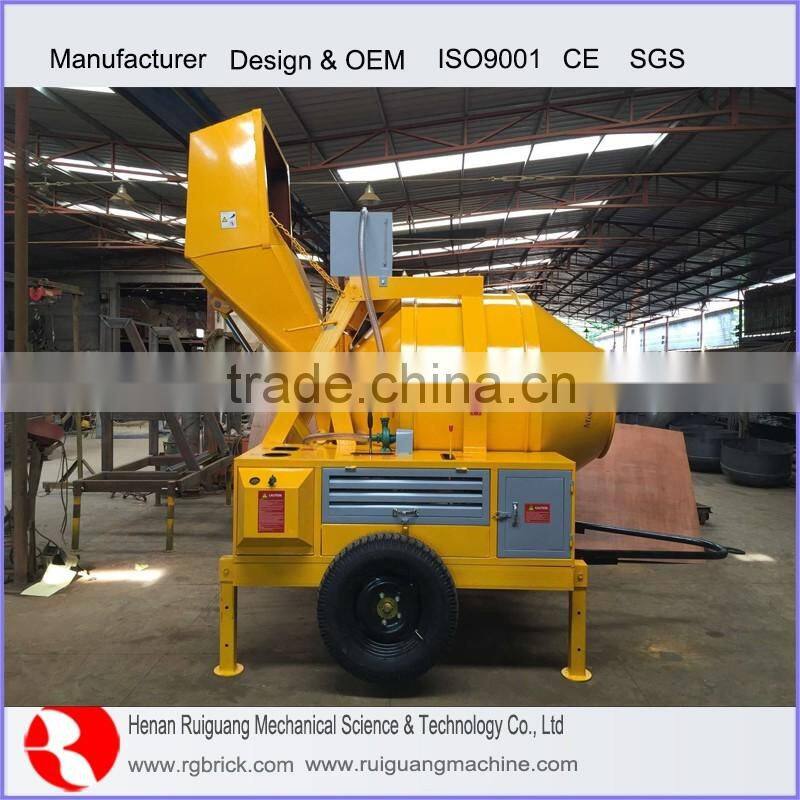

JZC350 portable Concrete Mixer with hydraulic hopper
Specifications
.........................................................................................................................................................................
Specification:
dium-sized, 5.5mm plain carbon steel plate
2.Be gear driving
3.Be feeding with anti-climbing bucket
4. Capacity:10-14m3/h
5.Factory price and ISO certificate
6.inflatable or solid tyre
Description
........................................................................................................................................................................

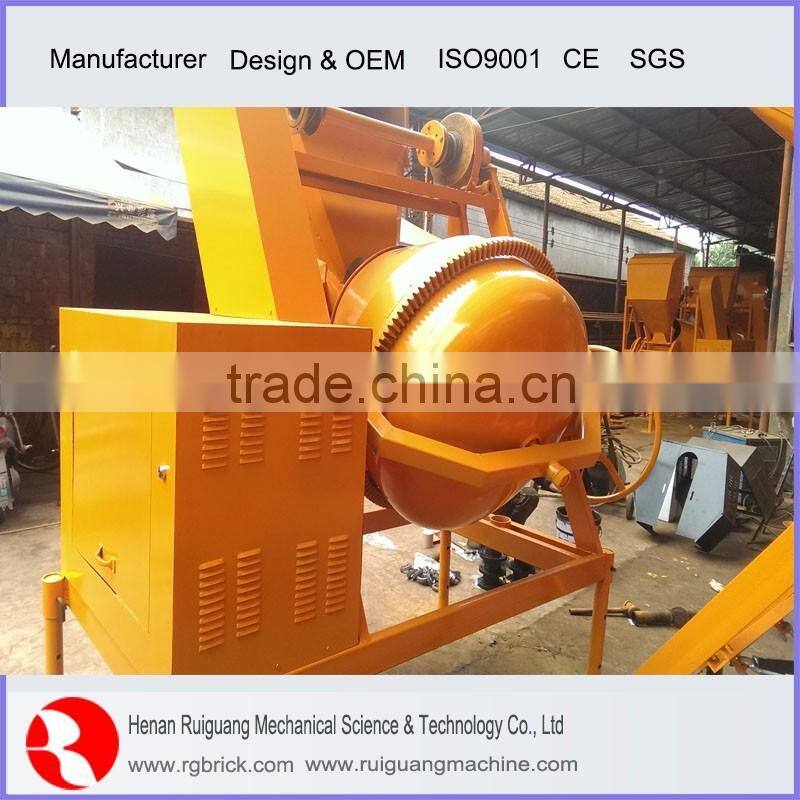

JZC 350 Concrete Mixers are gravity type reverse turning discharging mixers with double cone, the mixing tube is driven by ring gear, during its operation, it will turn upright while mixing and turn reverse while discharging. It can mix quaking concrete and semi-hard concrete, and is applicable to normal construction site, road, bridge works and various types of concrete members’ factories.
JZC, JZM series mixer including JZC 250,350,500,750 and JZM350, altogether 5 main models, among which, model JZC 750 is stationary type, it can be used as single machine or combined with compounding machine to form simple concrete batch plants. Other models are all models are all moveable type.
Main Technical Parameters
.......................................................................................................................................................................
Model |
JZC350 |
Discharging Capacity |
350 L |
Charging Capacity |
560 L |
Productivity |
10-14 m3/h |
Maximum Size of Aggregate |
60 mm |
Power |
5.5kw |
Accuracy of Water Supply |
Error≤2% |
Max Carrying Speed |
20 km/h |
Tyre size |
6. 50-16 |
Speed of Mixing Drum |
14 RPM |
Dimensions (L×W×H) |
2765*2150*3000mm |
Overall Weight |
1550 KG |
After-Sales Services for concrete mixer:
.........................................................................................................................................................................
1.Spare parts will be delivered as you need.
2.Engineers can go to clients’ site for guiding the installation and test-running if necessary;
3.Warranty period: 18 months since the delivery;
4.Ruiguang service team will follow every placed order regularly till warranty period finished;
Related Keywords:
.........................................................................................................................................................................
concrete pump,JZC350 concrete mixer ,JS series mixer,concrete brick press mahcine, concrete brick machine, automatic concrete block machine, concrete pump.
concrete pump with mixier
Online Video:
Factory overview of JZC350 concrete mixer: /watch?v=wUtQ8CBfR-Q
JZC 350 Concrete Mixer working video: /watch?v=6JUPAmvkj_Y
