Specifications
1) Best value brinell hardness tester.2) Factroy direct price, accept custom made.
3) CE and ISO9001 Approved.

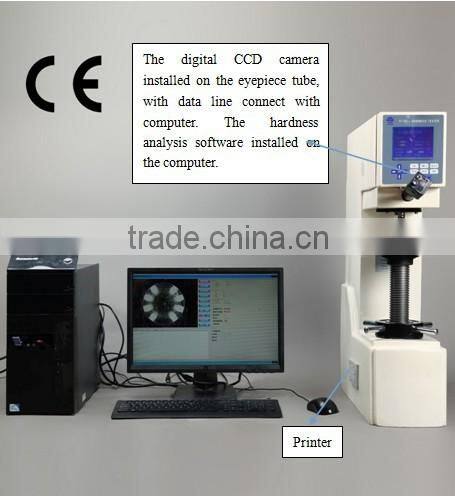

MHBD-3000IS Brinell hardness tester with software
Technical parameters:
Model |
MHBD-3000IS |
Brinell scale |
HBW2.5/62.5,HBW2.5/187.5,HBW5/125,HBW5/750, HBW10/100, HBW10/250, HBW10/500,HBW10/1000,HBW10/1500,HBW10/3000 |
Conversion scale |
HRC,HRA,HR15N,HR30N,HR45N,HV |
Test force |
62.5kgf(612.9N),100kgf (980.7N),125kgf (1226N),187.5kgf (1839N),250kgf (2452N),500kgf (4903N),750kgf (7355N),1000kgf (8907N),1500kgf (14710N),3000kgf (29420N) |
Minimum unit |
0.00125mm |
Hardness data read |
Computer screen |
Total amplification |
200X |
Specimen maximum height allowed |
230mm |
Instrument size |
550×210×750mm (L×W×H) |
Instrument weight |
120kg |
Dwell time |
5~60S |
Power supply |
AC220V + 5%, 50~60 Hz |
Data output |
The test data automatic generation format Word, Excel and so on report, print A4 report, save the image JEP/BMP format
|
Executive standard |
GB/T231.2 National standard,JJG150 inspection rules |
Standard accessories |
HBD-3000P hardness tester 1 set, 20X measuring objective 1 piece, 2.5X objective 1 piece,5X objective 1 piece,Φ2.5,Φ5,Φ10mm harden alloy indenter 1 piece, standard hardness block 2 pieces, big, medium and “V” test table each 1 piece, power cable 1 piece, accessory box 1 set, dust-proof cover 1 piece, image analysis software CD 1 piece, CCD image sensor 1 piece, image captured card 1 piece, software dog 1 piece, data cable 1 piece, manual instruction, certificate of quality and warranty card each 1 piece . |
Optional |
Brand computer and printer |

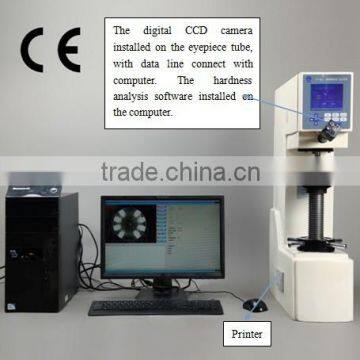

This system include the Image analysis software and digital Brinell hardness tester, which can focus in the computer and indicate the indentation image by connecting CCD; there only needed to use keyboards and mouse that can complete the test requirements, it is improve working efficiency, it is a perfect solution to test hardness value.
Main function and features of software:
1. Image analysis software that Researched by our institution, can be customized for kinds of functions, completed, handy operation and meet most customers’ demands;
2. It possesses the function of Brinell, Micro and Knoop hardness value test, easy to shift the dynamic and static measurement;
3. It can magnify 80 times of the indentation, and processing local magnification, to avoid manual error;
4. It can automatic to identify the indentation image and measure the indentation diameter;
5. Real time display the indentation diameter, hardness value, indentation depth, material strength, conversion hardness value etc.;
6. It possesses the unique mark positioning function, testing the positioned point hardness value;
7. It can be adjusted the color, gray, contrast ratio, lightness of the image;
8. Attached with function of indentation tangency fine tuning, length measurement and angle measurement etc.;
9. It possesses the function of test result statistical analysis, automatic generation and export for the format of Word, Excel of hardness measurement analysis report, and save the indentation image, print etc.;
10. Support WIN9X,WINNT,WIN2000,WINXP,VISTA and so on operation system.
Main function and features:
1. It possesses the 10 grades test force, it can test 10 Brinell scales, with wider test range;
2. The outer shell of machine is formed of special founding one-time casted technique, stable structure, it is not easy to be out of shape;
3. Closed loop sensor with microcomputer control system, with high accurate test and stable function;
4. It is adopts to electric load test force automatic, compensate the test force by microcomputer, to make sure the accurate test.
5. It causes the low voice when do test, it adapts to different kinds of lab using.
6. This machine can connect to portable Brinell image software, improving the efficiency.
Main application:
1. Brinell hardness with huge test force, the indentation is large, which adapts to test the big size grain metal, reflecting the combination property;
2. Cast iron, steel, ferrous metal especially for rather soft metal, such as pure aluminum, lead, tin etc.

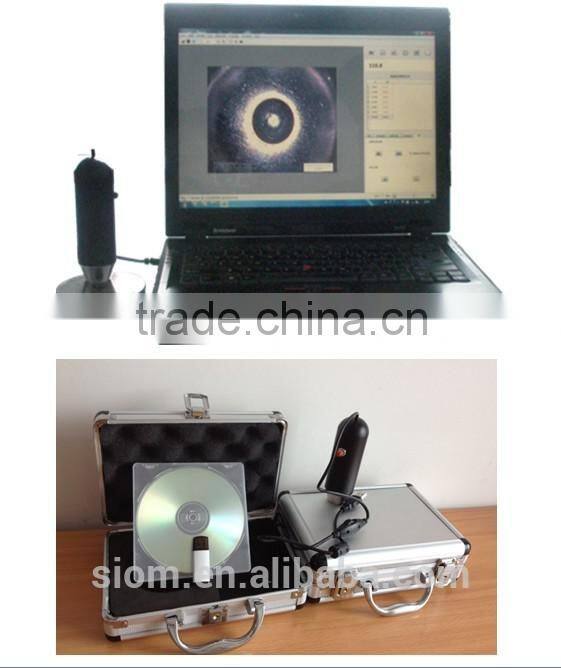

Including:
1. Software (English version)
2. Camera
3. Dongle
Equipped with English version software:

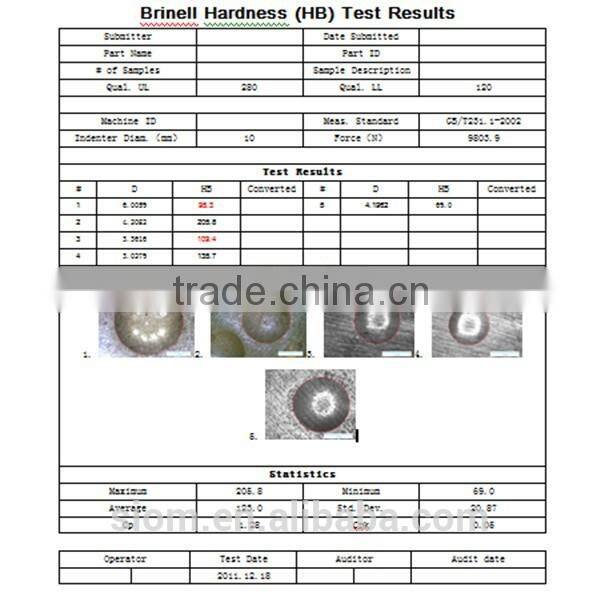

Briness Hardness tester (HB) test result:
Our factory
Modern plant, office building and equipments, Senior engineer and experts and professional team provide the high technology.
Certificate:
Customers:
We uphold "Comprehensive, high quality,fast" service standards and customer satisfaction as the goal ,won the customer's approval.At present, our current customers from USA, Canada, Russia, Danmark, Poland, India, Korea,etc more than twenty countries and regions.
Our Partners:
