Pressure slot insulation machine air blower is a special stator slot insulation paper automatic insertion automation equipment. Feeding, forming, folding, inserting, indexing all combined. It is suitable for small motor stator slot insulation material.
Simple operation, and high degree of automation. this machine is used for induction motor stator which meet the specification in the below form date
suitable for various kinds of small motor stator slot insulation material groove work
Main Parameter of Pressure Slot Insulation Machine Air Blower
Specifications |
lnterposer |
Specifications | Size slot machine |
Maximum outside diameter of stator |
100mm |
Stator stack height |
10mm-120mm |
Minimum inner diameter of stator |
60mm |
The maximum outer diameter of the stator |
200mm |
Stator stack helght |
8-50mm |
The outside diameter of the stator |
17mm-100mm |
Number of slots |
8-36 |
Height of edge foided |
2mm-5mm |
Speed of inserting |
0.5-0.7sec./slot |
The maximum thickness of the material |
0.15mm-0.3mm |
Drive motor |
1HP |
Paper feedin |
12mm-40mm |
Net weight |
250-400kg |
Tact time |
0.4-0.5 s/solt |
Dimension (L×W×H) |
1000mm×700mm×1000mm |
Power |
1.0kw |
Dimension of packing |
1270mm×820mm×1270mm | Weight | ≈350kg |
Pictures of Pressure Slot Insulation Machine Air Blower
Single-station Slot Insulation Machine
The MCA-0845 Slot Insulation Machine

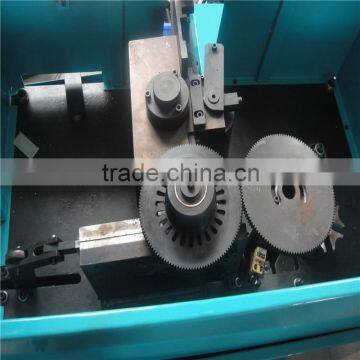

Insertion Machine
Spare parts of Pressure Slot Insulation Machine Air Blower
Stator after paper insulation
Stator Coils Made by Pressure Slot Insulation Machine Air Blower 3 phase motors
Packing of Pressure Slot Insulation Machine Air Blower
Loading of Pressure Slot Insulation Machine Air Blower
FAQ
1. How does XTY control the quality of the formed coil?
Our coil winding system consists of the parts like foot pedal control valves, pressure gauges and pressure plates. An engineer can control the winding speed, tougue, tension during the winding process. The gauge provides accurate tension readings during the winding process. The pressure plates within the tension system protect the wire insulation from getting damaged. All these features are used to make best quality coils.
2. How do transformer coil winders work?
Transformer winders consists of a microprocesser and and stepper motor to creat high winding speed. A spool of wire is affixed to the spool arm, and the wire is placed along tiny rollers for smooth movement. Winding parameters such as speed, wire pitch, turns and section winding are programed to the machine. Once the machine is swithed on, it begins the winding process.
Why Choose US?
1.Factory Based,competitive price. We are factory ourselves, We offer you directly factory price.
2. Big Production Capacity. Our factory covers an area of 40 acres with capacity of 3500 sets of Winding Equipment per year.
3.Long Factory History. Our factory have more than 8 years of experience in motor coil winding field.
4.Strategic Location. Our factory only 3kw to highway entrance. From factory to Xinzhen Airport only 1 hour drive by highway.
5. Latest Technology & Professional Engineering Team. Members of our technician team used to study abroad to update their knowledge.
6.Strice Quality Control System. Quality and Service is our core mission.
7.Experienced International Sales Team. Our sales mostly have been in international trading for over 5 years. Fluet in spoken English,Fast in response, customers' concern is always our concern.
8.Rich overseas project experience. We had customers from India, Turkey, Africa, South America,
America etc. To create value for customers is our infinite pursuit.
9.Timely Delivery and Guaranteed after-sale Service. Long-term cooperation with big logistic companies and shipping companies enabled us to deliver the machines as soon as possible. We send engineers abroad every year for assembling and technical support for customers.
