Specifications
winding electrical motor1 For ceiling fan stator,
2 Multi polar stator
3 Machine tool generator
4 Wind copper wire
Product Description: This winding machine for winding electrical motor support lots of wires and cables,including DC wires, AC wires,HDMI, PC wires,USB and other kinds of wires and cables.
This high speed winding machine for winding electrical motor can wind and tie wires as you needed.Such as adjusting the length of the wire's head and tail.The winding machine for winding electrical motor can also support wires with magnet ring ,commodities suffix wire,and other special wires.
We can even reform the winding electric machine for winding electrical motor for your special needs if you have large production of wires and cables.
Main Parameter of Winding Machines for Winding Electrical Motor
Winding speed(Max.) | 2000rpm |
Suitable wire diameter | 0.3-1.2mm |
Coil perimeter(Max) | 650mm |
Suitable motor poles | 6 |
Suitable motor poles | 2,4,6,8 |
Suitadle down-lead length(Max) | 260mm |
Winding direction | Self-selecting |
Counting range | 0-9999/Circle |
Counting precision | ±0.0/circle |
Operating voltage | Three phase 3PH 380V 50Hz |
Power | 9kw |
Air pressure | 0.6-1MPa |
Weight | about 1500Kg |
Dimension (L×W×H) | 2000mm×2000mm×2260mm |
Pictures of Winding Machine for Winding Electrical Motor

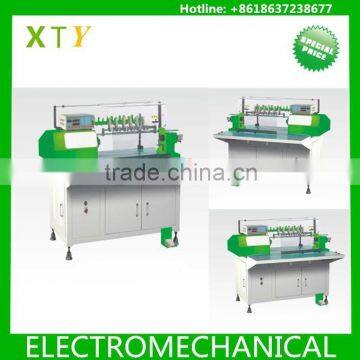

Single-station Winding Machine for winding electrical motor

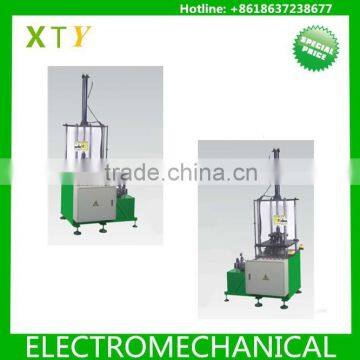

Coil inserting machines
Paper inserting machines
Lacing machines
Final forming machines
Winding Machine for winding electrical motor After Packing
Welcome to contact with us!
FAQ
1. How does XTY control the quality of the formed coil?
Our coil winding system consists of the parts like foot pedal control valves, pressure gauges and pressure plates. An engineer can control the winding speed, tougue, tension during the winding process. The gauge provides accurate tension readings during the winding process. The pressure plates within the tension system protect the wire insulation from getting damaged. All these features are used to make best quality coils.
2. How do transformer coil winders work?
Transformer winders consists of a microprocesser and and stepper motor to creat high winding speed. A spool of wire is affixed to the spool arm, and the wire is placed along tiny rollers for smooth movement. Winding parameters such as speed, wire pitch, turns and section winding are programed to the machine. Once the machine is swithed on, it begins the winding process.
3. How do XTY Optimize winding quality?
Poor winding quality takes place when there is a lot of munipulation of the coil through pounding and shapping of the coil. It also takes place when the wire has not been properly aligned on the rollers. The XTY winding system eliminates the pounding and shapping so there is less damage to the conductors, the winding machine and the operator.
Why Choose US?
1.Factory Based,competitive price. We are factory ourselves, We offer you directly factory price.
2. Big Production Capacity. Our factory covers an area of 40 acres with capacity of 3500 sets of Winding Equipment per year.
3.Long Factory History. Our factory have more than 8 years of experience in motor coil winding field.
4.Strategic Location. Our factory only 3kw to highway entrance. From factory to Xinzhen Airport only 1 hour drive by highway.
5. Latest Technology & Professional Engineering Team. Members of our technician team used to study abroad to update their knowledge.
6.Strice Quality Control System. Quality and Service is our core mission.
7.Experienced International Sales Team. Our sales mostly have been in international trading for over 5 years. Fluet in spoken English,Fast in response, customers' concern is always our concern.
8.Rich overseas project experience. We had customers from India, Turkey, Africa, South America,
America etc. To create value for customers is our infinite pursuit.
9.Timely Delivery and Guaranteed after-sale Service. Long-term cooperation with big logistic companies and shipping companies enabled us to deliver the machines as soon as possible. We send engineers abroad every year for assembling and technical support for customers.
Service Team
Welcome to contact with us!
