Help CenterLossless Bluetooth Audio Receiver HiFi Audio Receiver PB750
Related Products
-

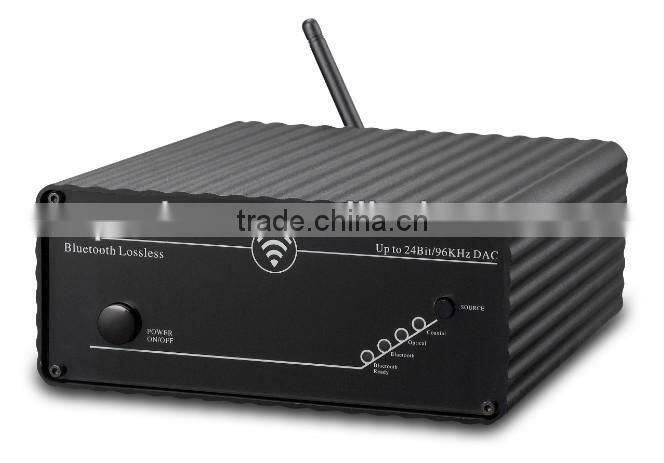

Lossless Bluetooth Audio Receiver HiFi Wireless Audio Receiver PB750US$ 210 - 250MOQ: 200 Pieces -
New Music Bluetooth Audio Receiver/micro Bluetooth Receiver HiFi Quality Bluetooth Receiver PB750US$ 210 - 250MOQ: 200 Pieces
-
Bluetooth Lossless Audio Receiver HiFi Quality Bluetooth Receiver PB750US$ 210 - 250MOQ: 200 Pieces
-
Podoor PB750, Bluetooth Lossless Audio Receiver, HiFi Quality Bluetooth ReceiverUS$ 216 - 222MOQ: 500 Pieces
-
Podoor PB745, Bluetooth Lossless Audio Receiver, HiFi Quality Bluetooth ReceiverUS$ 33 - 36MOQ: 500 Pieces
Specifications
HiFi Sound quanlityWireless transmission, not dock needed
Can connect with iPad/iPod/iPhone/mobile phone/Tablet
Product Features:
- Revolutionary device, fully overturn traditional way of listening music. Make enjoy music so freely and willfully.

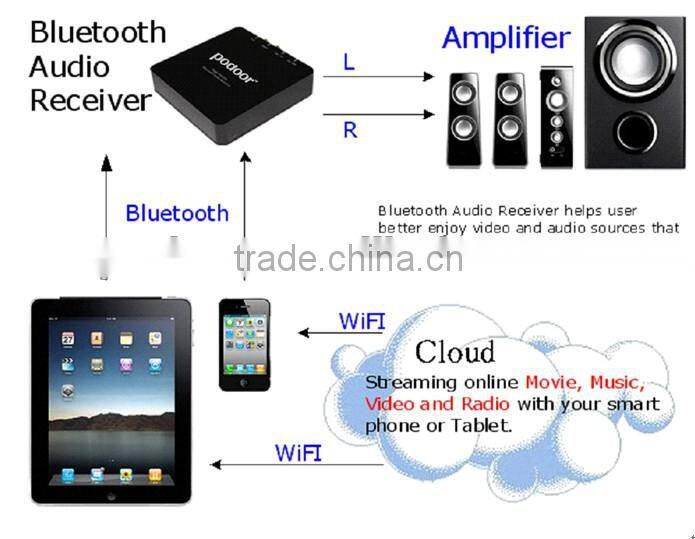

- Can easily realize the Bluetooth device, e.g. mobile phone, tablet computer, laptop, desktop, effective distance reaches 20 meters
- No cable and DOCK limits.
- Adopts top-level blue-tooth transmission and audio processing chip, provides HIFI sound
- Tone quality has been optimized specially for iPhones and iPads
- Small size for saving space, easy to be placed
- In order to ensure sound quality, please use sender with Bluetooth2.1/upper and lossless music.

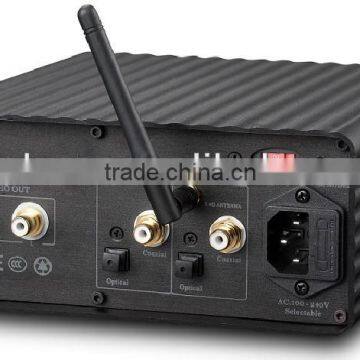

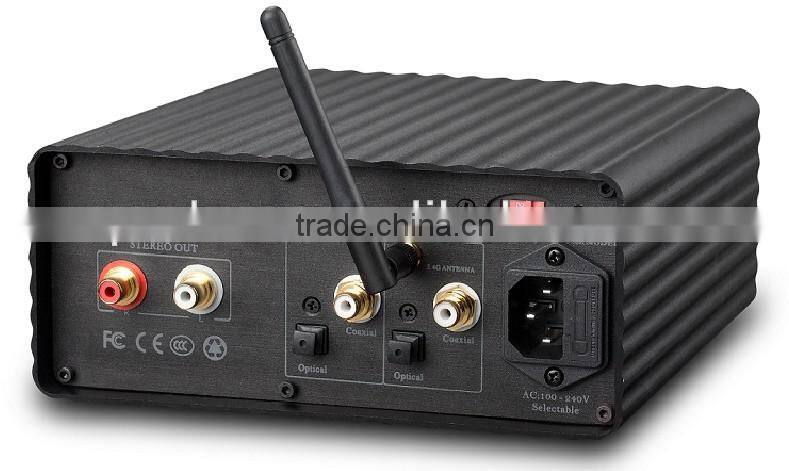

Interface
- Input: 1xBluetooth Lossless, 1xCoaxial,1xOptical
- Output: 1xRCA Stereo, 1xCoaxial, 1xOptical
- Power supply: 100~240V/50~60Hz AC, power system can be set up.

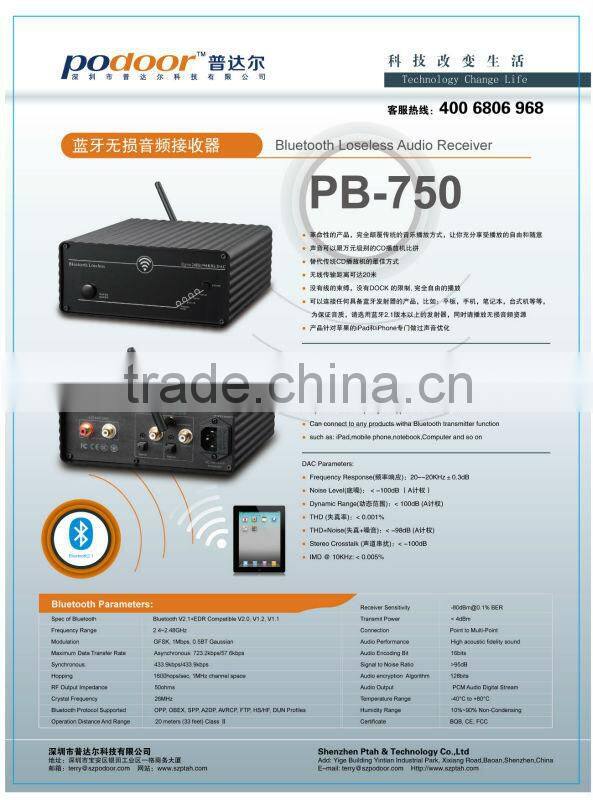

1. Technical parameter:
DAC Parameters:
- Frequency Response: 20--20KHz±0.3dB
- Noise Level: < -100dB (A)
- Dynamic Range: < 100dB (A)
- THD : < 0.001%
- THD+Noise: < -98dB (A)
- Stereo Crosstalk : < -100dB
- IMD 10KHz: < 0.005%
Bluetooth Parameters:
Spec of Bluetooth |
Bluetooth V2.1+EDR Compatible V2.0, V1.2, V1.1 |
Frequency Range |
2.4~2.48GHz |
Modulation |
GFSK, 1Mbps, 0.5BT Gaussian |
Maximum Data Transfer Rate |
Asynchronous: 723.2kbps/57.6kbps Synchronous: 433.9kbps/433.9kbps |
Hopping |
1600hops/sec, 1MHz channel space |
RF Output Impedance |
50ohms |
Crystal Frequency |
26MHz |
Bluetooth Protocol Supported |
OPP, OBEX, SPP, A2DP, AVRCP, FTP, HS/HF, DUN Profiles |
Operation Distance And Range |
20 meters (33 feet) Class Ⅱ |
Receiver Sensitivity |
-80dBm 0.1% BER |
Transmit Power |
< 4dBm |
Connection |
Point to Multi-Point |
Audio Performance |
High acoustic fidelity sound |
Audio Encoding Bit |
16bits |
Signal to Noise Ratio |
>95dB |
Audio encryption Algorithm |
128bits |
Audio Output |
PCM Audio Digital Stream |
Temperature Range |
-40°C to +80°C |
Humidity Range |
10%~90% Non-Condensing |
Certificate |
BQB, CE, FCC |
Working Surrounding:
