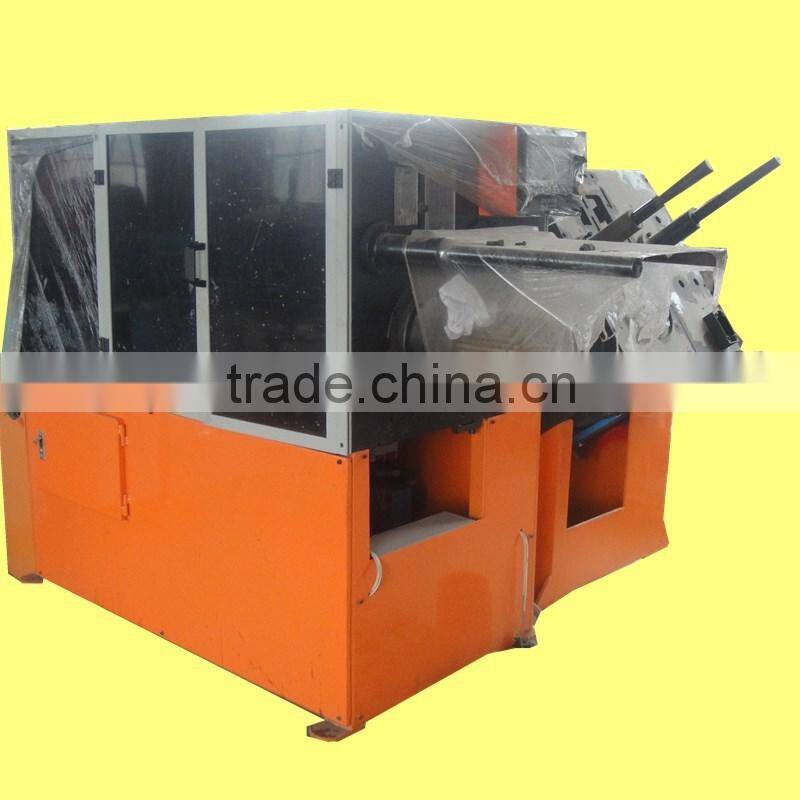

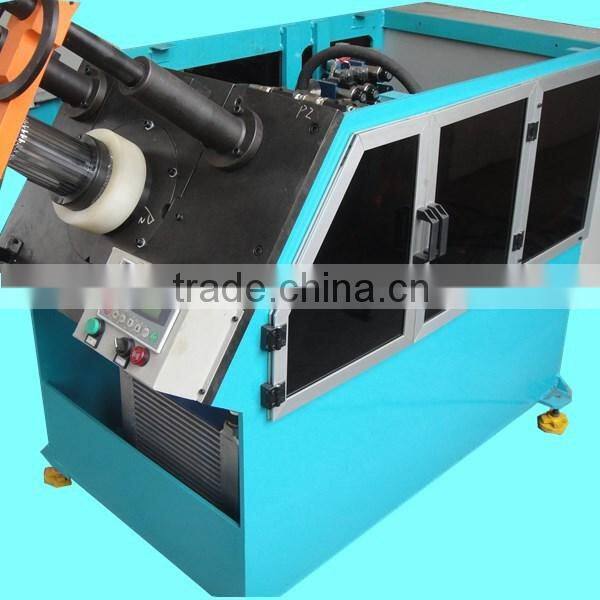

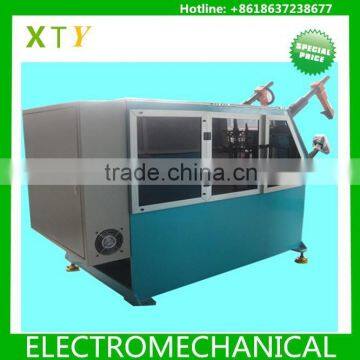

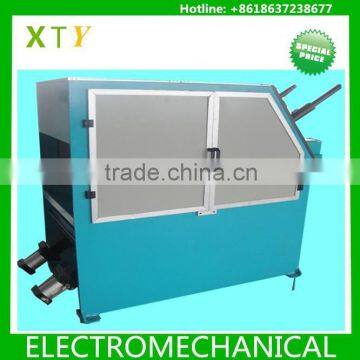

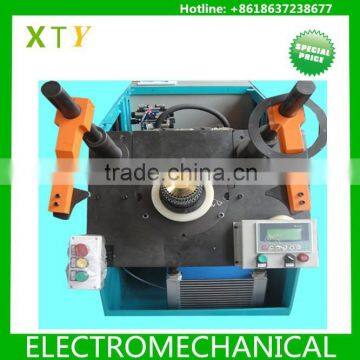

MJR-5 Hydraulic Coil Inserting Machine
1, Overview of Coil Inserting Machine
Coil inserting machine is a kind of embedded motor iron core coil machinery production equipment, this machine is used for induction motor stator which meet the specification in the below form date
Specification of Coil Inserting Machine:
Type |
MJR-5 |
Stator stack thickness |
5mm-110mm |
Maximum outside diameter of stator |
160mm |
Inner diameter of stator |
17mm-98mm |
Pump Displacement |
30F |
Air pressure |
/ |
Power supply |
380V/50Hz |
Power |
3.75Kw |
Dimension (L×W×H) |
1500mm×740mm×1600mm |
Weight |
1000kg |
2.Benefits of Coil Inserting Machine
(1) The coil inserting machine includes misuse of personal safety and product safety protection devices
(2) The coil inserting machine has memory function after power energizing, so unfinished work before power outage can continue to complete
(3) When equipment failure occurs, the man-machine interface display fault alarm prompt, it is convenient for maintenance
(4 The mold can be removed in order to change the category of an embedded line
(5)Human-Computer interaction is good
(6)Mold is made by high toughness mold steel
(7) Linkage start switch ensures safety of operator
Transfer Former of Coil Inserting Machine
Precision Positioner of Coil Inserting Machine

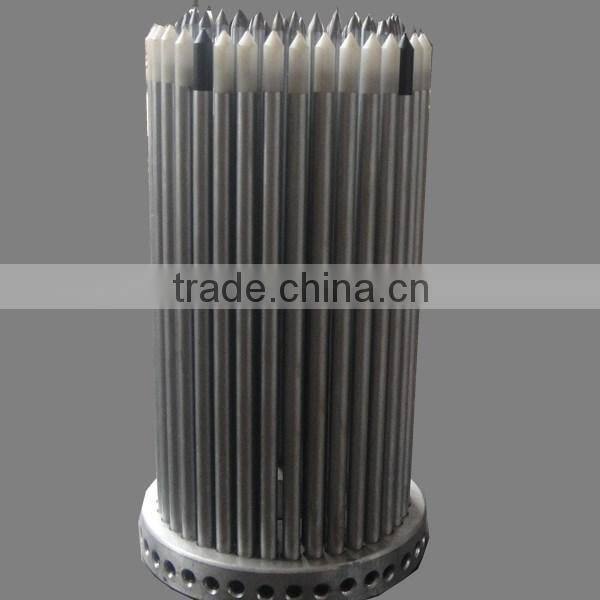

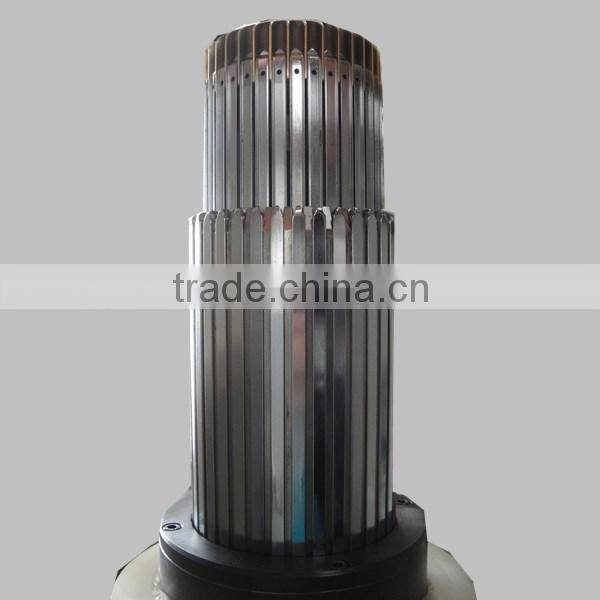

High Quality Mould of Coil Inserting Machine
3.Construction of Coil Inserting Machine
The coil inserting machine includes mechanical transmission system, frequency control system, PLC integrated control system, touch screen and mold.
(1) If the technical parameter and stator model is same, this machine can automatically insert copper wire and aluminium wire
(2).Production shift ≤16s/set (exclude the man-hours for auxiliary work)
(3) Qualified rate of wire inserting per time ≥98.5%, after modification, qualified rate ≥99.5%
Coil inserting machine after packing work
4,Other Type of Coil Inserting Machine
Horizontal coil inserting machine
Servo coil inserting machine
Coil Inserting Machine Loading Process
Coil Inserting Machine Shipping Process
5,Company Introduction:
We are top 3 factory in China to make motor machinery and equipment, products mainly include automatic winding machine, plug machine, lacing machine, coil inserting machine, shaping machine, etc., we adopt foreign advanced technology
and processes, corporate willpower to improve electromechanical fully automated factory production capacity, with the most stable quality and customer service to get the biggest trust.
