Permanent Neodymium Hook Magnets for Sale

Permanent Neodymium Hook Magnets for Sale thumbnail-1
Permanent Neodymium Hook Magnets for Sale photo-1
US$ 1 - 5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
RC-Magnet
Model Number:
Neodymuim
Contact Supplier Request Quote Chat Now
Hangzhou Rongchang Magnet Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name RC-Magnet
Model Number Neodymuim
Type Permanent
Composite Neodymium Magnet
Shape Other, rod
Application Industrial Magnet

Specifications

1.Good chemistry stability and strong anti-corrosion
2.Excellent stability and magnetic performance
3.Neodymium Hook Magnets


Product Description







1. Neodymium magnet is mainly made of neodymium, iron and boron.

2. Characteristics of Neodymium magnet are: High remanence, high coercive force, high energy product and high performance/cost ratio and it is easily formed into various sizes.

3. Material grade: N35-N52, N35M-N45M, N35H-N45H, N35SH-N42SH, N30UH-N38UH, N28EH-N38EH, N30AH-N33AH.

4. Coating: Zinc, Nickel, Aurum, Silver, Epoxy, Parylene.

5. Application: Speakers, DC motors, Liner motors, MRI, Medical and health products, etc.



The propert we can offer as follows,

Grade Remanence
    (Br)		 Coercive Force
    (Hcb)		 Intrinsic      Coercivity
      (Hcj)

Maximum Energy

Product(BH)max

Temp.
Coefficient
 T   KGS KA/m Koe kA/m MGOe     °C
N33 1.13-1.18           11.3-11.8 ≥ 836 ≥10.5 ≥ 955 31-33   80
N35 1.18-1.23 11.8-12.3 ≥ 868 ≥10.8 ≥ 955 33-36  80
N38 1.22-1.28 12.2-12.8 ≥ 899 ≥10.8 ≥ 955  36-39  80
N40 1.26-1.31 12.6-13.1 ≥ 923 ≥11.6 ≥ 955  38-41  80
N42 1.28-1.34 12.8-13.4 ≥ 923 ≥ 11.6 ≥ 955  40-43  80
N45 1.34-1.39 13.4-13.9 ≥ 876 ≥ 11 ≥ 955  43-46  80
N48 1.38-1.42 13.8-14.2 ≥ 836 ≥ 10.5 ≥ 876 45-48  80
N50 1.40-1.46 14.0-14.6 ≥ 836 ≥ 10.5 ≥ 876 47-51  80
N52 1.43-1.48 14.3-14.8 ≥ 796 ≥10.9 ≥ 876 50-53  80
N35M 1.18-1.23 11.8-12.3 ≥ 868 ≥ 10.9 ≥ 1114 33-36  100
N38M 1.22-1.28 12.2-12.8 ≥ 899 ≥ 11.3 ≥ 1114 36-39  100
N40M 1.26-1.31 12.6-13.1 ≥ 923 ≥ 11.6 ≥ 1114  38-41  100
N42M 1.28-1.34 12.8-13.4 ≥ 923 ≥ 11.6 ≥ 1114 40-43  100
N45M 1.34-1.39 13.4-13.9 ≥ 876 ≥ 11 ≥ 1114 43-46  100
N33H 1.14-1.19 11.4-11.9 ≥ 836 ≥ 10.5 ≥ 1353 31-34  120
N35H 1.18-1.23 11.8-12.3 ≥ 868 ≥ 10.9 ≥ 1353 33-36  120
N38H 1.22-1.28 12.2-12.8 ≥ 869 11.3 ≥ ≥ 1353 36-39  120
N40H 1.26-1.31 12.6-13.1 ≥ 923 ≥ 11.6 ≥ 1353 38-41  120
N42H 1.28-1.34 12.8-13.4 ≥ 923 ≥ 11.6 ≥ 1353 40-43  120
N30SH 1.08-1.13 10.8-11.3 ≥ 810 ≥ 10.2 ≥ 1592 28-31  150
N33SH 1.14-1.19 11.4-11.9 ≥ 836 ≥ 10.5 ≥ 1592 31-34  150
N35SH 1.18-1.23 11.8-12.3 ≥ 868 ≥ 10.5 ≥ 1592 33-36  150
N38SH 1.22-1.28 12.2-12.8 ≥ 899 ≥ 11.3 ≥ 1592 36-39  150
N40SH 1.26-1.31 12.6-13.1 ≥ 923 ≥ 11.6 ≥ 1592 38-41  150
N28UH 1.03-1.09 10.3-10.9 ≥ 764 ≥ 9.6 ≥ 1990 26-29  180
N30UH 1.09-1.14 10.9-11.4 ≥ 812 ≥ 10.2 ≥ 1990 28-31  180
N33UH 1.13-1.17 11.3-11.7 ≥ 852 ≥ 10.7 ≥ 1990 31-33  180
N35UH 1.17-1.24 11.7-12.4 ≥ 868 ≥ 10.9 ≥ 1990  33-37  180
N28EH 1.03-1.09 10.3-10.9 ≥ 780 ≥ 9.8 ≥ 2388 26-29  200
N30EH 1.08-1.13 10.8-11.3 ≥ 812 ≥ 10.2 ≥ 2388 18-31  200
N33EH 1.14-1.21 11.4-12.1 ≥ 852 ≥ 10.7 ≥ 2388 31-35  200
N35EH 1.17-1.24 11.7-12.4 ≥ 868 ≥10.9 ≥ 2388  33-37  200
N38EH 1.22-1.29 12.2-12.9 ≥ 915 ≥ 11.5 ≥ 2388 36-40  200
N30AH 1.08-1.15 10.8-11.5 ≥ 804 ≥ 10.1 ≥ 2786 28-32  230
N33AH 1.14-1.21 11.4-12.1 ≥ 852 ≥ 10.7 ≥ 2786 31-35  230









The details of the magnet,




Neodymium Hook Magnets

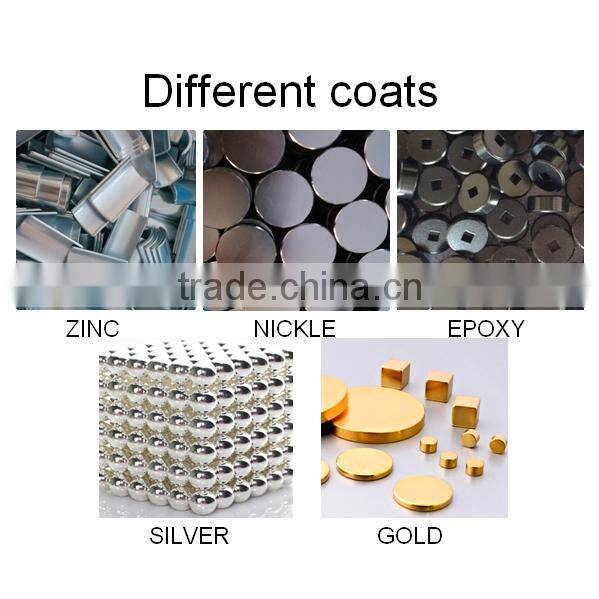

The coating we can do as below,



Permanent Neodymium Hook Magnets for sale

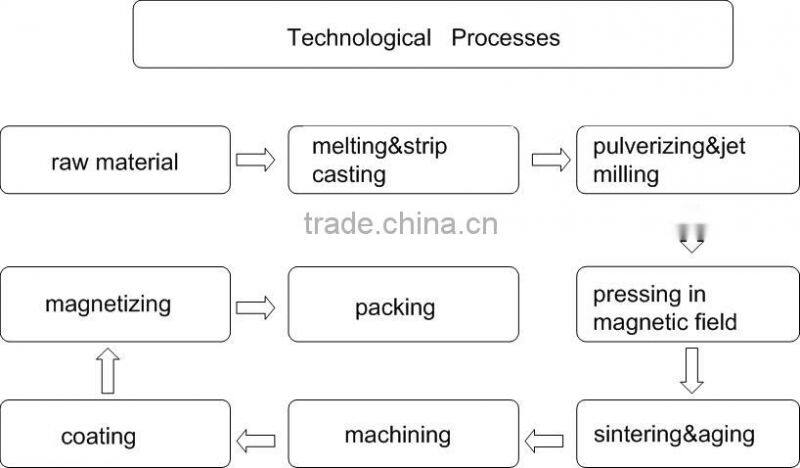

The process for producing magnet





Permanent Neodymium Hook Magnets for salePermanent Neodymium Hook Magnets for sale

The certificates we can offer as follows,





Permanent Neodymium Hook Magnets for sale



Permanent Neodymium Hook Magnets for sale





The inspect tools and machines we have as below,



Permanent Neodymium Hook Magnets for sale



 The other magnets we can offer as follows,





Permanent Neodymium Hook Magnets for salePermanent Neodymium Hook Magnets for salePermanent Neodymium Hook Magnets for salePermanent Neodymium Hook Magnets for sale





The exhibition in Germany,



Permanent Neodymium Hook Magnets for sale

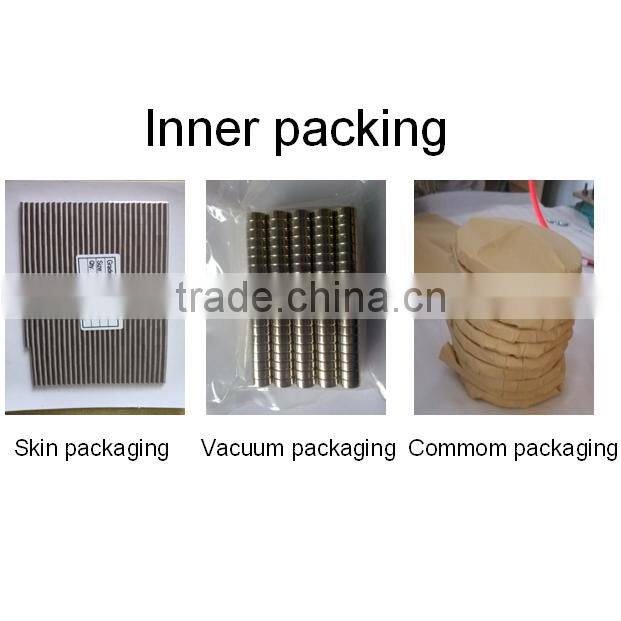

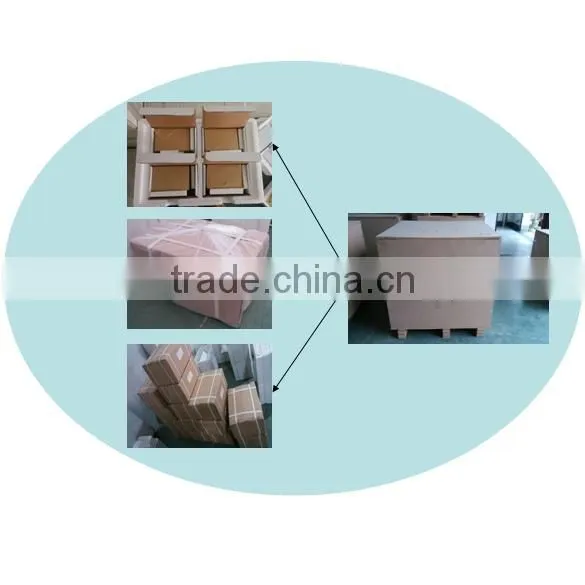

Packaging & Shipping



Permanent Neodymium Hook Magnets for sale



Permanent Neodymium Hook Magnets for sale




Our Services

 1.According to your request to produce magnets and strictly control the quality with our professional   term.

2.All magnets passed ISO9001 and SGS with our strict inspection.

3. Any enquiries from you will be replied in 24 hours.

Contact information

Name: Carol zhang

Position: Sales

Tel:+0086-571-82870968-8010

Mobil:+0086-15990055702

Skype:carolzhang1123



OUR TENENT IS THAT QUALITY IS OUR CULTURER AND CUSTOMER IS FIRST.






Company Information





Hangzhou Rongchang Magnet Co.,Ltd is the One of Magnet Manufacturer in China that have engaged in magnetic material for 12 yesars.

It is located in Qiaonan development zone of Xiaoshan, 2nd bridge Village, Ningwei Town, Xiaoshan District, Hangzhou City, Zhejiang Province.

And it is near International airport of Xiaoshan about 3 kilometers.150 workers, 12000m³for our factory, annual production capacity is 800Tons.

Our main products are Permanent Sintered Neodymium-Ferrum-Boron(NdFeB) magnet, Samarium- Cobalt(SmCo) magnet, Aluminum-Nickel-

Cobalt(AlNiCo) magnet and related assemblings.

All of our magnets have authorized by ISO9001 and SGS certificate.

Our main markets are American, Europe, Mid-East, Korea, Japan, Hongkong, Taiwan and Inland.

RC-Magnet warmly welcome all friends all over the world to visit our factory and establish bussiness relationship.







FAQ



The questions maybe you will have as below,



1. What is the way for payment?

Carol: We can accept T/T, L/C, Western Union,Paypal



2.What about the delivery time?

Carol: If the goods are in stock, we will sent the goods after we sign the contract and decide the best payment.

         If the goods are out of stock, the goods should be produced from raw material to shipping. The delivery time is

         about 20-30days.



3.How do we transport?

Carol:According to your request. Such as by sea, by air, by interntional express.



4.What is our packing?

Carol: According to your request. Such as damp proof packing, non-magnetic shield packing.



5.What are our main products?

Carol: Ndfeb, Alnico, Smco,Ferrite and holder are our main products.



6.Did we have the exhibitiones?

Carol: yes, we had the exhibition in shanghai,Germany and Japan. And we always view the exhibitiones in various cities.



7. What is our annual output?

Carol: 800Tons per year.



8. What certificates do we have now?

Carol: ISO9001 and SGS



9. Are you the Manufactory in China?

Carol: Yes.



10. How long do we run?

Carol: For 12 years.
