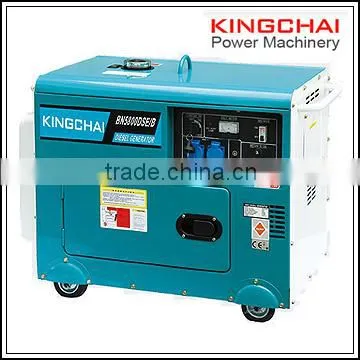

KINGCHAI Power Machinery 5kva/5.5kva Silent Diesel Generator Set for Sale!!!
KINGCHAI Power Machinery 5kva/5.5kva Silent Diesel Generator Set for sale!!!
- Specificatioin:
| Model | KC5800DSE | KC5800DSE/B | KC5800DSE/D-3 | |||||
| Engine model | KC186F/E | KC186F/E | KC186FA/E | |||||
| Rated frequency (Hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated voltage (V) | 230 | 240/120 | 230 | 240/120 | 230 | 240/120 | 400/230 | 420/240 |
| Rated current (A) | 19.5 | 20.8/41.7 | 19.5 | 20.8/41.7 | 19.5 | 20.8/41.7 | 9.2 | 8.3 |
| Rated output power (Kw) | 4.2 | 5.0 | 4.2 | 5.0 | 4.2 | 5 | 4.2 | 6.0 |
| Max.output power (Kw) | 5.0 | 5.5 | 5.0 | 5.5 | 5.0 | 5.5 | 6.3 | 7.6 |
| Rated rotation speed (rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
| Power factor (cosØ) | 1 | 1 | 1 | |||||
| Bore×Stroke(mm) | 86×70 | 86×70 | 86×72 | |||||
| Compression ratio | 19:1 | |||||||
| Starting system | key start | |||||||
| Rotation direction | clockwise | |||||||
| Lubrication system | pressure splashed | |||||||
| Displacement | 406 | 406 | 418 | |||||
| Fuel consumption(g/kw.h) | <273/286 | |||||||
| Lube oil type | SAE-10W30 | |||||||
| Structure type | SILENT | |||||||
| Starting system | ELECTRIC STARTER | |||||||
| Fuel tank capacity(L) | ||||||||
| Oil capacity(L) | 1.65 | 1.65 | ||||||
| Noise level (dB) | 75 | 75 | ||||||
| Overall dimension (mm) | 960×570×760 | 960×570×760 | 960×570×760 | 960×570×760 | ||||
| Net weight (Kg) | 165 | 165 | 165 | 165 | ||||
-Features & Picture
1.Gensets with low oil pressure,over-voltage,over-loaded protection system,running safety and reliable.
2.Several control panel models:ATS,Digital,normal panel or remote control panle etc.for clients option.
3. Portable, beautiful shape, with wheel and handle.
3. low noise and small vibration
- Orther gaoline generator productions

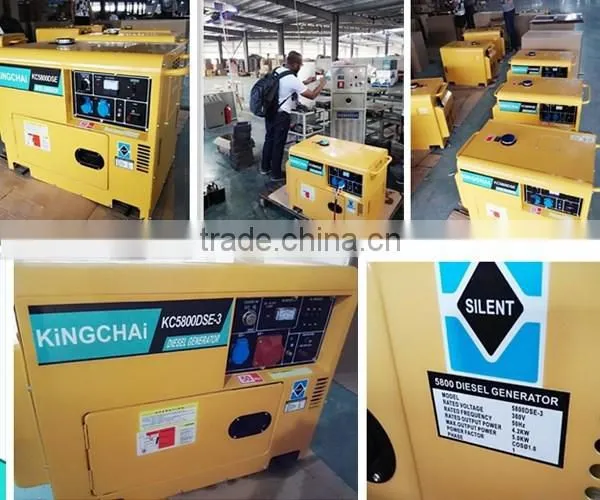

-Factory & Workshop

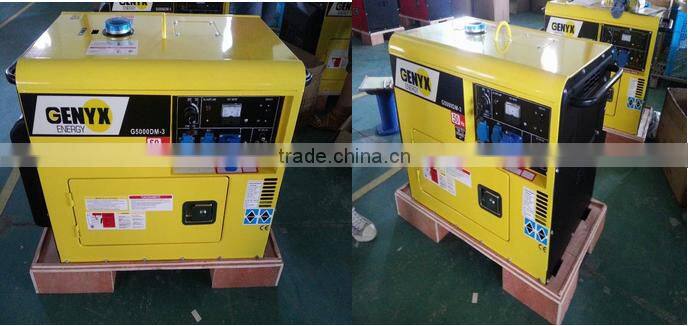

- Packaging & Shipping
-Certificate
-Contact Information:
-FQA:
1.Q:Are you a factory or trading company?
A: We are a factory
2.Q:Where is your factory located?
A: Our factory is in Yongkang City, Zhejiang Province, China.
we have one offce in Taizhou city, which is near Ningbo & Shanghai.
3.Q:What is the material of your products
A: Iron,Steel,plastic,etc.
only new material can be used for our products
4.Q:How about quality control in your factory?
A:"Quality is first, Customers are friends".
Yongkang Fushitong people are always paying great attentions to quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
5.Q:How about guarantee?
A: It's within three months after goods is discharged in the destination.
During that period,if some breakdown easily spare parts need to change,my factory offers free.
For example, fuel cock,spark plug,starting hand,etc.
