Specifications

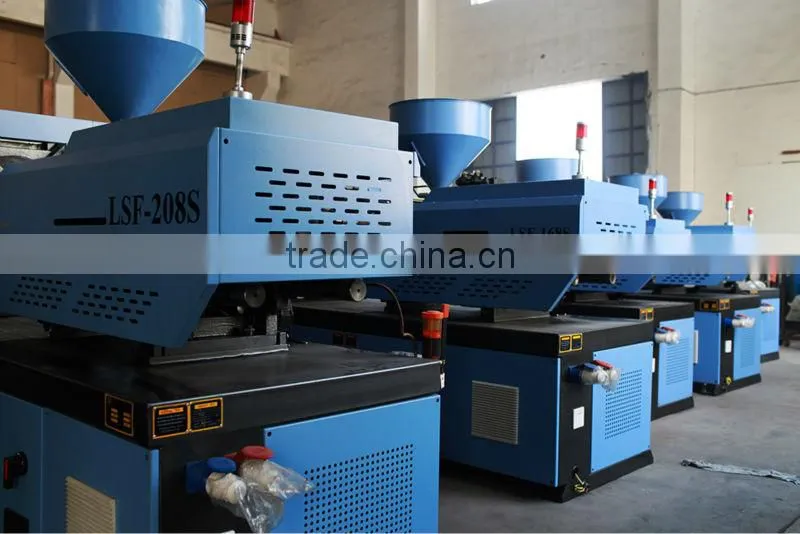

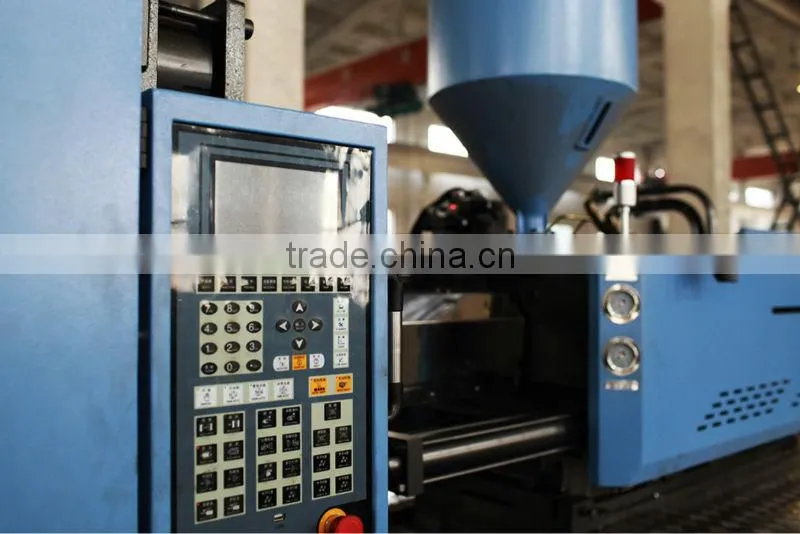

1.Longsheng brand energy saving injection Machine ,2.Servo system,high quality,costless in maintaining
features of Longsheng brand energy saving injection Machine 1. shortening plasticizing time and save energy by adopting servo motor of high torque and high efficiency.
2. servo motor of steady performance,equiped with pressure feedback device of high sensitive and precision,which forms closed loop exact uce the cycle time and improve the productivity.
3. while improving the injection precision,it saves electricity and water and lower the noise by a great degree.it is a innovation in the history of hydraulic injection machine.
|
INJECTION UNIT |
|
Unit |
LSF-620 |
||
A |
B |
C |
|||
Screw Diameter |
Mm |
90 |
95 |
100 |
|
Screw L/D Ratio |
L/D |
21.1 |
20 |
19 |
|
Short Size |
Cm3 |
2670 |
2970 |
3290 |
|
Injection weight |
G |
2430 |
2700 |
3000 |
|
Injection Rate |
g/s |
470 |
530 |
580 |
|
Plasticizing capacity |
g/s |
75 |
88 |
110 |
|
Injection Pressure |
Mpa |
184 |
165 |
149 |
|
Screw Speed |
Rpm |
0-125 |
|||
|

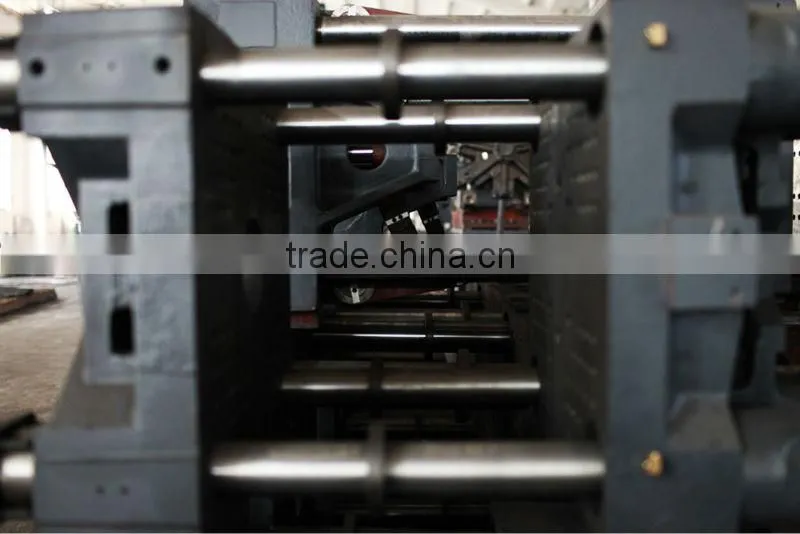

CLAMPING UNIT |
Clamp Force |
KN |
6200 |
||
Space Between Tie Bars |
mm |
840*820 |
|||
Toggle Stroke |
mm |
845 |
|||
Max. Mold Height |
mm |
860 |
|||
Min. Mold Height |
mm |
350 |
|||
Ejector Stroke |
mm |
220 |
|||
Ejector Tonnage |
KN |
150 |
|||
Ejector Number |
P |
13 |
|||
|
OTHERS |
Max. pump Pressure |
Mpa |
16 |
||
Pump motor powder |
Kw |
55 |
|||
Heater Power |
Kw |
25 |
|||
Machine Dimension(L*W*H) |
M |
9*2.3*3 |
|||
