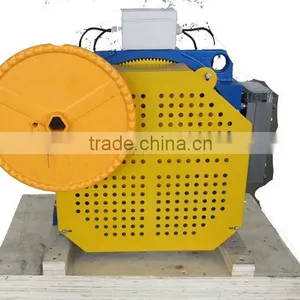

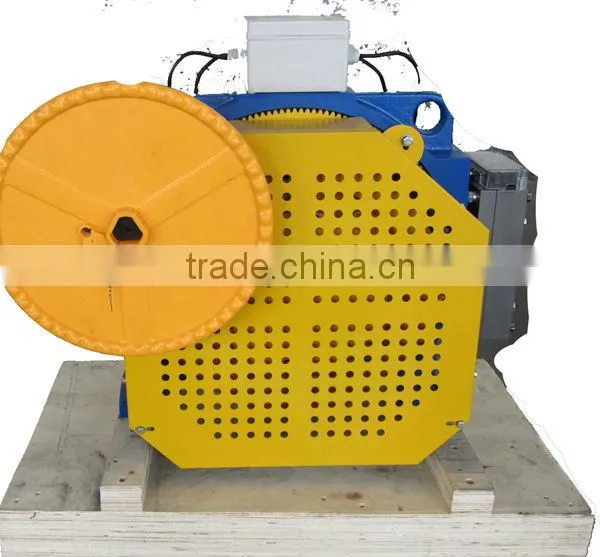

Help Center5.5KW Permanent Magnetism Synchronous & Gearless Traction Machine
Related Products
-
2.8KW Permanent Magnetism Synchronous & Gearless Elevator Traction MotorUS$ 300 - 5,360MOQ: 1 Set -
Single Phase AC MotorUS$ 55 - 65MOQ: 100 Cartons
-
3.4KW Permanent Magnetism Synchronous & Gearless Traction MachineUS$ 300 - 5,360MOQ: 1 Set
-
11KW Elevator Traction MotorUS$ 300 - 5,360MOQ: 1 Set
-
11.7KW Permanent Magnetism Synchronous & Gearless Traction MachineUS$ 300 - 5,360MOQ: 1 Set
Specifications
1, Compatible For All Kinds of Frequency Converter2, Outer Rotor Sturcture Design
3, Gearless
4, High Efficiency & Low Noise
AWWYT series Permanent Magnetism Synchronous & Gearless Traction Machine
Product Features
Precise design; Compatible design with all kinds of frequency converters;
High efficiency, low energy consumption, low noise.
Stable, safe, reliable;
Suitable for a small machine room, without room, Simple installing, easy to debug
Structure Specification
Adopt the outer rotor structure;
The block-type brake;
Sheave is made of QT600-3 nodular cast iron;
The main shaft is made of high quality carbon steel;
Driving end with high quality imported bearings;
Using a manual barring device
|
|
|
|
|
|
|
|
|
|
|
Model |
Load |
Speed |
Output |
Current |
Speed |
Frequency |
Sheave Dia. |
Weight |
Torque |
Rope |
Unit |
Kg |
m/s |
kW |
A |
rpm |
Hz |
mm |
Kg |
Nm |
mm |
AWWYT-20.800.100 |
800 |
1 |
5.5 |
12.7 |
96 |
6 |
Φ400 |
350 |
550 |
5 X φ10 |
Capacity |
800/1000Kg |
Voltage |
380V |
Roping |
2:1 |
Brake Voltage |
DC110V/55V |
Shaft Load |
3500Kg |
CWT |
0.45 ~ 0.5 |
Protection Class |
IP40 |
Insulation Class |
F |
Duty |
S5-40% 240F/h |
Noise, Vibration |
|
Motor Noise |
≤58dB |
|
Vibration Speed Value Horizontal Vertical |
≤0.35(mm/s) ≤0.35(mm/s) |
Factory Tour:
1, Motor Housing Machining
2. Motor Shaft Machining
3. Motor Stator Vaccum Varnishing Insulation Treatment
4. Test Lab According to Latest Efficiency Test Standard
