Help CenterYY Series Motor
Related Products
Specifications
single phase capacitor run induction motorProtection Class:IP44
Insulation Class:B or E
Cooling type:IC401

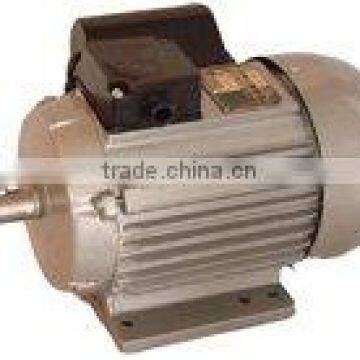

YY series
Single-phase capacitor run
Asynchronous motors
Aluminum and iron housing
YY series aluminum housing single-phase capacitor-run asynchronous motors, with latest design in entirety, are made of selected quality materials and conform to the IEC standard. YY motors have good performance, safety and reliable operation, nice appearance, and can be maintained very conveniently, while with low noises, little vibration and at the same time of light weight and simple construction the multiple of starting torque is 0.3—0.7.
These series motors are suitable for the occasion where their requirements of starting torque is low and long-term continuous working, such as home electric appliances, pimps, fans, and recording meters, etc.
| TYPE | RATED | OURPUT | AT FULL LOAD | MAX TORQUE RATED TORQUE | |||
| (KW) | (HP) | SPEED R.P.M | CURRENT ( A) | EFF (%) | POWER FACTOR | ||
| YY7112 | 0.37 | 1/2 | 2800 | 2.6 | 67.00 | 0.92 | 1.7 |
| YY7122 | 0.55 | 3/4 | 2800 | 3.76 | 70.00 | 0.92 | |
| YY7114 | 0.25 | 1/3 | 1400 | 2.07 | 61.00 | 0.92 | |
| YY7124 | 0.37 | 1/2 | 1400 | 2.95 | 62.00 | 0.92 | |
| YY8012 | 0.75 | 1 | 2800 | 4.98 | 72.00 | 0.92 | |
| YY8022 | 1.1 | 1 1/2 | 2800 | 7.02 | 75.00 | 0.95 | |
| YY8014 | 0.55 | 3/4 | 1400 | 4.25 | 64.00 | 0.92 | |
| YY8024 | 0.75 | 1 | 1400 | 5.45 | 68.00 | 0.92 | |
| YY90S-2 | 1.5 | 2 | 2800 | 9.44 | 76.00 | 0.95 | |
| YY90S-4 | 1.1 | 1.5 | 1400 | 7.65 | 71.00 | 0.95 | |
| YY90L-2 | 2.2 | 3 | 2800 | 13.67 | 77.00 | 0.95 | |
| YY90L-4 | 1.5 | 2 | 1400 | 10.15 | 73.00 |
0.95
|
|
Factory Tour:

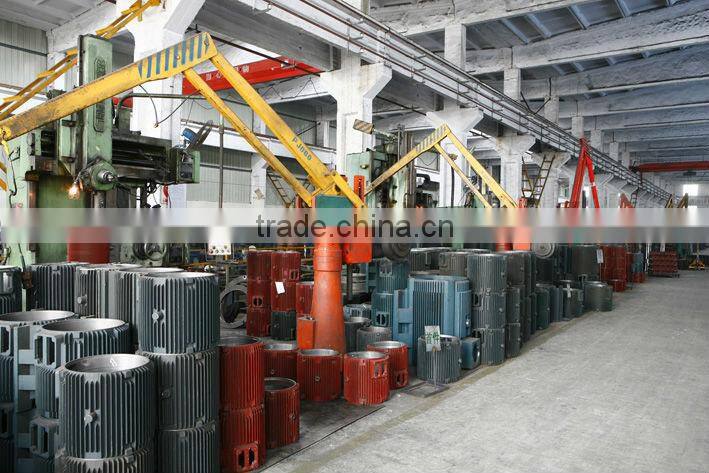

1, Motor Housing Machining

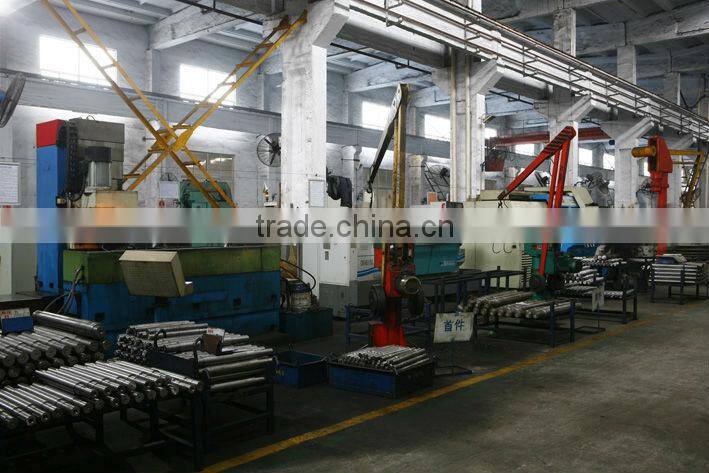

2. Motor Shaft Machining

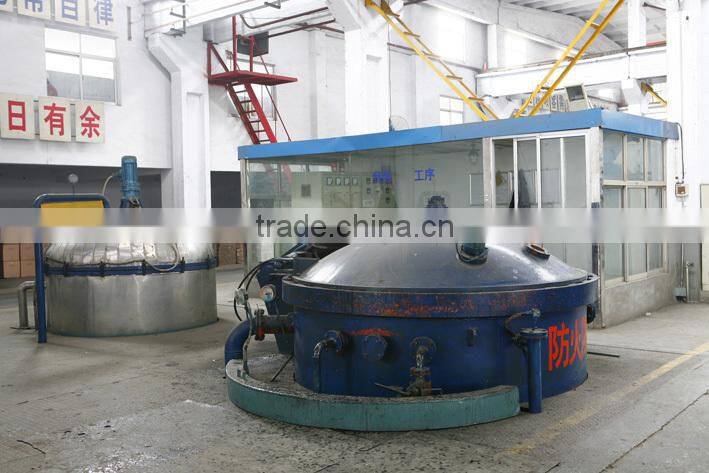

3. Motor Stator Vaccum Varnishing Insulation Treatment

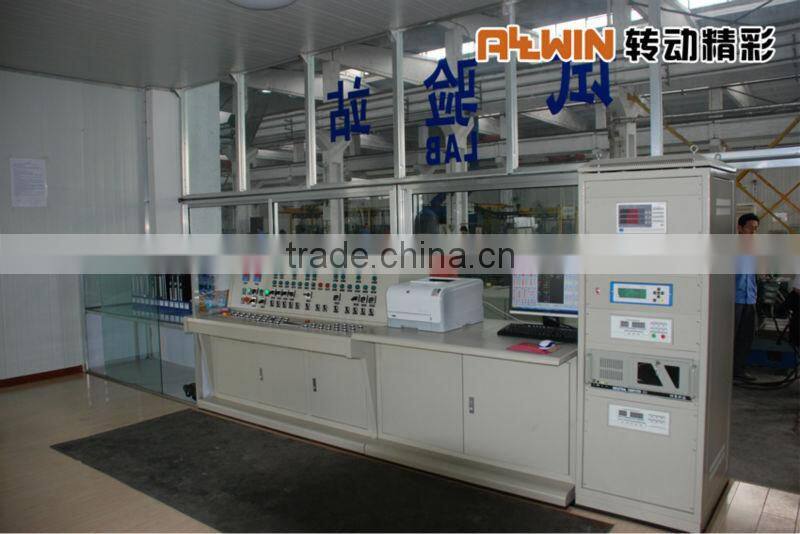

4. Test Lab According to Latest Efficiency Test Standard
