Specifications
Motor IEC Frame: 71 ~ 100Power: 0.18KW ~ 3.0KW
Protection Class:IP44
Insulation Class:B
Cooling type:IC401

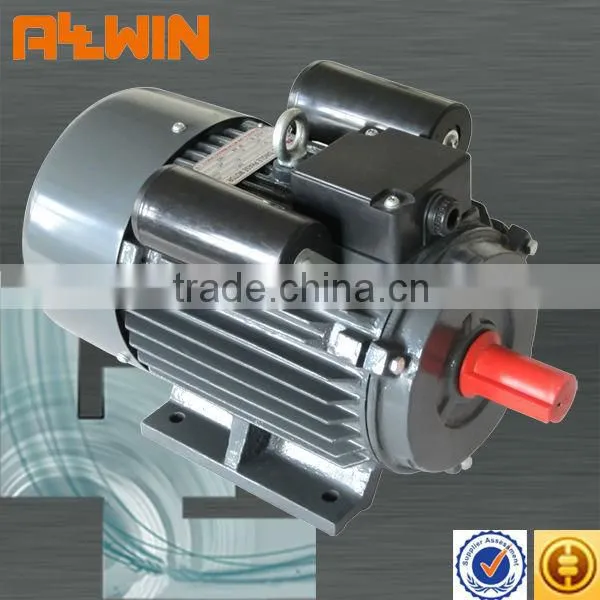

YL series
Single-phase capacitor start and capacitor run asynchronous motor
Parameters:
Motor IEC Frame: 71 ~ 100
Power: 0.18KW ~ 3.0KW
Protection Class:IP44
Insulation Class:B
Cooling type:IC401
Description :
YL series aluminum housing single-phase dual-capacitor asynchronous motors, with latest design in entirety, are made of selected quality materials and conform to the IEC standard. ML motors have good performance, safety and reliable operation, the multiple of starting torque is up to 2.5.
These series motors are suitable for the occasion where the requirements of big starting torque and high over load, such as air-compressors, pumps, and many other small machines.
|
TYPE |
RATED | OURPUT | At 100% Load | LOCKEDTORQUERATED TORQUE | MAXTORQUE RATED TORQUE | |||
| (KW) | (HP) | SPEED R.P.M | CURRENT A | EFF (%) | POWER FACTOR | |||
| YL7112 | 0.37 | 1/2 | 2800 | 2.73 | 67.00 | 0.92 | 1.8 | 1.7 |
| YL7122 | 0.55 | 3/4 | 2800 | 3.88 | 70.00 | 0.92 | 1.8 | |
| YL7114 | 0.25 | 1/3 | 1400 | 1.81 | 62.00 | 0.92 | 1.8 | |
| YL7124 | 0.37 | 1/2 | 1400 | 2.66 | 65.00 | 0.92 | 1.8 | |
| YL8012 | 0.75 | 1 | 2800 | 5.15 | 72.00 | 0.92 | 1.8 | |
| YL8022 | 1.1 | 1 1/2 | 2800 | 7.02 | 75.00 | 0.95 | 1.8 | |
| YL8014 | 0.55 | 3/4 | 1400 | 4 | 68.00 | 0.92 | 1.8 | |
| YL8024 | 0.75 | 1 | 1400 | 5.22 | 71.00 | 0.92 | 1.8 | |
| YL90S-2 | 1.5 | 2 | 2800 | 9.44 | 76.00 | 0.95 | 1.7 | |
| YL90S-4 | 1.1 | 1 1/2 | 1410 | 8.34 | 73.00 | 0.95 | 1.7 | |
| YL90L-2 | 2.2 | 3 | 2900 | 13.1 | 77.00 | 0.95 | 1.7 | |
| YL90L-4 | 1.5 | 2 | 1410 | 9.7 | 75.00 | 0.95 | 1.7 | |
| YL100L1-2 | 3 | 4 | 2900 | 18.2 | 79.00 | 0.95 | 1.7 | |
| YL100L1- 4 | 2.2 | 3 | 1440 | 13.67 | 76.00 | 0.95 | 1.7 | |
| YL100L1-4 | 3 | 4 | 1440 | 18.64 | 77.00 | 0.95 | 1.7 | |
Factory Tour:
1. Motor Housing Machining
2. Motor Shaft Machining
3. Motor Stator Vaccum Varnishing Insulation Treatment
f
4. Test Lab According to Latest Efficiency Test Standard
