voltage up to 400V,rated current up to 24A and rated frequency 50/60Hz
The product Circuit
Construction and Feature
Compact and modular design
Electro-magnetic mechanism free of noise
Contact position indication
Big contact capacity and long endurance
Automatic and manual type
Technical Data
Power circuit
Rated current:16,25,40,63A
Rated voltage
230V 2pole
400V 4pole
Rated frequency5:0/60Hz
Remote control circuit(coil)
Control voltage:24V, 220V-240V
Rated frequency:50/60Hz
Mechanical endurance:100,000 cycles
Electrical endurance:30,000 cycles
Ambient temperature: -5℃...+60℃
Connection terminal pillar terminal with clamp
Installation
On symmetrical din rail
Panel mounting
Contact form
2P: 2NO, 2NC, 1NO+1NC
4P: 4NO, 4NC, 3NO+1NC, 2NO+2NC

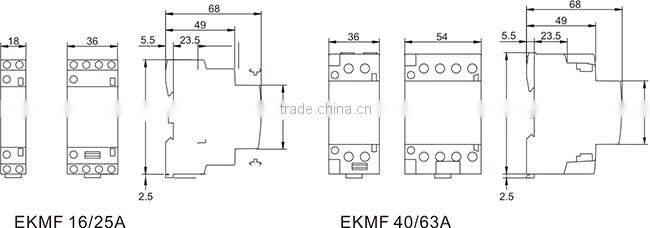

Dimensions (mm)
