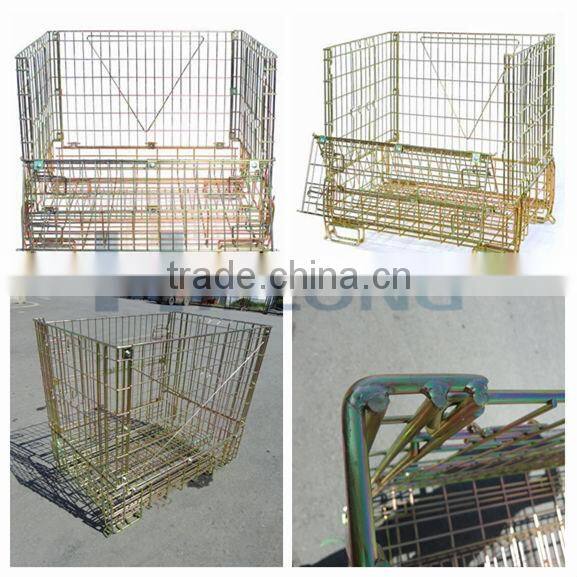

Collapsible welded metal steel wire mesh storage
transportation cage
Specifications of storage containers
| Model No. | Exterior dimension | Interior dimension | Wire Guage | Dimension of Grid | Loading Capacity | Loaded in 1x 40' HQ Container |
| LxWxH(mm) | LxWxH(mm) | mm | mm | kg | ||
| F-1 | 1140x830x980 | 1080x800x850 | Φ12-Φ5.0 | 55*113 | 800 | 332 |
| F-5 | 1200x920x1018 | 1110x890x880 | Φ12-Φ5.0 | 51*118 | 800 | 228 |
| F-10 | 1200x925x1000 | 1100x880x880 | Φ11-Φ5.0 | 62*115/60*120 | 800 | 253 |
| F-16 | 1249x808x1060 | 1165x755x940 | Φ12-Φ5.0 | 54*115 | 800 | 164 |
Main Features of storage containers
1 Collapsible-save space when not in use,ideal for return journeys
2 Bright electro zinc plated finish
3 Standard half-hinged gate access
4 Long lasting,economical alternative to disposable packing
5 Open wire mesh design allows for full visibility for inventory checks,ventilation and cleaness.
6 Four-way entry for easy use with lift trucks
7 Application:widely used in agricultural,electronic equipment
Similar Products of storage containers
View More...
Application of storage containers
Dalian Huameilong Metal Products Co.Ltd , established in 1993,one of the largest manufacturers of transportation security facilities,material handling equipments and welded wire mesh products in North China.We have already past the ISO 9001:2000 and B&V international well-known certification.
Corporate Culture: Quality is enterprises’ life and motivation and should be guaranteed by whole workers
1, What is the material being used for your products?---Mild steel Q235, Q195
2, How is the goods being packed?Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.
3, What is the payment terms I can get?---TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?---Electro galvanized ,hot dip galanized, painting or powder coating is available.
5, What is the loading capacity?--- In general, we have light duty(100~300kg) model,medium duty(400~800kg) model and heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?---Mobile rack,wire container and roll cage are all widely used in cold storage.
7 I like your design, but couldnt find the right model from the products list, is custom size available?---Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
9 I don' have drawing or picture available for th custom products, could you design it for me?---Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environment e)
10 What is the minimum quantity I can order?
---1x20'GP - qty is variable depend on the size.
11 What is your average production lead time?---2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
---3~10 years warranty in case thatA) Proper handling during operation, correctly forklift handling while stacking/un-stackingB) Overloading is prohibitedC) Environment request –indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zn plated and powder coated proucts, no limitation for hot dip galvanized)
13 What happen in case any quality problem is identified after arrival?
---We take full responsibility for any manufacturing defect, would either refund or reship good products to you.
