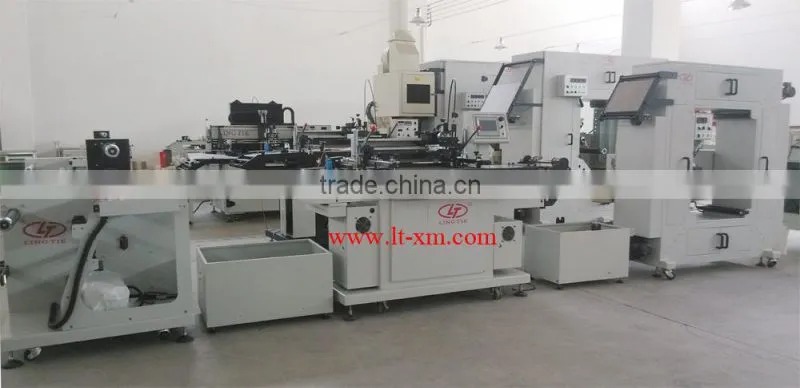

Help CenterAutomatic Roll To Roll Silk Screen Printing Machine for Water Transfer Printing
Related Products
-
Roll to Roll Silk Screen Printing Machine LTA-350US$ 20,000 - 38,000MOQ: 1 Set -
Automatic Reel To Reel Soft Film Screen Printing MachineUS$ 20,000 - 40,000MOQ: 1 Set
-
High Precision Auto Reel To Reel Screen Printing MachineUS$ 30,000 - 70,000MOQ: 1 Set
-
Fully Automatic Screen Printing Machine, Automatic Roll to Roll Printing Machine, High Precision Screen Printing MachineNegotiableMOQ: 1 Set
-
Rolling Film Screen Printing Machine LTA-350US$ 20,000 - 40,000MOQ: 1 Set
Water transfer film printing machine
| Model No. | LTA-460 | Printing material thickness | 0.02-0.5 mm |
| Screen Frame Area | 700x870mm | Squeegee angle | 0-30° |
| Max. Print Area | 460x560mm | Frame regulating variable | 60 mm |
| Max. Paper Width | 470mm | Bench height | 980 mm |
| Printing Speed | 20-70 t/min | Height of screen frame | |
| Power | Main Drive Motor | 0.75kw | |
| Pulling Drive Motor | 1.5 kw | ||
| Air Suction Motor | 0.7kw | ||
| UV Drier UV | 5.5x2kw (optional) | ||
| Machine Weight | Net Weight | 1000kg | |
| Gross Weight | 1200kg | ||
| Power | 220V 3KW (single-phase power) | ||
| Remark: can be designed against your need | |||
| Machine Size | L2850 x W1000 x H1760 mm | ||
| Packing size | L2950 x W1100 x H1630 mm | ||
Main features
1. The machine is controlled by servo motor which adopts from Japan. Easy to set length of material, high accuracy, long useful time, no abrasion.
2. Frequency converter&adjusting device adopts Mitsubishi brand (Japan)
printing speed 20-70 prints/minute, energy-saving, pro-environment.
3. By using the precise milligram regulatorJapan,the sensor precision is adjustable.(0.02mm) and it is good for color match and accurate register of printing.
4. By using second pass scanner, computer control, color standard is checked automatically, automatic switch off while machine in abnormity.
5. Electronic counter can pre-set the quantity of sheets to be printed when total number of sheets is reaches
6. Industrial personal computer adopt from NSK NTN IKO(Japan), to extend the useful time of machine.
7. The photoelectric facility controls the material feed-in and discharge to aviod any scratch on the print surface.
8.This machine is equipped dust-elimination equipment to clean the printing material surface and wipe out the dust .
Contact us
TEL:86-13559215189
FAX:86-592-3780909
SKYPE:lingtiexm
Contact person:Charlie Liu
Website: / https://img13.fr-trading.com
We will offer you the quotation as soon as possible once receive your inquiry.pls don’t hesitate to contact us.
