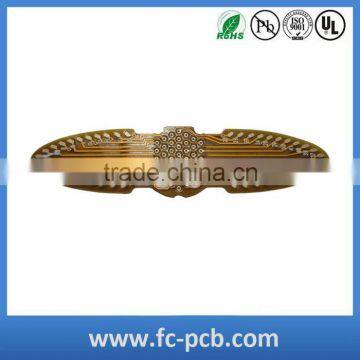

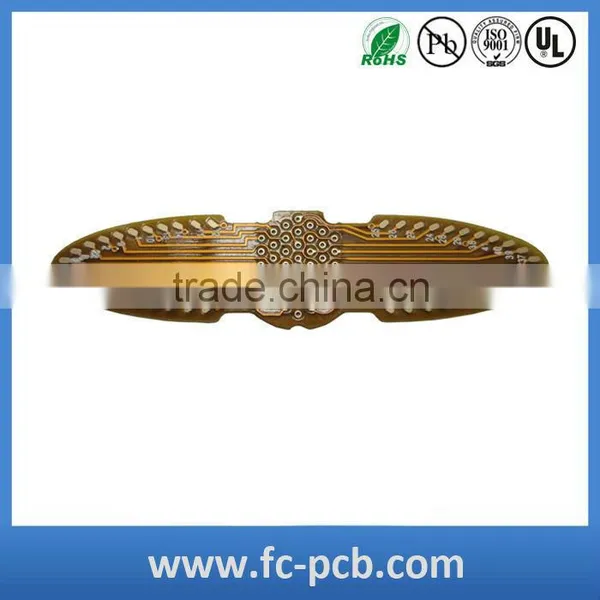

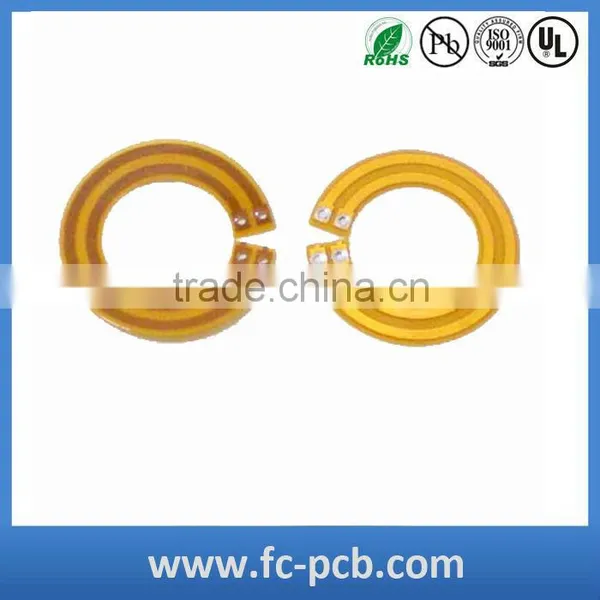

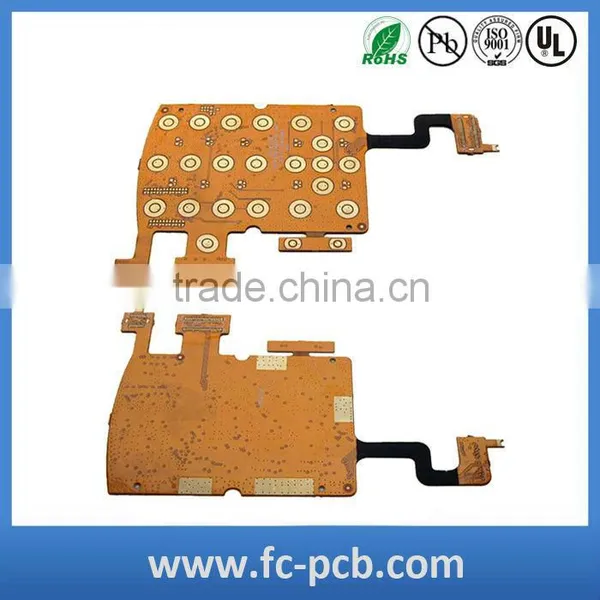

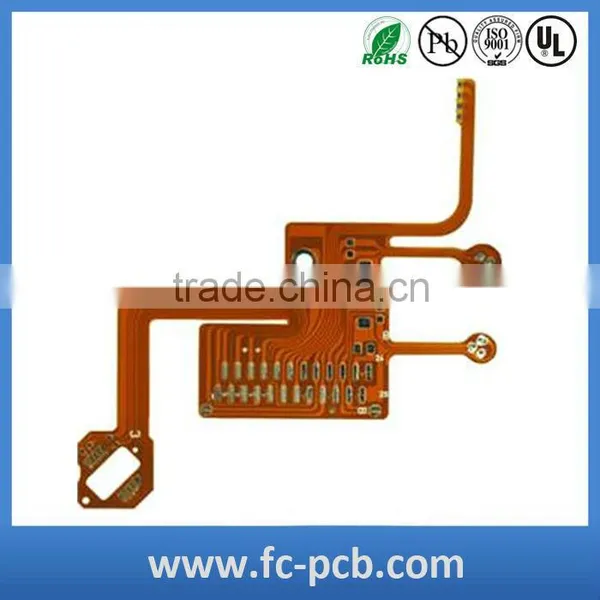

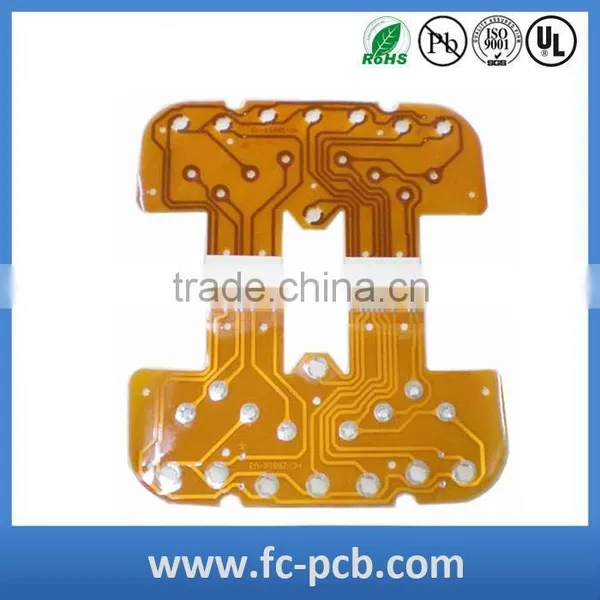

Help CenterFlex Polymide FPC
Related Products
Your Best Choice for FPC Manufacturing & Assembly
ADVANTAGES:
We product all kinds of Flex pcb and Rigid flex pcb which are widely used in modern portable electronics and devices.such as Cell pone, key board, LCD module, Disk cable and etc.
1.With 12 years experience in circuit board,Printed Circuit Board field to serve your needs
2.Competitive circuit board, Printed Circuit Board price with high quality
3.Excellent service and prompt delivery
4.Our circuit board, Printed Circuit Board get ISO and UL Certificates and meet ROHS REACH standard
1. Professional & experienced engineers
2. Competitive price
3. In time service
4. Product warranty
TECHNICAL DATA:
Layers: |
1-10 Layers |
Min. Line Width: |
0.05mm |
Min. Hole Size: |
0.15mm PTH |
Min. PTH Hole Ring: |
0.45mm |
Min. Gap between Cover Layer and Pad: |
0.1mm |
Min. Gap between Trace and Outline: |
0.2mm |
Trace Width Tolerance: |
+/-0.03mm, W+/-30% |
Outline Tolerance: |
+/-0.05mm L≤ 25mm |
Hole Size Tolerance: |
+/-0.05mm |
Stiffener and Outline Tolerance: |
+/-0.25mm |
Surface Treatment: |
ENIG, Gold Plating, HAL, Plating Pb-Sn |
LEAD TIME FOR PRODUCTION ORDERS:
PCB Category |
Sample Lead time |
Mass production lead time |
Single sided PCB |
1~3 |
4~7 |
Double sided PCB |
2~5 |
7~10 |
Multilayer PCB |
7~8 |
10~15 |
PCB and Assembly |
8~15 |
15~30 |
QUOTE REQUIREMENTS FOR PCB AND PCB ASSEMBLY:
- Gerber File and Bom List;
- Quantity;
- Technical requirements for quoting reference;
- Clear pictures of PCB or PCB Assembly sample if avaliable.
- Inspection method for PCB Assembly.
Quality control procedure:
Material received—incoming inspection — warehouse — SMD mounting — IPQC — reflow soldering — Manual insertion — DIP soldering — IPQC — Lead cutting — wave soldering — AOI — touch-up — in circuit testing — Final testing.
If you have any new launched projects or any engineering questions,please don't hesitate to contact Fulltronics team any time. We welcome requests for professional estimates. Our staffs will get back to you ASAP within 24 hours.
