Printing Machine

US$ 150,000 - 200,000 MOQ: 1 Set

Key Specifications

Condition:

New

Packaging Material:

Paper, Plastic

Automatic Grade:

Automatic

Wenzhou Fengming Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Packaging Material Paper, Plastic

Automatic Grade Automatic

Voltage 220/380V

Power 20kw

Place of Origin Zhejiang, China

Certification CE Certificate

After-sales Service Provided Engineers available to service machinery overseas

FM-B920-1850 TYPE

Application Object

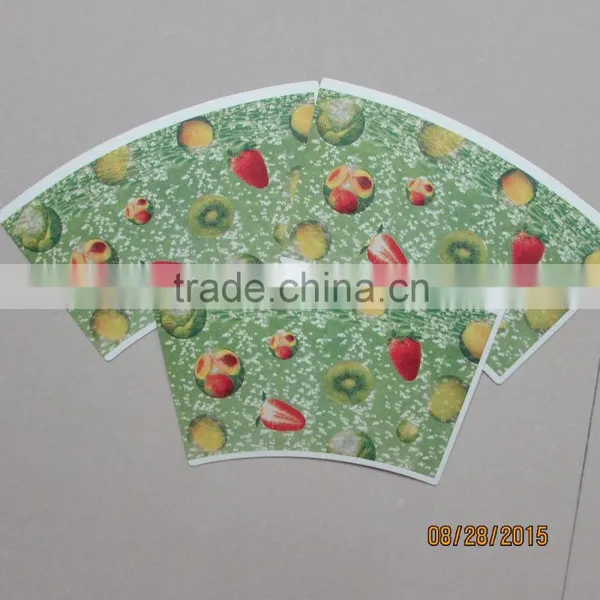

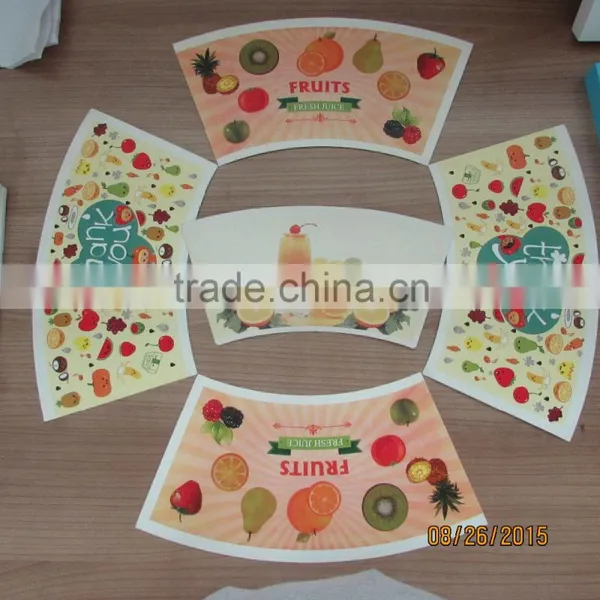

Suitable for eco-friendly packaging,such as the pre-printing carton of paper bag,paper box,paper cup used for food,medicine use

Paper Used

Paper used:kraft paper,carton board materials,coated paper,liner paper,laminated paper,nonwoven paper

Main Characteristics

1.Capable of inline cleaning dust,printing,and cutting

2.Eco-friendly printing,water based ink and UV ink used

3.Ceramic anilox rollers can be used for a long time,and can supply ink appropriately

4.Warm drying,IP drying,UV drying are available

5.Closed loop tension controlis used to make printing tension much more stable,and register much more accurate

6.Automatically electronic web-guide system

7.Online printing register detection

8.Register system can be operated automatically or by manpower

Specification	35.5"(900)	39.5"(1000)	47.5"(1100)
Max.Web Width	920mm	1020mm	1120mm
Max.printing width	900mm	1000mm	1100mm
Max.Die-cutting width	900mm	1000mm	1100mm
Pringting Repeat	286--1200mm	286--1200mm	286--1200mm
Die-cutting Repeat	286--1200mm	286--1200mm	286--1200mm
Max.Unwinder Diameter	1524mm/1200mm	1524mm/1200mm	1524mm/1200mm
Max.Rewinder Diameter	1524mm/1200mm	1524mm/1200mm	1524mm/1200mm
Gearing	1/8cp	1/8cp	1/8cp
Max printing speed	150m/min	150m/min	150m/min
Diameter of web roller	100mm	100mm	100mm
Base motor power	15kw--22kw	15kw--22kw	15kw--22kw
Drying mode	a.Warm Drying b.IR Drying c.UV Drying
Oil Used	a.aqueous ink b.UV ink
Power Requirement	380V 3PH 50Hz
Substrate	17g ,80-450g, , BOPP, PET

Specification	47.5"(1200)	50.5"(1280)
Max.Web Width	1220mm	1300mm
Max.printing width	1200mm	1280mm
Max.Die-cutting width	1200mm	1280mm
Printing Repeat length	286--1200mm	600--1430mm
Die-cutting Repeat length	286--1200mm	600--1430mm
Max.Unwinder Diameter	1524mm/1200mm	1524mm
Max.Rewinder Diameter	1524mm/1200mm	1524mm
Gearing	1/8cp	1/8cp
Max printing speed	150m/min	150m/min
Diameter of web roller	100mm	100mm
Base motor power	22kw	18.5kw
Drying mode	a.Warm Drying b.IR Drying c.UV Drying
Oil Used	a.aqueous ink b.UV ink
Power Requirement	380V 3PH 50Hz
Substrate	17g copy paper, cotton paper, 80-450gchrome paper, aluminium-foil paper, BOPP, PET, paper board, kraft paper

Specification	56.5"(1430)	64.2"(1630)	72.0"(1830)
Max.Web Width	1450mm	1650mm	1850mm
Max.printing width	1430mm	1630mm	1830mm
Max.Die-cutting width	1430mm	1630mm	1830mm
Printing Repeat length	600--1430mm	600--1430mm	600--1430mm
Max.Unwinder Diameter	1524mm	1524mm	1524mm
Max.Rewinder Diameter	1524mm	1524mm	1524mm
Gearing	1/8cp	1/8cp	1/8cp
Max printing speed	150m/min	150m/min	150m/min
Diameter of web roller	100mm	100mm	100mm
Base motor power	22kw	22kw	30kw
Drying mode	a.Warm Drying b.IR Drying c.UV Drying
Oil Used	a.aqueous ink b.UV ink
Power Requirement	380V 3PH 50Hz
Substrate	17g copy paper, cotton paper, 80-450gchrome paper, aluminium-foil paper, BOPP, PET, paper board, kraft paper
