Summary of Full-sealing S9/11-M.R Ribbon-Wound Core Distribution Transformer:
This type transformer adopts high-permedibility cool-rolling si-steel sheet as iron core, it processed with big fill factor and there is no space inside the magnetic path, HV and LV coil is continuously winded around the core with good concentricity and compact winding. The product is in low consumption and slight noise pollution by combining new technology generation, good performance and energy saving, which is widely used in distribution system.

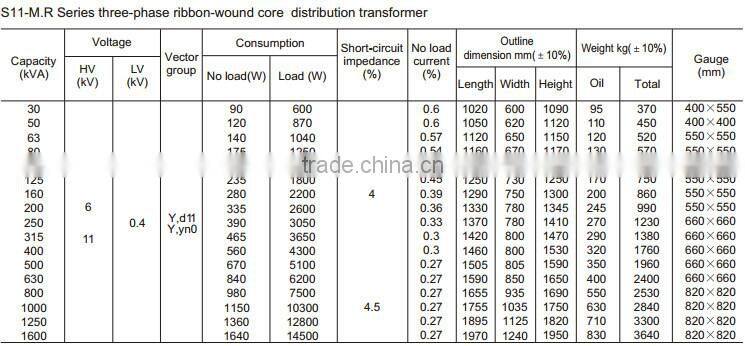

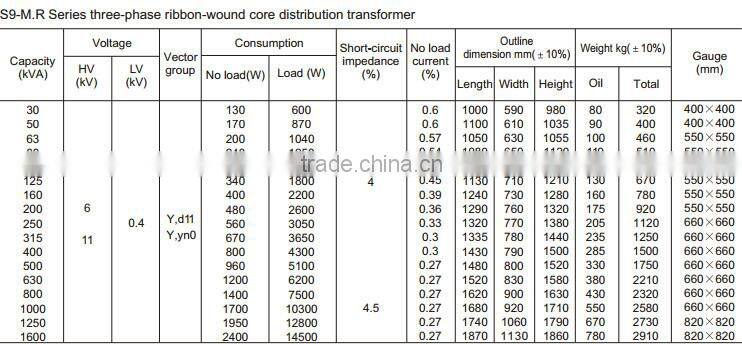

Technical Specification of Full-sealing S9/11-M.R Ribbon-Wound Core Distribution Transformer:
Product Feature of Full-sealing S9/11-M.R Ribbon-Wound Core Distribution Transformer:
1. The winding iron core is of big fill factor.
2. The iron core is annealed.
3. There is no joint in iron core to decrease magnetic resistance and lower down no-load current by 60~80%.
4. The no-load capability decreased by 20~30%.
5. The magnetic conductance recovers to the original level before it is processed.
6. The compact structure of core lower down noise pollution by10dB.
Certifications:
Cooperation Projects:
Company Pict:
Huayi Electric Co., Ltd. is the core subsidiary of Huayi Elec. Apparatus Group Co., Ltd. In 2007, It became the first ShangHai Stock Exchange (SSE) listed electric company in WenZhou. The company has more than 1,500 employees, of these 30 percent is engineers. It has 7 core subsidiaries and 4 divisions. It focuses on two main industries: wind energy and electric apparatus. Huayi Electric Co., Ltd has created a complete marketing network to cover the business of State Grid Corporation, five power generation Groups, chemical, petroleum, railways, industries and manufacturing. It as well has established perfect worldwide marketing channels and after-sales service system in Europe, Asia, Africa, America, and Oceania.
Main Products List:
1. Wind Turbines
2. Switchgear Panels
3. High Voltage Components
4. Instrument & Protection Systems
5. Instrument Transformers & Accessories
6. Outdoor Power Transmission & Distribution Systems
Sample & OEM & ODM is OK.
More information pls kindly visit our website:
/
http://heag.en.china.cn/
