Specifications
This stretch film making machine is used to manufacture the single/double-side stretch wrapping film.
Company Description
Ruian Fengming Machinery Co., Ltd, which has more than 15 years experience manufacture specializing in developing and producing high quality plastic machinery. Such as film blowing machine, bag making machine, printing machine, slitting machine, recycling machine, and etc. We have exported our machines to many countries. Such as USA, SPAIN, ROMANIA, MEXICO, SAUDI ARABIA, JORDAN, SYRIA, ARGENTIA, and many middle east, and south America countries. Our produce have through ISO9001 and CE certificate.
Our enterprise will whole heartedly welcome numerous customers at home and abroad to visit us for guidance and business discussion.

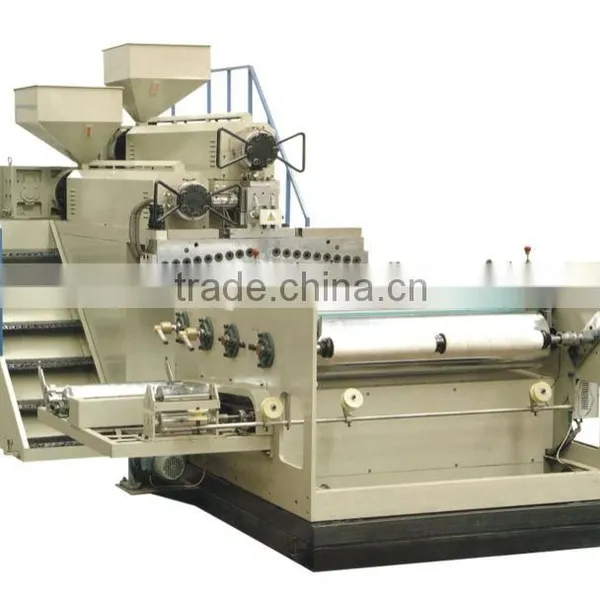

FM-1000 single/double-layer PVC stretch film making machine
USE
This stretch film making machine uses LLDPE as main material and adopts several kinds of resins to manufacture the single/double-side self-sticky stretch wrapping film. The film has good tensile strength, anti-pricking ability and impact strength. Its good shrinking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust. The transparency and tensile strength of this product can make the packaging beautiful, economical and practical. The film can be widely used in wrapping or palletized goods. It is a good substitute for hot shrinking packaging film during transportation.
Main Technical Variables:
Model |
FM-1000 (double layer) |
FM-1000 (single-layer) |
Diameter of screw |
Φ65X2 |
Φ75 |
L/D ratio of screw (L/D) |
28:1 |
28:1 |
Width of die head (mm) |
1250 |
1250 |
Width of finished products (mm) |
1000(500X2) |
1000(500x2) |
Thickness of finished products (mm) |
0.015-0.05 |
0.015-0.05 |
Structure of film layers |
A/B |
--- |
Max. Output (kg/h) |
100 |
100 |
Linear speed of machinery (m/min) |
50-100 |
50-100 |
Total power (kw) |
140 |
120 |
Overall dimensions (LXWXH) (m) |
7.5x4.5x3.2 |
7.5x4x3.2 |
Weight (T) (About) |
5.5T |
4.5T |
Packaging & Delivery
| Packaging Details: | film packing or wooden case package |
|---|---|
| Delivery Detail: | 30days after receipt of the prepayment |
