Specifications

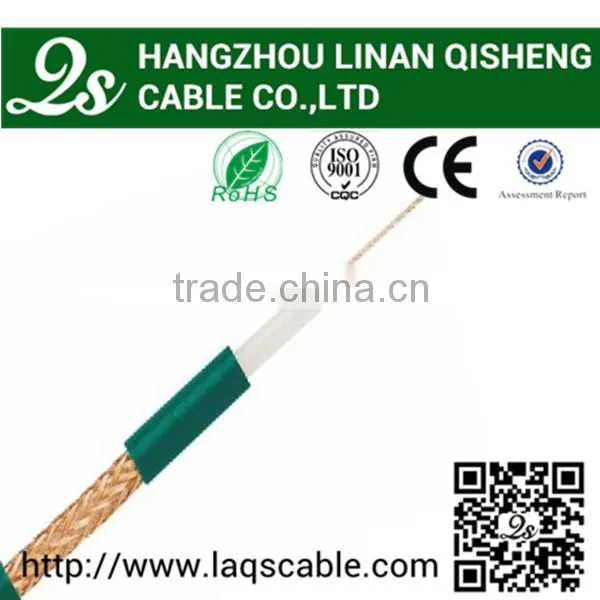

Rg59 Coaxial Cable with power cable1.CE ISO RoHS SGS
2.Quick Delivery
3.Stable High Quality
4.Competitive Price
10years experience of serious of cable manufacturing. High quality, competitive price, welcome for your inquiry.
| FOB Price: | US $0.05 - 0.5 / Meter |
|---|---|
| Min.Order Quantity: | 15 Kilometer/Kilometers |
| DELIVRY TIME: | 15-20 days after receiving deposit |
| Port: | Ningbo/Shanghai |
| Payment Terms: | L/C,T/T and so on |
Quick Details
1) Inner conductor: CCA/CCS/CU
2) Dielectric: SPE/FPE
3) AL Foil: Bonded, non-bonded, single, double
4) Braiding wire material: Cu,Al-Mg, TC
5) Braiding wire diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding net: 48,64,72,80,96,128 and more
7) Coverage: 40%,50%, 60%, 80% and more
8) PVC Degree: 65,68,70,75
9) Color: Black,white or grey
10) OEM and customers designation are welcome.
PACKING:
1)100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
(Other lengths available according to client's request)
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
(Other packing available according to client's request. )
COAXIAL CABLE
1) RG series Coaxial Cable: Rg59, rg6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316, etc.
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.
3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8
4) TRUNK Cable: 412, 500, 540
5) LMR SERIES: LMR200, LMR400, LMR600
6) Combined Cable:RG59+2C
OTHER INFORMATION
RG59 COAXIAL CABLE WITH POWER CABLE DATA SHEET
1)Construction
| Inner Conductor: | 0.81±0.01mm CCS |
| Insulation: | 3.65±0.05mm Foam PE |
| Shield: | Al Foil/Bonded Al Foil |
| Braid Coverage: | 40%-95%Al-Mg/CCA |
| Jacket: | 6.00±0.05mm PVC |
| Jelly/APD | Per Customers Special Requirement |
| Power Wires | 2*7*0.3mm CCA/BC |
| Power Cable Jacket | 4.95±0.05mm PVC |
2)Characteristics
| Sparker Test: | 4000VAC |
| Impedance: | 75±3 Ohm |
| Capacitance: | 50±3pF/m |
| Velocity of Propagation: | 85% |
| Return Loss: | 20dB min (5-2300Mhz) |
3)Attenuation:
| Attenuation | [@68°F.(20°C.)] | |
| Frequency(Mhz) | Maximum (dB/100 ft.) | Maximum (dB/100m) |
| 5 | 0.58 | 1.9 |
| 50 | 1.5 | 4.9 |
| 100 | 2.0 | 6.5 |
| 200 | 2.8 | 9.2 |
| 400 | 4.1 | 13.6 |
| 700 | 5.6 | 18.4 |
| 900 | 6.2 | 20.3 |
| 1000 | 6.5 | 21.4 |
| 1450 | 8.0 | 26.2 |
| 1800 | 8.5 | 27.9 |
| 2100 | 9.5 | 31.1 |
| 2250 | 10.0 | 34.0 |
| 3000 | 11.4 | 37.5 |
