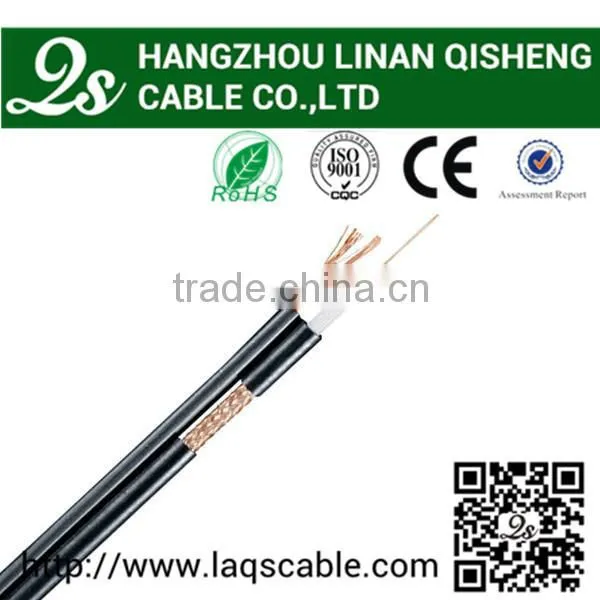

Help Center10years-experience OEM Supplying Coaxial Cable With Power High Quality and Low Price
Related Products
-
Punctual OEM Specialized in Coax Rg6 75ohm and Rg58 50ohm With PassengerUS$ 0.05 - 0.5MOQ: 10 Kilometers -
Punctual and Professional OEM in Coaxial Cable Rg58(3c-2v)with Passenger Used in CCTV/CCAVUS$ 0.05 - 0.5MOQ: 10 Kilometers
-
Punctual and Professional OEM Specialized in Coaxial Cable and Twin Coaxial CableUS$ 0.05 - 0.5MOQ: 10 Kilometers
-
5c-2v Coaxial Cable Sywv-75-5 RG6 Coaxial Cable for CATVUS$ 0.05 - 0.2MOQ: 30 Kilometers
-
HOT SALE New Item Coaxial Cable Rg6 With Lan Cable Supplying Free SampleUS$ 0.05 - 0.5MOQ: 10 Kilometers
Specifications
1.CE ISO RoHS SGS2.Quick Delivery
3.Stable High Quality
4.Competitive Price
Application:
Used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
| Center Conductor | 0.81+0.01mm Solid Bare Copper |
| Dielectric | 3.80+/-0.05mm Foam PE |
| Shield | Al Foil optional |
| Braid Coverage | 95% BC wires |
| Jacket | 6.15+0.05mm PVC |
| Power wire | 18AWG bare copper |
| Insulation | 2.0mm PP / PVC |
| Jacket | 5.0mm PVC |
2. Characteristics
| Spark Test | 4000VAC |
| Impedance | 75+3 Ohm |
| Capacitance | 52+/-3pF/m |
| Velocity of Propagation | 85% |
| Return Loss | 20dB min (5-2300MHz) |
3. Attenuation
Attenuation |
[@68o F. (20o C.)] |
|
Frequency (MHz) |
Maximum (dB/100 ft.) |
Maximum (dB/100 m) |
5 |
0.58 |
1.9 |
50 |
1.5 |
4.9 |
100 |
2.0 |
6.5 |
200 |
2.8 |
9.2 |
400 |
4.1 |
13.6 |
700 |
5.6 |
18.4 |
900 |
6.2 |
20.3 |
1000 |
6.5 |
21.4 |
1450 |
8.0 |
26.2 |
1800 |
8.5 |
27.9 |
2100 |
9.5 |
31.1 |
2250 |
10.0 |
34.0 |
3000 |
11.4 |
37.5 |
*Coaxial Cable:
RG58,RG59, RG6, RG7,RG8, RG8X,RG11,RG213,RG214,RG174.
RG179,RG316, 17vatc, 19vatc, QR400, QR500, QR540, KX6, KX8,
CT100, CT125, CT165, BT3002, SAT602, SAT502,SAT703, 3C-2V,
5C-2V, 7C-2V,3D-2V, 5D-2V, 3D-FB, 5D-FB,7D-FB,8D-FB, 10D-FB etc.
*Lan Cable:CAT5, CAT5e UTP/FTP/SFTP, CAT6 UTP/FTP/SFTP, CAT6A, etc.
*Electric Wire
*Speaker Cable
*Control Cable
*Combined Cable
*Patch cord
Note:Customized specifications are also welcome
