Bucket Ladder Dredger FLB-150
The chain bucket dredger is widely used in dredging sand and contaminated mud, salt mining, iron ore extraction and gold selection etc. Our chain bucket dredger is with stable performance, long service life, low cost, high efficiency and less maintenance.
Bucket Capacity vary from 50L to 400L,the maximum capacity can reach 360 t/h.
This bucket ladder dredger can be also equipped with ore mining machinery for gold selection or iron separation. It work automaticly with high production capacity.
Parameters:
| Model | FLB-50 | FLB-100 | FLB-150 | FLB-200 | FLB-250 | FLB-300 | FLB-400 |
| Bucket Capacity/L | 50 | 100 | 150 | 200 | 250 | 300 | 400 |
| max. Depth/m | 6.5 | 7.4 | 9.6 | 12 | 14 | 16 | 24 |
| Min. working width/m | 30 | 38 | 39 | 40 | 45 | 50 | 60 |
| Cpacity/(t/h) | 45 | 90 | 135 | 180 | 225 | 270 | 360 |
| Engine power/kW | 199 | 330 | 842 | 930 | 1260 | 1501 | 1995 |
| Displacement/t | 220 | 500 | 840 | 1350 | 1700 | 2000 | 2550 |
| Hull size, Length/m | 21 | 28 | 33 | 41.8 | 43.7 | 46 | 59.8 |
| Hull size, Width/m | 10.2 | 13.2 | 15 | 18 | 18 | 19.5 | 22 |
| Hull size, Height/m | 2 | 2.2 | 2.7 | 2.9 | 3 | 3.2 | 3.6 |
| Sorting equiment | Optional, as your requires | ||||||

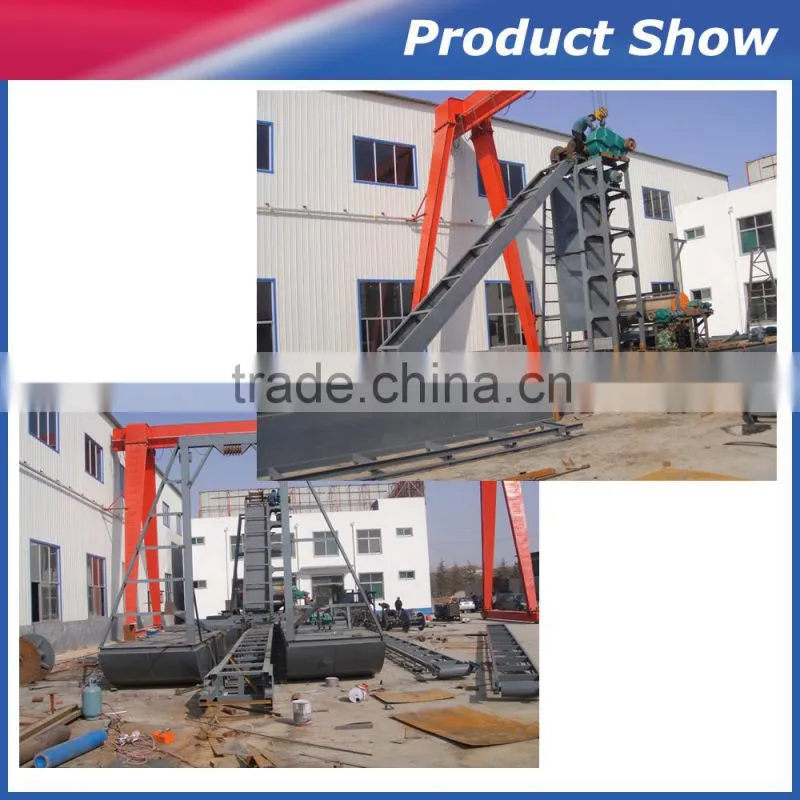

More samples:
Packing:
Shipping:
- Over 12hours online technical support every day.
- Free training.
- Warranty:1 year for machine except spare parts.
- After one year, we can supply accessories with low price.
Qingzhou Olei Heavy Industry Co. Ltd, is an integrated enterprise. We produce road construction machinery, environmental protection machinery and industrial automation equipment. Recent years, we import advanced technology, and do research and development of high quality waste incineration fly ash handling equipment, sludge treatment equipment, stabilized soil mixing plant, concrete mixing plants, concrete mixing station, slaked lime production equipment.
We have strict quality management system from the design, manufacture, sales, testing and after-sale service. Try to supply the best quality and best service. Now we already got good reputation from the quality and technology from users.
Our main products are ash stabilization/solidification treatment equipment, sludge solidification/stabilization treatment equipment, sludge drying equipment, sludge synthetic fuel facilities, WCB series stabilized soil mixing station, HZS series concrete mixing station, JS series mixers, PLD series batching machine, LSY series screw conveyor and lime digestion equipment and other products.
We will try our best to service for you and build win-win business with you.
How to get your suitable machine or production line ?
- Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trademanager, Skype) and let us know your enquiry.
- Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.
- Quotation: Prices offered and accepted.
- Place order as per contract or discussion.
- Perform invoice( sales contract ) in duplicate confirmed and kept by both sides.
- Payment settled.
- Order completed under our arrangement.
- Goods shipped as per contracted term.
- Goods arrive at local port or warehouse, depending on contracted term.
- Support & re-ordering.
Feel free to contact us if any questions, thanks!
