Super Weight Water Jet Looms in Shandong Province

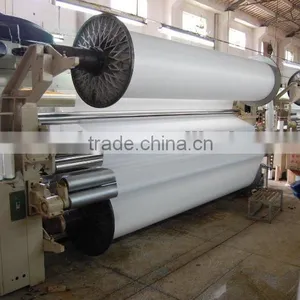

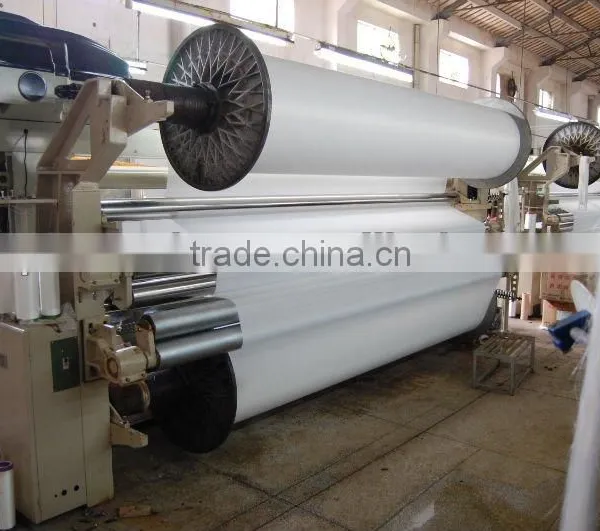

Super Weight Water Jet Looms in Shandong Province photo-1

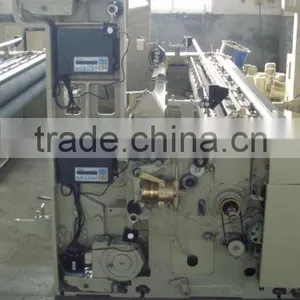

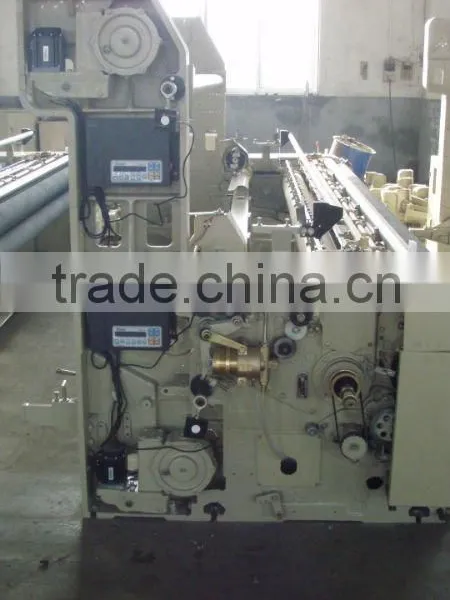

Super Weight Water Jet Looms in Shandong Province photo-2
US$ 6,500 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Air Jet Loom
Application:
polypropylene,polyethylene plastics and glass fibre
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Air Jet Loom
Application polypropylene,polyethylene plastics and glass fibre
Production Capacity 500 sets/month
Place of Origin China
Brand Name XinDe
Model Number XD-280
Dimension(L*W*H) 3100*1500*1800mm
Weight 3000kg
Power(W) 1.5kw~2.8kw
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Excellent performance in weaving high-density cloth.

ain technique parameters

Fabric yarn

· Chemical fiber  yarn T/C  40d-300d

working width (cm)

Nominal:150,170,190 ,210,230 260,280 330 360



Filling selection

1 color or 2 color at will

Weft density range

6-60pick/cm  80pick at most

Motor

3.5kw,4.6kw selected according to the certain model

Shedding

Plain type 2-8pcs heald frame

Positive cam machine,4-10pcs heald frame

Upper positive dobby YAMADA GD50

2-16pcs heald frame (according to customer’s demands)

Let-off

Electronic let off-ELO

Mechanical let-off

Flange diameter:800mm

Take-up

Mechanical take-up

Electronic take-up

Upper and down temple(according to the variety of fabric)

Waste filling removal

Mechanical take-up 3 roller

Cutter

Mechanical cutter

Operation



start –driven by rush start motor.stop by electromagnetic brake at programmed position

Arrange,run,forward inching,reverse inching,programmed position stop after

One cycle reverse rotation

beating

Crank beating,sword beating system oil bath lubrication system

Filling insertion

Single pump(plunger type spring pressure system)

Double nozzle(needle type ceramic) stabilizer system

Feeler-IR feeler or OPD feeler using optical cable

Yarn package standard

Floor mounted horizontal stand for – 4 package(2 color)

Catch cord

Spindle twisting system

Temple

Top mounted,2 barrel type with ring each.

Water suction

Slit tube suction (blower type)

Main spare parts



We can change any brand by customer’s requirement.

1.nozzle type:NSK made in Korea

2,plunger/cylinder:ceramic type NSK brand

3 pump and spring:NSK brand

4.valve seat:NSK

5.Oil seal:NAK made in Taiwan

6.bearings:made in Japan





More information pls contact us: Skype:amanda.xie7
