Specifications
high quality.automatic working with gluig, end cutting, rough trimming,scraping, buffing and fine trimmig,
finest parts
automatic woodmaking machine with gluing, end cutting ,rough trimming, scraping,fine trimming and buffing.
The thickness of edge handing tape |
0.4-3mm |
The width of edge handing tape |
12-60mm |
The feeding speed |
12-20m/min |
Feeding motor |
1.5kw frequency inverter |
Glue post motor |
0.37kw |
End trimming motor |
0.37kwx2 frequency inverter 14000r/min |
Rough trimming motor |
0.7kwx2 frequency inverter 18000r/min |
Fine trimming motor |
0.7kwx2 frequency inverter 18000r/min |
Polishing motor |
0.25kwx2 1400r/min |
Glue box heater |
2kw |
Air presses to side |
0.6Mpa |
Total power |
9.4kw |
Size of appearance |
4600×900x1600mm |
Weight |
≈1800kq |
Panel length |
≥120mm |
Panel width |
≥80mm |

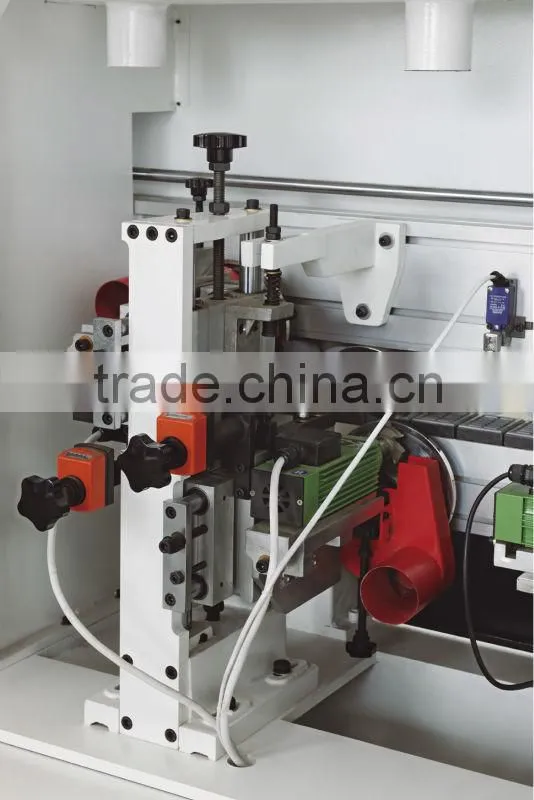

fine trimming
quick and easy adjustment design.
scraping and buffing unit: flexible and easy adjustment design with independent two radius 2mm carbid blade for increased operational stability.
end cutting:precise,high quality cut of both thin and thick edges
Gluing: quick mount glue pot. easy maintance.
Automatic edge feeding system for rolled edges and strips
Automatic cutting device for 3mm edges and strips.
easy and clear display glue pot temp. alarm protection .tool stopping with brake
free serivice for one year. any problems in motor, we will send you a new one.any questions wille be open .

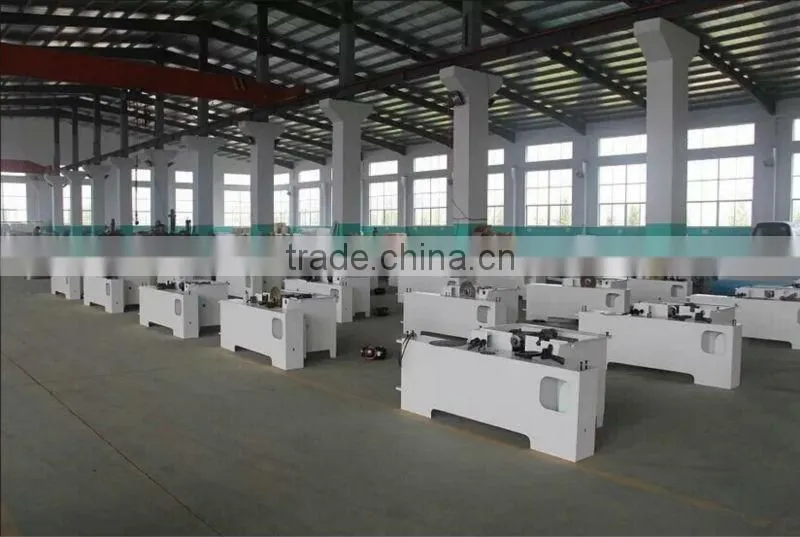

we have specilalized in woodmaking machine about ten years with skilled workers and wonderful suppliers. so all the parts are the best.The machines have been sent to many countries. They all work well.
