Home > Manufacturing & Processing Machinery > Woodworking Machinery > Other Woodworking Machinery > MF506D Full Automatic Edge Banding Machine

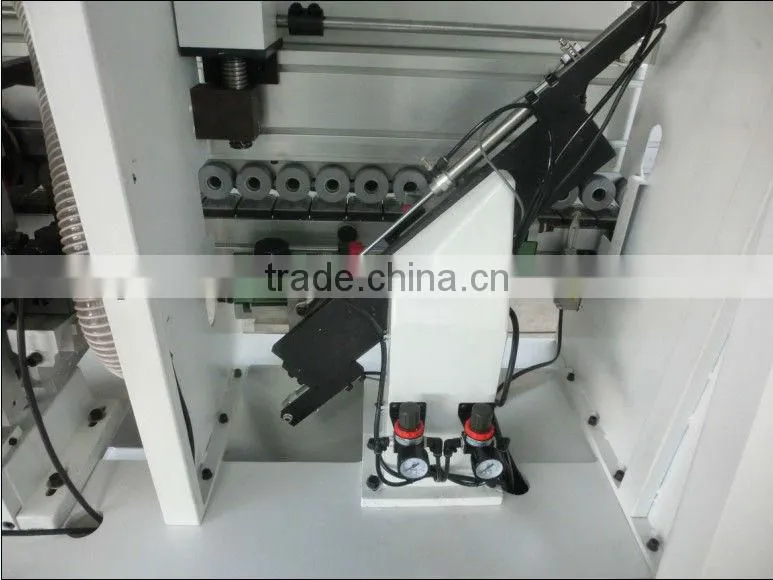

MF506D Full Automatic Edge Banding Machine
US$ 12,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Brand Name:
XD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BRAND NEW Precision Panel SawUS$ 2,000 - 3,200MOQ: 1 Set -
BRAND NEW Precision Panel SawUS$ 2,000 - 3,200MOQ: 1 Set
-
Precision Panel Saw MJ6130US$ 2,200 - 2,400MOQ: 1 Set
-
MF506D Full Automatic Edge BanderUS$ 13,000 - 14,000MOQ: 1 Set
-
MF506 Full Automatic Edge BanderUS$ 11,000 - 12,500MOQ: 1 Set
Condition
New
Place of Origin
China
Brand Name
XD
Model Number
MF506D
Specifications
full automatic edge banding machinewith gluing, end cutting, rough trimming, fine trimming,buffing functions.
Panel thickness |
10-60mm |
Edging thickness |
0.4-6mm |
Min .Width of panel |
≥80mm |
Min. Length of panel |
≥160mm |
Max. size of tape higher than panel(each side ) |
1.5-2mm |
Panel feeding speed |
12-20m/min(variable speed) |
Pneumatic power |
0.6Mpa |
Power |
380V 3N/PE 50Hz |
Panel feeding motor |
2.2KW |
Glue axis motor |
0.75kw |
Edge-cutting motor |
0.5kw*2 200Hz 12000r/min |
Rough trimming motor |
1.1kw*2 200Hz 12000r/min |
Fin trimming motor |
0.5kw*2 200Hz 12000r/min |
Buffing motor |
0.25kw*2 50Hz 2800r/min |
Heating power of glue tank |
2.5KW |
Secondary heating power |
0.12KW |
Total power |
9.57KW |
Total current |
19.13A |
Glue temperature of edging (reference) |
180-200°C |
Overall dimensions |
4620*1050*1410mm |
Weight |
≈2000kg |
