Specifications

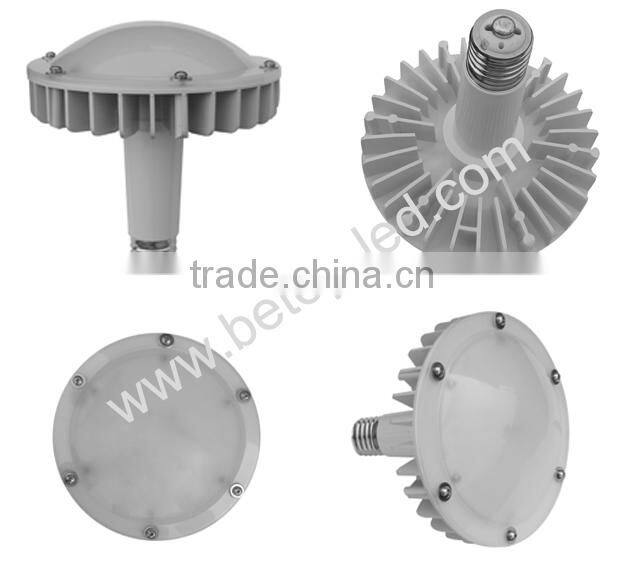

special design LED high bayNichia LED, Meanwell driver
Very light/1.2kg N.W
pure Aliminium heat sink
Anti-glaring, IP65.
The MOST light weight of led bay light in the market!
-Feature --------------------------------------------------------------------------------------------------
Nichia 3030 100W Par63 is designed and manufactured to replace the 200W Metal Halide Lamp or High Intensity Discharge, the superior Nichia LED solution and pure aluminium material helps the luminous efficacy high to 100LM/W,it is designed in excellent thermal management in conjoint structure by cold forging process tech.
- Pure Aluminum made with excellent thermal management
- Suitable for chemical-complicated application
- Low maintenance cost
- Safe-hanging design
- Light weight ONLY 1.5KG

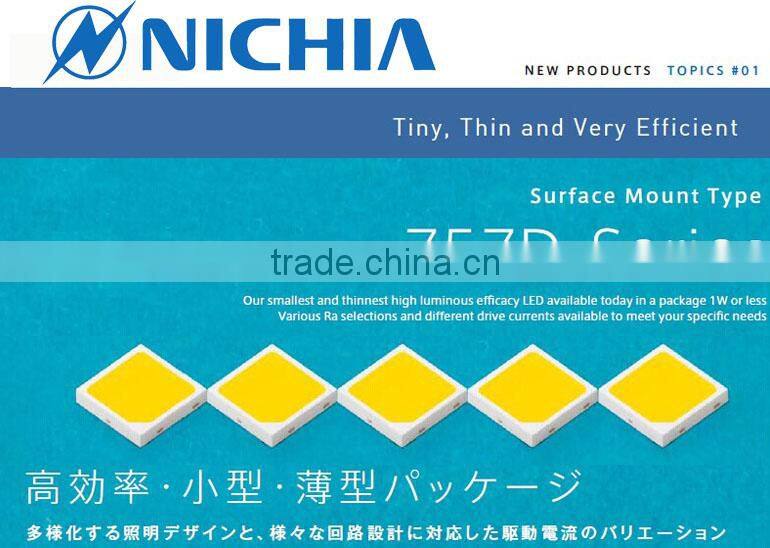

- Japanese Nichia LED

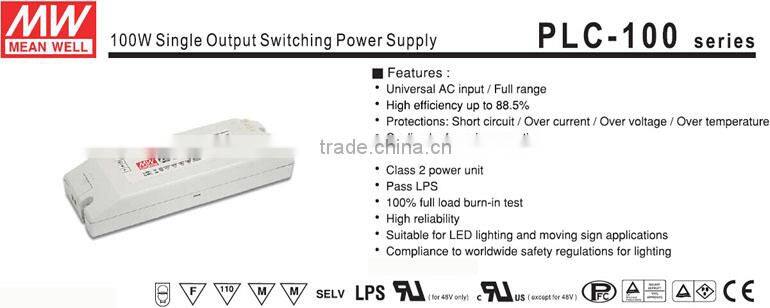

- Meanwell Driver

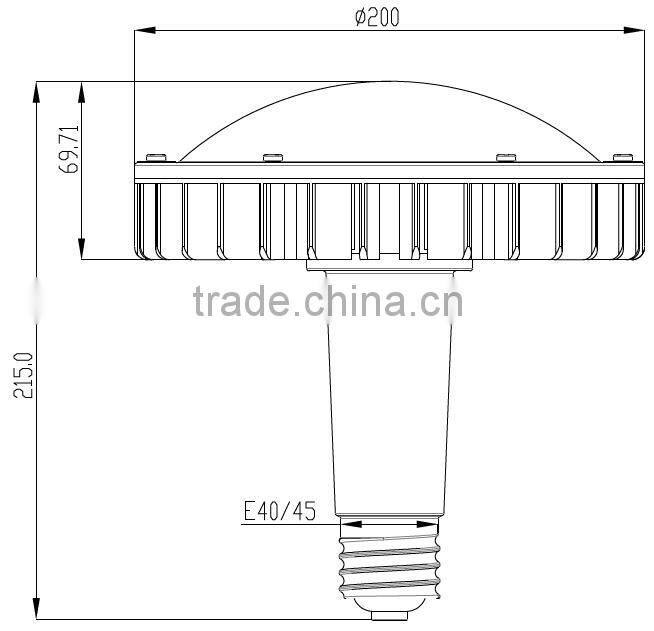

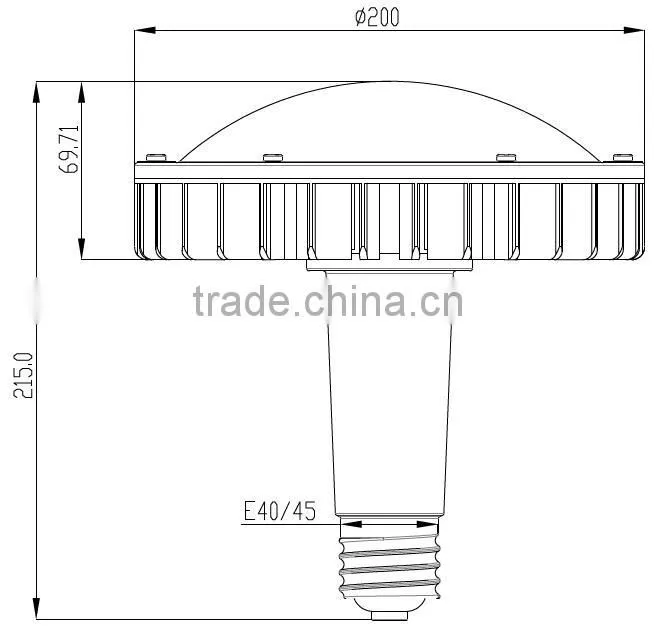

-Dimension--------------------------------------------------------------------------------------------
Electrical and optical parameter | |
Power dissipation |
100W |
Luminous flux |
10000Lm±5% |
Color temperature |
2800-3200K,4000-4500K, 5800-6300K |
Luminous Efficacy |
100Lm/W |
Color rendering Index |
80 |
Lighting source |
SMD3030 |
AC input voltage |
AC100-277V |
Power factor |
0.98 |
Driver efficacy |
90% |
Beam angle |
90/120° |
Weight |
1500g |
Quality guarantee |
3years |
Lifespan |
50,000hrs |
Packing dimension | |
Interior box dimension |
210x210x230mm |
Outerior CTN dimension |
440x440x480mm |
QTY per CTN |
8pcs |
N.W./CTN |
15KG |
G.W./CTN |
15KG |
-APPLICATION----------------------------------------------------------------------------------------

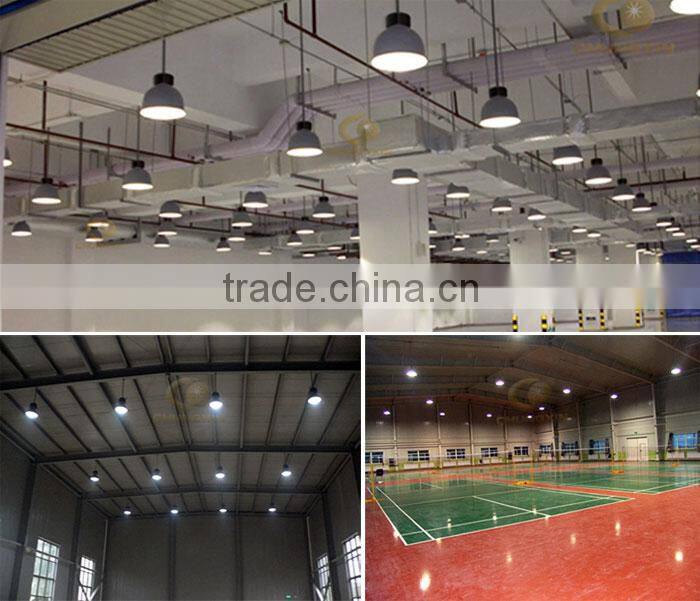

The ideal retrofit solution for industrial lighting applications in warehouse,factory and airport.
Where the light is on high ceiling. The solid modern designed has large heat dissipation areas.
Fast start-up no warm-up time. No heat radiation making it suitable for heat-sensitive application.
-Note-------------------------------------------------------------------------------------------------------
1. Please make sure the LED light is connected to the rated voltage
2. Suitable for use in open luminaries, do not use in enclosed fixture
3. Turn off the power before replace, maintain or repair the lamp
4. Don't use at a higher or lower temperature than specified working temperature
-Company Profile-------------------------------------------------------------------------------------

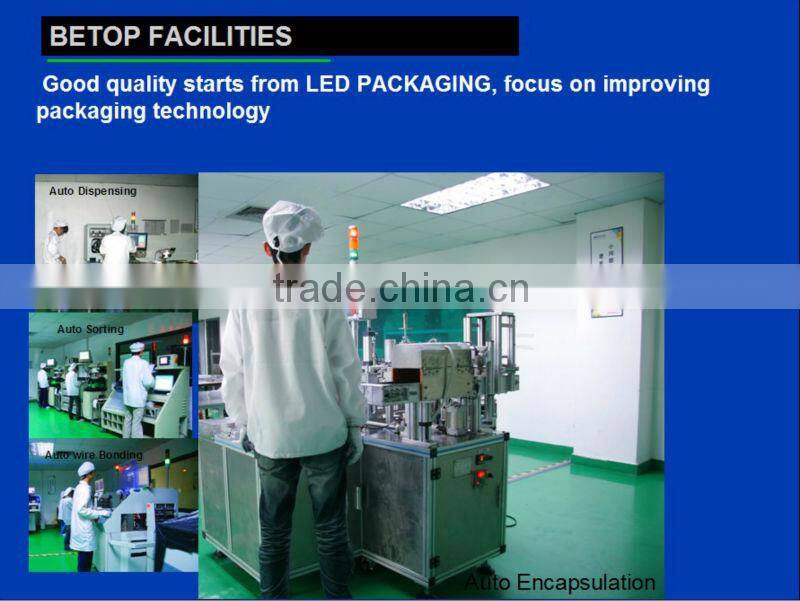

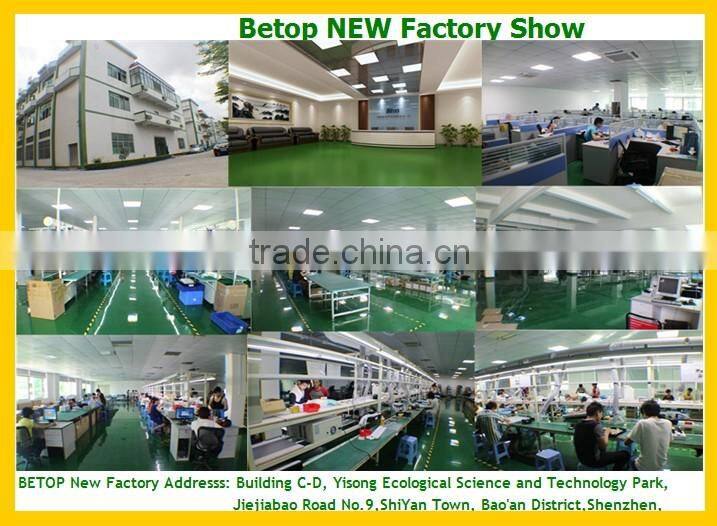

Shenzhen Betop Electronics specialized in led lighting since 2003.
