Help CenterCustom High Quality 6000 Series Aluminium Sign Profiles
Related Products
-
East-China 5 Led Aluminum Extrusion ProfileUS$ 2,800 - 3,200MOQ: 500 Kilograms -
Aluminum Profile for Led Lights WuxiUS$ 2,500 - 3,500MOQ: 1 Metric Ton
-
Haida Brand Prime/hot Sale 6063 LED Aluminum Profiles in Silver AnodizedUS$ 2,000 - 3,500MOQ: 1 Metric Ton
-
Haida Brand Prime 6063-T5 LED Aluminum Profiles in Silver AnodizedUS$ 2,000 - 3,500MOQ: 1 Metric Ton
-
Hot Sale!!!Haida Brand Prime LED Aluminum Profiles For LED Strip LED ProfileUS$ 2,000 - 3,500MOQ: 1 Metric Ton
Specifications
aluminium sign profiles,1, 44 extrusion line
2, Quality guaranteed
3, Deep process is ok
aluminium sign profiles
A).Features:
(1).35*35 suitable for 80-180w solar modules
(2).40*35 suitable for 30-120w solar modules
(3).50*35 suitable for 160-220w solar modules
(4).Many more other sizes such as: 25*35,30*35,46*40,50*35 etc, all the sizes according to customer's requierments.
Common specifications:
620*286*30mm
754*669*30mm
824*545*30mm
1200*545*35mm
B).Two types:
(1) 90°-Angle
(2)45° -Angle
C)Suface Treatment
(1). Anodizing:(Clear,silver,golden,bronze,other muiticolar.)
(2). Electrophoresis
(3). Powder,polishing,PVDF,Sandblasting,etc
Standard: GB/75237-2004,Q/320281/PDWD-2008
Certification: ISO9001:2008
Specifications: According to your design drawings and your samples
Atavantage of our products:
1.Quality-assured products, fully accredited by ISO9001 and "National Inspection-free produt".
2.The productcts are manufactured by first-class automatized equipment and and advanced quality inspection&test facilities.Die excellent accuracy up to 0.02mm.
3.High weather resistance anti scrach anticorrosion and good wearer resistance subtle edges and eligent appearance and eazy processing and installationn high brightness and hardness.
4.Wide variety of styles and sizes suitable for any tastes and budgets.
Simple detials
Material
Alloy: 6063,6061,6060,6005,etc.
Surface treatment
Mill finish, powder coating, anodizing,electrophoresis,etc.
Thickness
Above 1.0mm; recommend 1.2mm and above, customized available.
Length
Customized available.
Time of sample
10-20days, including makeing mould
Deep precessing ability
Drill holes, stretch bending, milling, welding, fabrication etc.
Ordering process:
1 Samples (0 to 7 days)
2 Drawings confirmed (1 to 3 days)
3 Die/Mould Making (7 to 10 days)
4 Samples and colour confirmed (it won't stop until you confirm it)
5 Mass production (30 to 45 days)
Production process

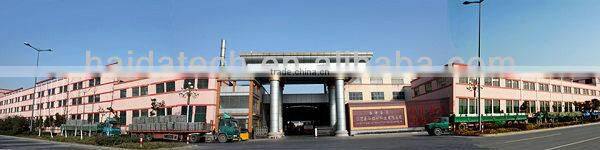

Casting Workshop
There are currently six casting furnaces,the daily output can reach 208 tons.
Mould Workshop
We can produce the mould which outside diameter from 160mm to 576mm.
Extrusion Workshop
We have 25 sets of extrusion line which are all imported from Taiwan,the detail is as below.
Extrusion press |
Quantity |
Extrusion press |
Quantity |
Extrusion press |
Quantity |
Extrusion press |
Quantity |
660UST |
4 lines |
1100UST |
10 lines |
1800UST |
1 lines |
3600UST |
1 lines |
880UST |
4 lines |
1450UST |
2 lines |
2500UST |
2 lines |
4000UST |
1 lines |
Total 25 lines,the annual over is over 100000 tons. | |||||||
Anodizing Workshop
There are many colors are available for anodized treatment,such as Silver, Champagne, Coffee, Golden, Black,etc.
Power Coating Workshop
There are three powder coating lines in our company.praying quality construction strict implementation of the United States Association of Manufacturers AAMA-605.02.90 standard.
Quality control
We have one test center.There are some professional test machines in our laboratory,such as Ntroduced spectrum analyzer from U.K.,Cimatron Section Measuring System from Shaping Articles from Israel,Xenon Weatherometer from U.S.......
