New Arrivals for 2016! Mac 1000w hub motor, 1kw ebike motor
- 30000 Piece / Pieces per Month
- Shanghai
- T/T D/P D/A
- traction motor GE761,D77/78,GE752,D29
- Maxon motor
- High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
- High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
- High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
- High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Mac | Model Number: | M12060/M12180 |
Usage: | Boat, Electric Bicycle, Home Appliance, Other, Boat, Electric Bicycle, Home Appliance, electric vehicle | Certification: | CE | Type: | Other, Brushless DC Motor |
Torque: | 30Nm-50Nm | Construction: | Permanent Magnet | Commutation: | Brushless |
Protect Feature: | Totally Enclosed | Speed(RPM): | 200-520rpm | Continuous Current(A): | 10-30A |
Output Power: | 1000W | Voltage(V): | 48 | Efficiency: | Other |
Product Description
Brief

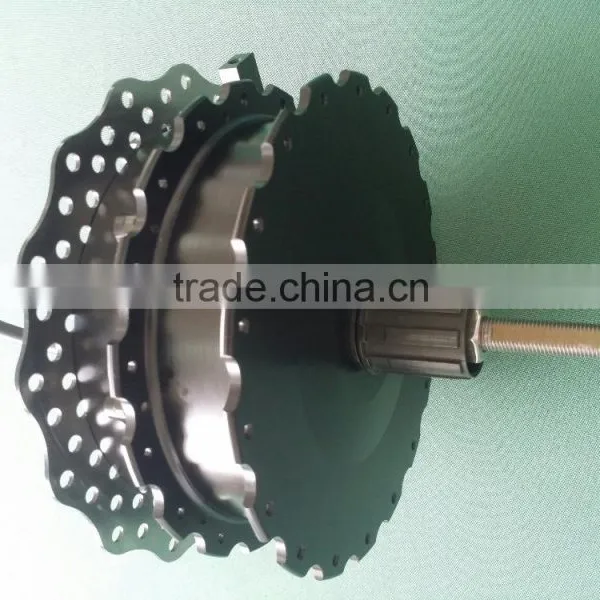

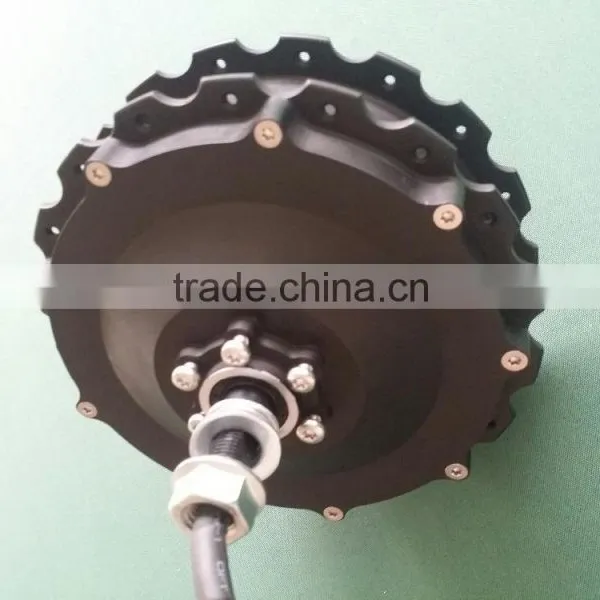

Mac 1000w hub motor, 1kw ebike motor
We offer a range of Geared Hub Motors for both front and rear wheel installation. The continuous rated output power and motor speed can be modified to customer requirements. Maximum continuous output power can be over 1000W which will produce around 50kph or 31mph max speed (higher speed can be achieved but the motor will get hot with prolonged use). Maximum input power is determined by the controller current limit, but can be 2000W. Our lower speed motors will have lower continuous output power, but can still deliver high peak power when required for strong acceleration and hill climbing ability. The motor uses a 5:1 Epicyclic reduction gear system with freewheel and has double the number of motor poles compared to typical geared hub motors on the market. Our design offers excellent motor efficiency and torque over a wide speed range that you cannot obtain with a typical Direct-Drive motor. The design also allows the motor to be smaller and lighter than a direct drive motor of equivalent power.
There are smaller and lighter Geared Hub motors on the market but they cannot come close to the power and torque that the Mac motor delivers. When not under power, the clutch in the gear system allows the rider to pedal the bicycle with little more effort than is required for a normal bicycle.
Another big advantage that our Rear Motor offers is the ability to fit both a standard Disk Brake and 7 speed freewheel within a standard rear dropout of 135mm. Very few geared or direct drive hub motors can offer this, even low powered 250W motors on the market, let alone a motor with the performance that the Mac motor offers. Many geared hub motors in the market will have an axle width of over 135mm and can only accept a 6 speed freewheel which makes it more difficult to integrate the motor into a standard bicycle and can be dangerous as alloy framed bicycles should not be bent to accommodate a larger than standards axle width. A 9 speed freewheel compatible rear motor is currently under development which can still fit within a typical bicycle frame.
Our Motors are built for performance and reliability using high quality parts and assembled with attention to detail. Our service, communication and products are amongst the best available.
Motor Spec.:
Model | M12180 | M12060 |
Rated Power(W) | 250-800 | 250-1000 |
Rated Voltage(V) | 24/36/48 | 24/36/48 |
Speed Range(rpm) | 160-520 | 160-520 |
Efficiency(%) | >80 | >80 |
Noise(dB) | <65 | <65 |
Weight(kg) | 4 | 4 |
Gear Ratio | 5:1 | 5:1 |
Usage | Front Hub motor for electric bicycle,golf cart,ATV etc. | Rear Hub motor for electric bicycle,golf cart,ATV etc. |
Features
1. High Efficiency and High Power Handling. It takes a lot to get a Mac Motor Hot!.
2. Strong acceleration and excellent climbing ability.
3. Disc Brake compatible (front and rear, model specific), 7-speed freewheel, standard 135mm axle width for rear, standard 100mm axle width for front.
4. Epicyclic Reduction Gear and High Pole Count motor system means more torque and power in a compact and lightweight package.
5. Clutch ensures effortless riding experience.
6. Long Life, Maintenance Free, replacement parts readily available with low cost and user serviceable if required.
The outline of this product:
(If you download this picture, it will be clear.)
The performance curve of this product:
(If you download this picture, it will be clear.)
The performance data of this product:
(If you download this picture, it will be clear.)
MAC offers the best price-to-performance ratio in the market. We take pride in our products and back them up with good customer service. Our Engineering team is constantly working on developing and improving our products and we have a Western Sales Manager so there are absolutely no problems with communications in English. The Management team and Key Engineering members also have a good level of English, so doing with Business with us will be easy. We are located in Pudong, only about 45mins taxi from Pudong International Airport.
We are now seeking International Distributors for our Products. If you require good quality and high performance at a reasonable price I’m sure we can meet/exceed your requirements. If you want the cheapest and barely adequate products, we may not be the right choice for you.
Thanks !
