RS550 High Torque High Rpm Air Compressor Motor

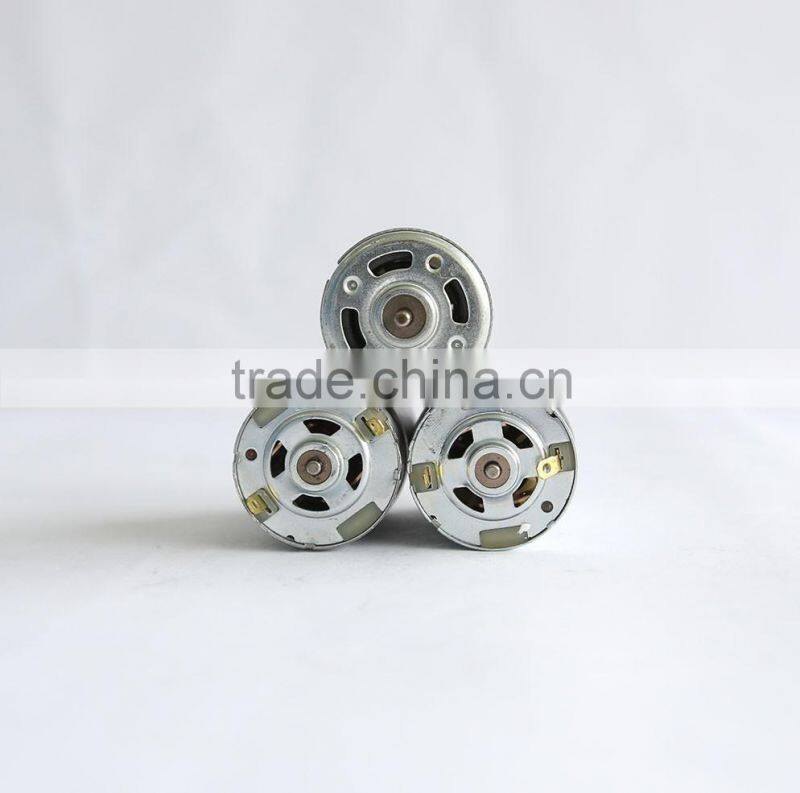

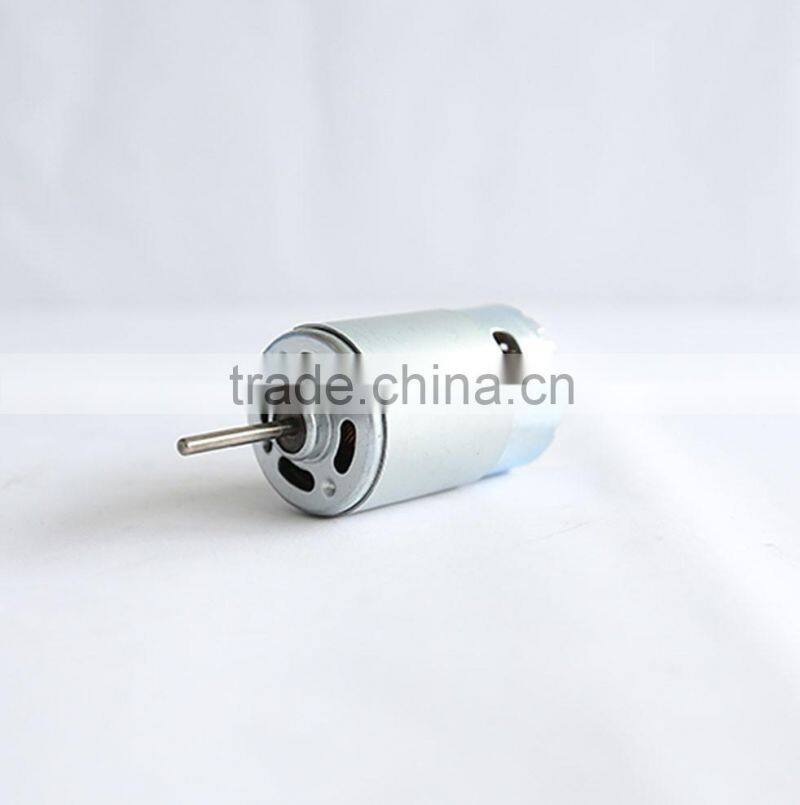

RS550 High Torque High Rpm Air Compressor Motor photo-1

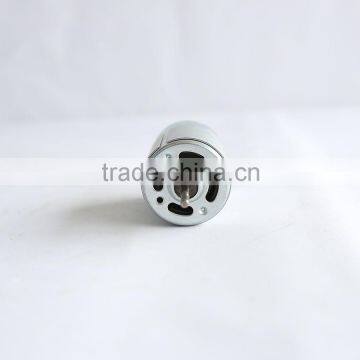

RS550 High Torque High Rpm Air Compressor Motor photo-2

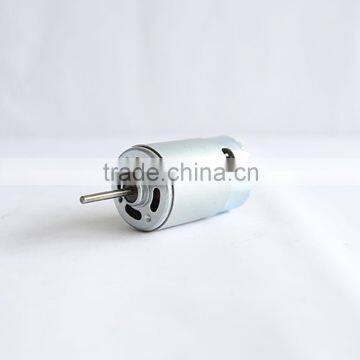

RS550 High Torque High Rpm Air Compressor Motor photo-3

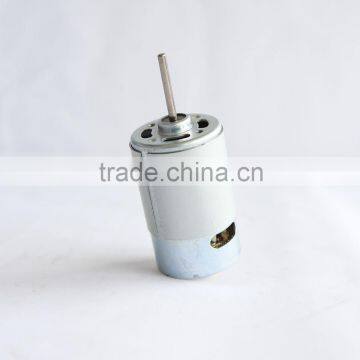

RS550 High Torque High Rpm Air Compressor Motor photo-4

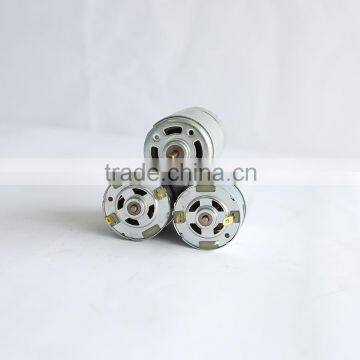

RS550 High Torque High Rpm Air Compressor Motor photo-5
RS550 High Torque High Rpm Air Compressor Motor photo-6
US$ 0.9 - 1 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
MAC Motor
Model Number:
RS-550
Payment & Shipping
Payment Methods:
Port of Shipment:
according to customers' requirement
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name MAC Motor
Model Number RS-550
Usage Fan, Home Appliance
Certification CE, ROHS
Type Other, air compressor motor, RS550 high torque high rpm air compressor motor
Torque 150-500gcm
Construction Permanent Magnet
Commutation Brush
Protect Feature Waterproof
Speed(RPM) 4300~18180r.p.m
Continuous Current(A) 0.5-16A
Output Power 12~95W
Voltage(V) 3-28v DC
Efficiency IE 4
Product Description
Product Name
R550
RS550 high torque high rpm air compressor motor, mini electric motor for fan Quality Choice.
Rated Power
12~95W
Rated Voltage
3-28v
NO-load Speed
4300~18180r.p.m
Applications
Air compressor, drill, garden tools and water pump.

The following are different models under RS-550 SERIES and their parameters, which are for reference only. We can customize parameters according to customers' requirements.

Model
Voltage
(V)
No Load
At Maxi. Efficiency
Speed
(rpm)
Current
 (A)
Speed
(rpm)
Current
(A)
Torque
(gcm)
Output
(W)
Efficiency
(%)
RS-550SH-9511
DC 3-6
18000
15200
16
350
55
2187
RS-550SH-15230
DC 12-28
5200
0
4300
0
150
7
882
RS-550SA-5036
DC 6-15
16500

14000
5
350
50
2310
RS-550SA-25200
DC 12-24
5800
0
5100
1
225
12
1864
RS-550PC-7524
DC 6-12
20600
1
18180
10
503
94
4300
Products Show
Applications
Our Company

Mac Motor is a manufacturer and developer of electric motor systems.

We have designed and manufactured brush, brushless motors and control systems for a wide range of products requiring high torque and high efficiency, including: hub, chain or belt driven BLDC systems for E-Bike, E-Scooter and other LEVs, pumps, mowers, battery powered equipment, automotive, air moving, floor care and numerous electric tools and home appliances applications. We are committed to environmentally friendly, electric powered motor system solutions.

Factory

Equipment


Workshop

Workshop


Related Products

Our Service

Complete Motor and Control System Solution.

Our products range from 3W to 3000W rated output and are well accepted by customers in North America, Europe, Australia and Asia. Our extensive range of test equipment enables us to ensure our newly developed products meet the design criteria and that our production passes QC standards. We understand that the motor is only one part of the system and always strive to offer a complete solution.


We are a customer focused organization with International Sales and Engineering team. We have the scale to provide high quality, high performance, cost effective and innovative products. We are a Foreign Invested Enterprise based in Pudong, Shanghai, only a short distance from Pudong International Airport, enabling easy factory visits and fast, reliable shipping.


We are flexible and are happy to discuss your specific requirements. We appreciate your interest in our company and look forward to a bright and greener future together.

Advanced testing equipment


Skilled technical workers


Strict quality control


Our Certification
Customer Photo
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-30 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ?

A: Yes, we could offer the sample.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
