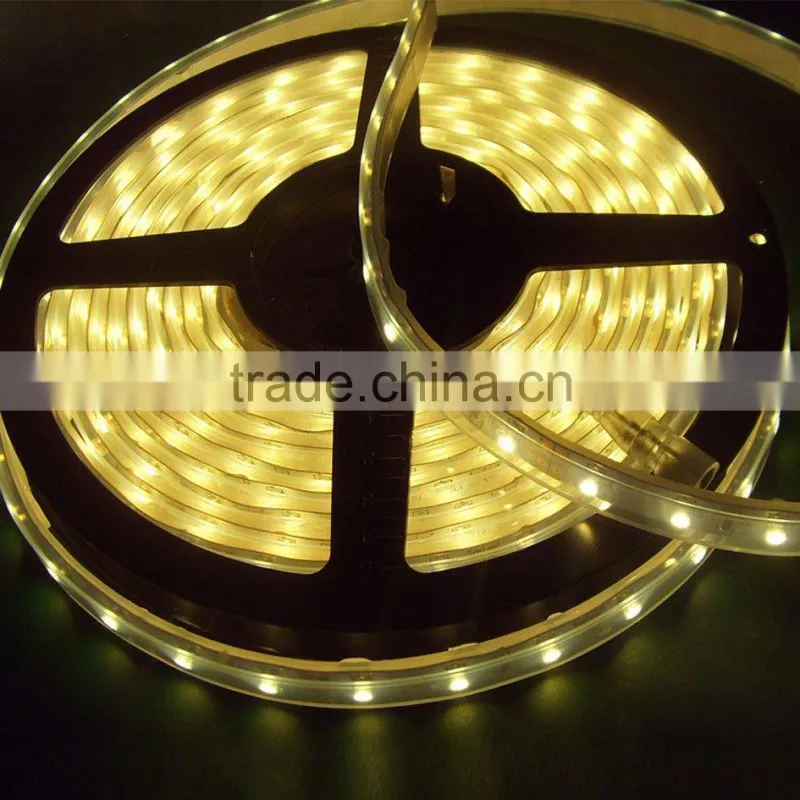

Waterproof Flexible Led Strip SMD3528 30led/m

Name: Waterproof Flexible Led Strip SMD3528 30led/m
Brand: Betop
SKU: 103272863
Availability: InStock

Negotiable MOQ: 10 Rolls (Price negotiable depending on order volume and customization)

Key Specifications

Color Temperature(CCT):

Warm White

Emitting Color:

Blue

Place of Origin:

Guangdong, China

Shenzhen Betop Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Color Temperature(CCT) Warm White

Emitting Color Blue

Place of Origin Guangdong, China

Brand Name Betop

Model Number BT-1210FX15J-12X

Specifications

1,Energy saving led strip
2,High luminance led strip
3,CE and ROHS certified led strip
4,Long lifespan led strip

Epoxy cover 1210-30 LEDS/M LED strip

BT-1210FX15J-12X

Features

² Wide applicability,easy to install and maintain, long lifespan. (warranty:1 year)

² Very flexible, easily be curved to any shape. Various colors available.

² Extremely luminous,with wide viewing angle.

² Energy saving and environmental conservation,

² Linear separable LED strip on flexible printed circuit board with self-adhesive back.

² Each unit of 3 LEDs can be cut out as a regular segment without damaging the rest ribbon.

² Cables and DC connectors is optional

² ODM/OEM is available

note

1.All dimensions are in millimeters.

2.Tolerance is ±0.25mm unless otherwise specified.

3.Lead spacing is measured where the leads emerge from the package.

4.Specifications are subject to change without notice.

Electrical/Optical Characteristics

Maximum power per meter	2.4W	Maximum current per meter	0.2A
Maximum power per roll	12	Maximum current per roll	1A
PCB thickness	0.25mm	light source	1210
PCB material	polyimide	Led quantity	3
PCB color	White/black/yellow	Maximum connection length	5m
luminescence angle	120	power connection mode	Wire or 5521DC wire
luminescence decay	less than 15%(10,000Hs)	Package Type	Lectrostatic prevention package
life span	50,000Hs	product weight	0.231kg
storage temperature	-40°C~80°C	Waterproof measure	Epoxy cover
operating humidity	30%~85%	IP grade	IP67
operating temperature	-30°C~60°C	Safety Certification	UL/CE/ROHS
